VEOLIA WATER STI
Druck™ M Range

Druck™ M Range

Product catalog summary

Overview
Druck™ Granular Media Pressure Filters are designed to remove various contaminants such as suspended solids, iron, manganese, hydrogen sulfide, chlorine, phenol, and organics, depending on the media used. They support flow rates from 0.4 to 10 m³/hr.

Features & Benefits

Steel vessels with internal epoxy coating for corrosion resistance.
Service port and detachable cover for easy maintenance access.
Manual backwashing capability.
Available in simplex and duplex configurations for flexibility.
Optional automatic air vent for air injection systems.

High Quality Media

Berkosan™ for suspended solids removal.
Berkodol™, Berkolit™ CA & Berkosplit™ for deacidification and CO2 reduction.
Berkolit™ FM & Mn for manganese, iron, and hydrogen sulfide removal.
Berkosorb™ XS for chlorine, phenol, and organics removal.

Applications

Prevention of staining and corrosion in pipework, heat exchangers, and boiler systems.
Removal of unpleasant tastes and odors.
Pre-treatment for ion exchange or membrane systems.
Post-treatment for chemical dosing.
Applicable in textiles, food & beverage industry, and irrigation.

Related Services

Local after-sales service and support teams provide preventative and corrective maintenance programs.
Optional use of Hydrex® 3000 and 6000 water treatment chemicals to enhance filtration.

Equipment Performance
The document provides detailed specifications for simplex and duplex models, including flow rates, dimensions, and connection sizes. Flow rates depend on feed water quality and media selection.

Material Specifications

Pressure vessels made of carbon steel, epoxy coated inside, primer coated outside.
Pipework made of galvanized steel.
Nozzles made of food-grade polypropylene.

Operation

Maximum operating pressure: 6 bar.
Maximum operating temperature: 40°C.

Options

Choice of high-quality media.
Manual or automatic air vents.
Air injection system (compressor, injector, control panel).

For higher flow rate applications, consult your local Veolia Water Solutions & Technologies company.

Catalog excerpts

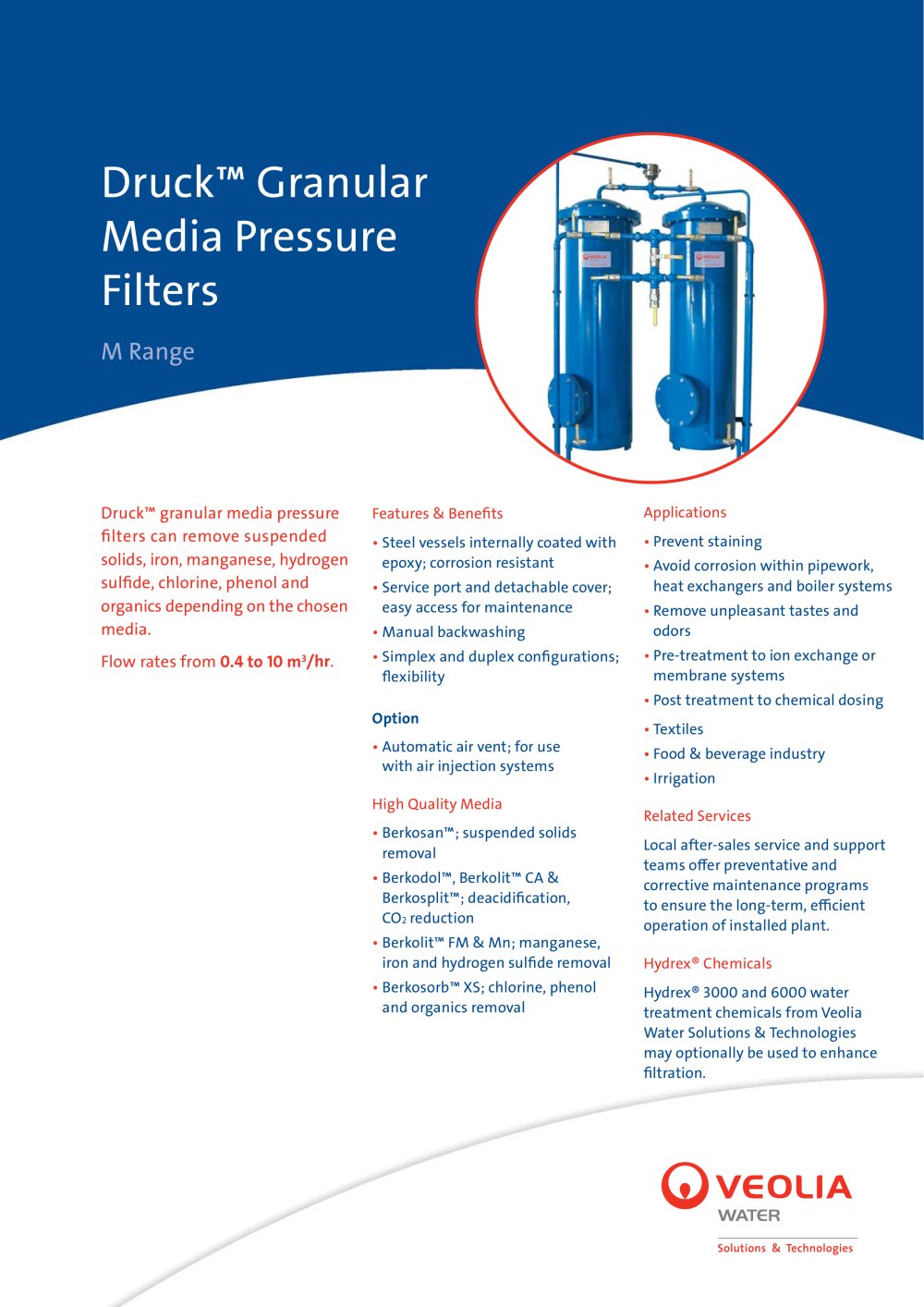

Druck™ Granular Media Pressure Filters M Range Druck™ granular media pressure filters can remove suspended solids, iron, manganese, hydrogen sulfide, chlorine, phenol and organics depending on the chosen media. Flow rates from 0.4 to 10 m3/hr. Features & Benefits .. Steel vessels internally coated with epoxy; corrosion resistant .. Service port and detachable cover; easy access for maintenance .. Manual backwashing .. Simplex and duplex configurations; flexibility Option .. Automatic air vent; for use with air injection systems High Quality Media .. Berkosan™; suspended solids removal .. Berkodol™, Berkolit™ CA & Berkosplit™; deacidification, CO2 reduction .. Berkolit™ FM & Mn; manganese, iron and hydrogen sulfide removal .. Berkosorb™ XS; chlorine, phenol and organics removal Applications .. Prevent staining .. Avoid corrosion within pipework, heat exchangers and boiler systems .. Remove unpleasant tastes and odors .. Pre-treatment to ion exchange or membrane systems .. Post treatment to chemical dosing .. Textiles .. Food & beverage industry .. Irrigation Related Services Local after-sales service and support teams offer preventative and corrective maintenance programs to ensure the long-term, efficient operation of installed plant. Hydrex® Chemicals Hydrex® 3000 and 6000 water treatment chemicals from Veolia Water Solutions & Technologies may optionally be used to enhance filtration.

Open the catalog to page 1

Visit our website: www.veoliawaterst.com In keeping with the progressive nature of the company, we reserve the right to amend details without notice. VWS CATALOGUE /Druck™ M Range/AQF0041_EN_V1.1 Druck™ Granular Media Pressure Filters Equipment Performance Model Flow Rates* Connection Width Height Depth m3/hr R (inches) mm mm mm Simplex M 350 HE 0.4 - 1.5 1 470 1745 650 M 350 AE 0.4 - 1.5 1 470 1865 650 M 400 HE 0.8 - 1.8 1 570 1630 500 M 400 AE 0.8 - 1.8 1 570 1755 500 M 450 HE 1.2 - 2.5 1 575 1765 750 M 450 AE 1.2 - 2.5 1 575 1885 750 M 550 HE 1.7 - 3.5 1 680 2070 880 M 550 AE 1.7 - 3.5 1 680...

Open the catalog to page 2
