VEOLIA WATER STI
Druck™ KF Range

Druck™ KF Range

Product catalog summary

Overview: The Druck™ Granular Media Pressure Filters in the KF Range are designed to remove various contaminants such as suspended solids, iron, manganese, hydrogen sulfide, chlorine, phenol, and organics, depending on the media used. They offer flow rates ranging from 4.2 to 94 m3/hr.

Features & Benefits: The filters are housed in steel vessels coated internally with epoxy for corrosion resistance. They feature two service ports for easy maintenance and are available in simplex and duplex configurations for flexibility. A blower connection socket allows for air/water backwashing.

Options: Available options include automatic air vents for air injection systems, a control panel for automatic backwashing, and a choice of high-quality media such as Berkosan™, Berkodol™, Berkolit™ CA, Berkosplit™, Berkolit™ FM & Mn, and Berkosorb™ XS.

Applications: These filters are suitable for preventing staining, avoiding corrosion in pipework and systems, removing unpleasant tastes and odors, and serving as pre-treatment or post-treatment in various industries including textiles, food & beverage, and irrigation.

Related Services: Veolia offers local after-sales service and support, including preventative and corrective maintenance programs. Hydrex® 3000 and 6000 water treatment chemicals can be used to enhance filtration.

Equipment Performance: The document provides detailed specifications for simplex and duplex models, including dimensions, flow rates, and connection sizes. Flow rates depend on feed water quality and media selection.

Material Specifications: Pressure vessels are made of carbon steel with epoxy coating inside and primer coating outside. Pipework is PVC, and nozzles are food-grade polypropylene.

Operation: The maximum operating pressure is 6 bar, and the maximum operating temperature is 40°C. A separate blower package is required for backwash operations. Automatic models require an electrical supply of 230/400 V, 50 Hz.

Options: Additional options include manual or automatic air vents, an air injection system, a blower package, and a control panel for automatic backwashing based on time or pressure differential.

Note: For higher flow rate applications, consultation with a local Veolia Water Solutions & Technologies company is recommended.

Catalog excerpts

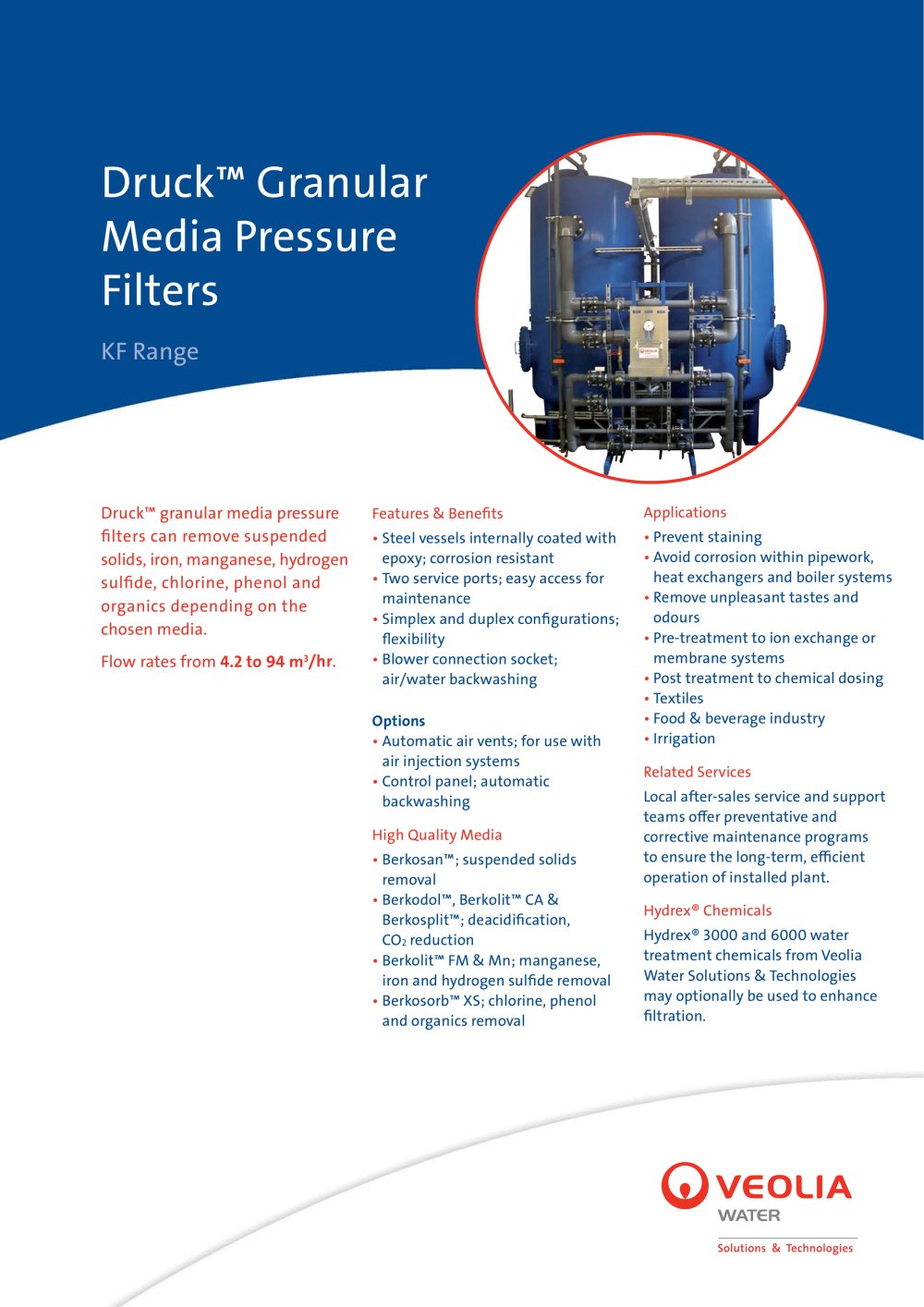

Druck™ Granular Media Pressure Filters KF Range Druck™ granular media pressure filters can remove suspended solids, iron, manganese, hydrogen sulfide, chlorine, phenol and organics depending on the chosen media. Flow rates from 4.2 to 94 m3/hr. Features & Benefits .. Steel vessels internally coated with epoxy; corrosion resistant .. Two service ports; easy access for maintenance .. Simplex and duplex configurations; flexibility .. Blower connection socket; air/water backwashing Options .. Automatic air vents; for use with air injection systems .. Control panel; automatic backwashing High Quality Media .. Berkosan™; suspended solids removal .. Berkodol™, Berkolit™ CA & Berkosplit™; deacidification, CO2 reduction .. Berkolit™ FM & Mn; manganese, iron and hydrogen sulfide removal .. Berkosorb™ XS; chlorine, phenol and organics removal Applications .. Prevent staining .. Avoid corrosion within pipework, heat exchangers and boiler systems .. Remove unpleasant tastes and odours .. Pre-treatment to ion exchange or membrane systems .. Post treatment to chemical dosing .. Textiles .. Food & beverage industry .. Irrigation Related Services Local after-sales service and support teams offer preventative and corrective maintenance programs to ensure the long-term, efficient operation of installed plant. Hydrex® Chemicals Hydrex® 3000 and 6000 water treatment chemicals from Veolia Water Solutions & Technologies may optionally be used to enhance filtration.

Open the catalog to page 1

Druck™ Granular Media Pressure Filters Equipment Performance Model Flow Rates* Connection Width Height Depth m3/hr mm mm mm Simplex KF 800 x 1500 4.2 - 7.5 DN 40 1815 2485 1425 KF 800 x 2000 5.0 - 8.0 DN 40 1815 2985 1425 KF 1000 x 2000 8.0 - 12.0 DN 50 1855 3103 1586 KF 1200 x 2000 11.0 - 17.0 DN 65 2060 3187 1835 KF 1400 x 2500 15.0 - 23.0 DN 80 2520 3795 2060 KF 1600 x 2500 20.0 - 30.0 DN 80 2650 3986 2260 KF 1800 x 2500 25.0 - 38.0 DN 100 3145 4054 2620 KF 2000 x 2500 31.0 - 47.0 DN 100 3308 4179 2738 Duplex KF 800 x 1500 8.4 - 15.0 DN 50 2745 2485 1425 KF 800 x 2000 10.0 - 16.0 DN 50 2745...

Open the catalog to page 2
