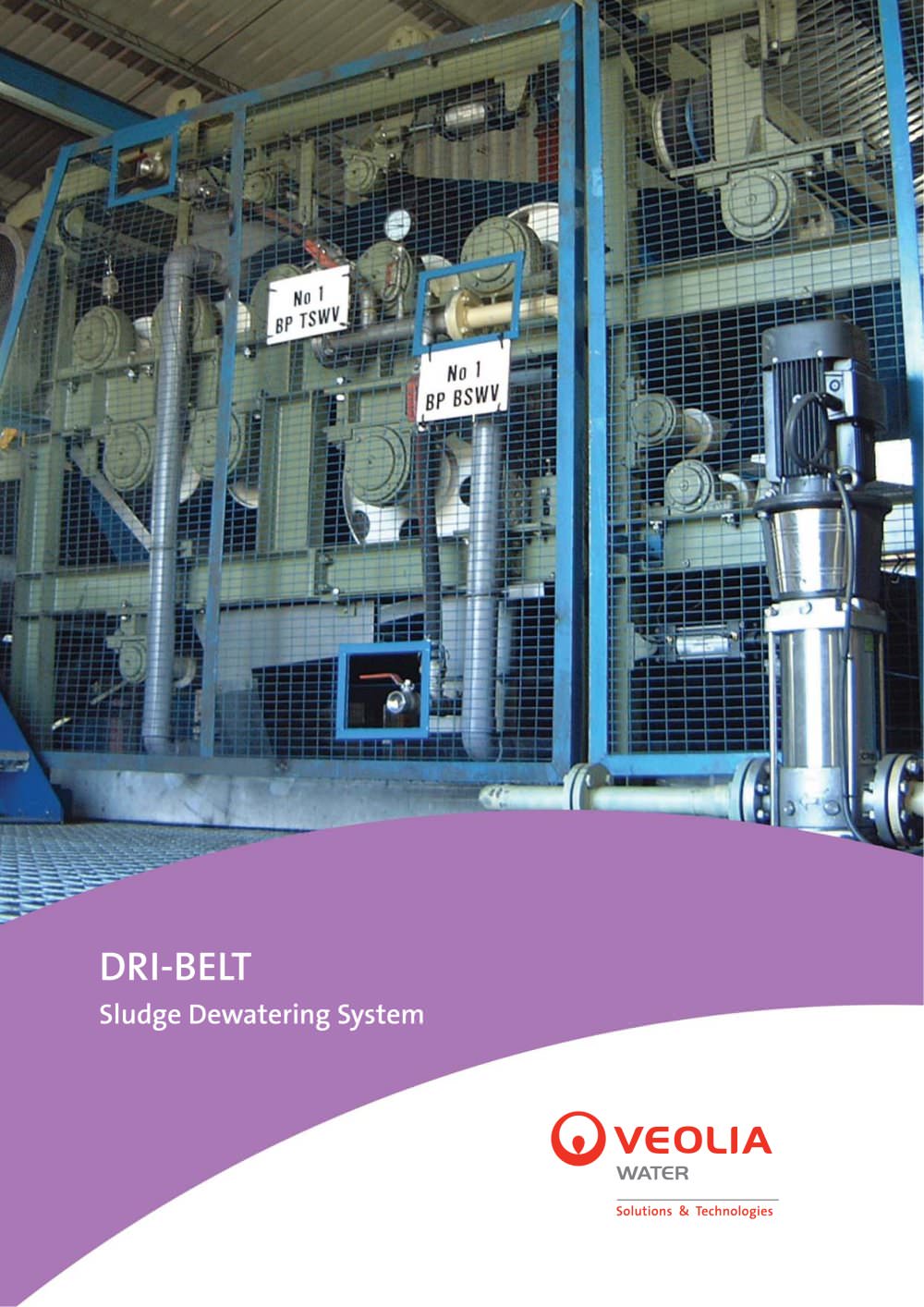

DRI-BELT Sludge Dewatering System

• The principal being to consolidate sludges into a considerably reduced volume • The overall effect is to minimise sludge quantities to give minimal handling and transportation • The Dri-Belt employs two, finely woven porous belts, through which liquid drains from the flocculated feed sludge. This thickened sludge then passes between the two belts and is compressed between rollers of decreasing diameter to give greater dewatering pressure and a dry handleable cake • The unit is compact and is contained for odour management • The Dri-Belt, is as standard, configured with two belts. For more...

Open the catalog to page 2

Technical Data Item Model Power Requirement (KW) Belt Width (mm) Overall Dimensions Installed Weight (kg) Performance The table shows generic performance levels for the Dri-Belt System given on a per metre belt width basis. Dri-Belt 500 0.4 0.4/0.75 500 4620 1080 2310 1950 Dri-Belt 650 0.4 0.4/0.75 650 4620 1230 2310 3200 Dri-Belt 1000 0.75 0.4/0.75 1000 4620 1580 2380 3200 Dri-Belt 1500 1.5 0.75 1500 4880 2170 2700 5200 Dri-Belt 2000 1.5 0.75 2000 4880 2650 2700 7300 Dri-Belt 2500 2.2 0.75 2500 4900 3340 2725 11400 Dri-Belt 3000 2.2 0.75 3000 4900 3940 2725 13500 For Driving Motor...

Open the catalog to page 3

Veolia Water Solutions and Technologies previously operated under the names of Kruger, Edwards & Jones and Mass Transfer International. VWS (UK) Ltd is accredited by Lloyds Register Quality Assurance to BS EN ISO 9001:2000 - Quality Management Systems Whittle Road Meir Stoke-on-Trent ST3 7QD England Telephone: +44 (0)1782 599000 Fax: +44 (0)1782 599001 www.veoliawaterst.co.uk
