Solar Actuator Specifications
13Pages

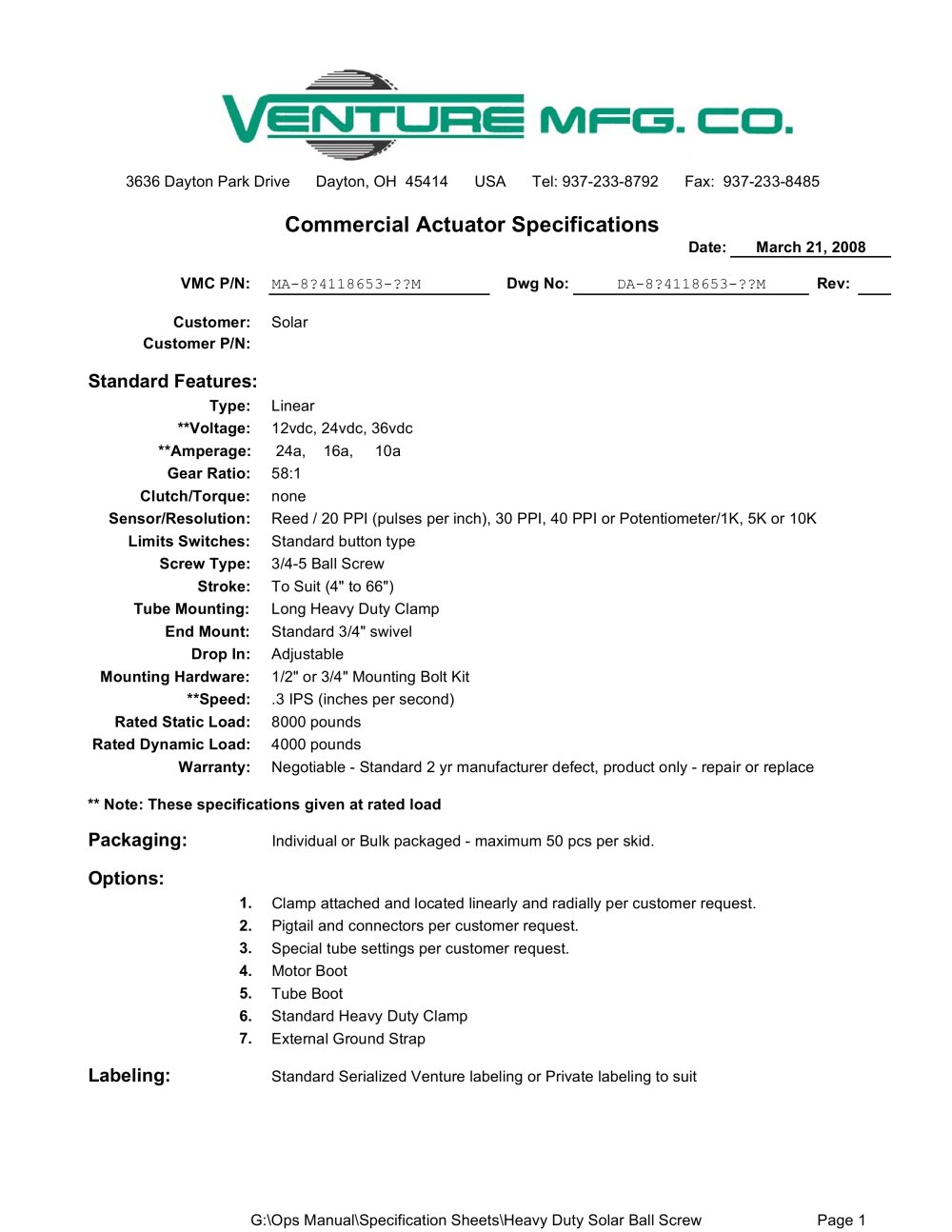

3636 Dayton Park Drive Dayton, OH 45414 USA Tel: 937-233-8792 Fax: 937-233-8485 > Date:VMC P/N: March 21, 2008 MA-8?4118653-??M Dwg No:Rev: Customer: DA-8?4118653-??M Solar Customer P/N: > Type: Linear **Voltage: 12vdc, 24vdc, 36vdc **Amperage: 24a, 16a, 10a Gear Ratio: 58:1 Clutch/Torque: none Sensor/Resolution: Reed / 20 PPI (pulses per inch), 30 PPI, 40 PPI or Potentiometer/1K, 5K or 10K Limits Switches: Standard button type Screw Type: 3/4-5 Ball Screw Stroke: To Suit (4" to 66") Tube Mounting: Long Heavy Duty Clamp End Mount: Standard 3/4" swivel Drop In: Adjustable Mounting Hardware: 1/2" or 3/4" Mounting Bolt Kit **Speed: .3 IPS (inches per second) Rated Static Load: 8000 pounds Rated Dynamic Load: 4000 pounds Warranty: Negotiable - Standard 2 yr manufacturer defect, product only - repair or replace ** Note: These specifications given at rated load > Individual or Bulk packaged - maximum 50 pcs per skid. > 1.2.3. Clamp attached and located linearly and radially per customer request.Pigtail and connectors per customer request.Motor Boot Special tube settings per customer request. 4.5. Tube Boot 6. Standard Heavy Duty Clamp 7. External Ground Strap > Standard Serialized Venture labeling or Private labeling to suit G:\Ops Manual\Specification Sheets\Heavy Duty Solar Ball ScrewPage 1 >

3636 Dayton Park Drive Dayton, OH 45414 USA Tel: 937-233-8792 Fax: 937-233-8485 > Date:VMC P/N: March 21, 2008 MA-8?4118343-??M Dwg No:Rev: Customer: DA-8?4118343-??M Solar Customer P/N: > Type: Linear **Voltage: 12vdc, 24vdc, 36vdc **Amperage: 16a, 12a, 8a Gear Ratio: 58:1 Clutch/Torque: none Sensor/Resolution: Reed / 32 PPI (pulses per inch), 48 PPI, 64 PPI or Potentiometer/1K, 5K or 10K Limits Switches: Standard button type Screw Type: Acme w/Bronze Nut Stroke: To Suit (4" to 66") Tube Mounting: Standard Heavy Duty Clamp End Mount: Standard 3/4" swivel Drop In: Adjustable Mounting...

3636 Dayton Park Drive Dayton, OH 45414 USA Tel: 937-233-8792 Fax: 937-233-8485 > Date:VMC P/N: March 21, 2008 MA-8?4118543-??M Dwg No:Rev: Customer: DA-8?4118543-??M Solar Customer P/N: > Type: Linear **Voltage: 12vdc, 24vdc, 36vdc **Amperage: 12a, 8a, 5a Gear Ratio: 58:1 Clutch/Torque: none Sensor/Resolution: Reed / 20 PPI (pulses per inch), 30 PPI, 40 PPI or Potentiometer/1K, 5K or 10K Limits Switches: Standard button type Screw Type: 5/8-5 Ball Screw Stroke: To Suit (4" to 66") Tube Mounting: Standard Heavy Duty Clamp End Mount: Standard 3/4" swivel Drop In: Adjustable Mounting...

GEARBOX TYP E ( 0 ) = NONE ( 3 ) = Raw Hsg w/o Strain Relie f > ( 4 ) = Raw Hsg w/Strain Relie f SCREW DAT A ( 5 ) = Tan Hsg w/o Strain Relie f ( 0 ) = NONE( 3 ) = 3/4-8 L.H. ACME ( 6 ) = Tan Hsg w/Strain Relie f SENSOR TYPE STANDARD MODIFIER S ( 9 ) = SPECIAL (Specify) ( 7 ) = Blk Hsg w/o Strain Relief ( 0 ) = NONE( 1 ) = REED SWITCH ( 5 ) = 5/8-5 R.H. BALL( 8 ) = Blk Hsg w/Strain Relief ( 6 ) = 560:1 WORM DRIVE LJ *** ( 6 ) = 3/4-5 R.H. BALL( 9 ) = SPECIAL (Specify) ( 2 ) = HALL EFFECT *** ( 9 ) = SPECIAL (Specify) ( 3 ) = POTENTIOMETER ( 2 ) = 28:1 GEAR DRIVE( 0 ) = NONE UNIT TYPE ( 4 ) =...
