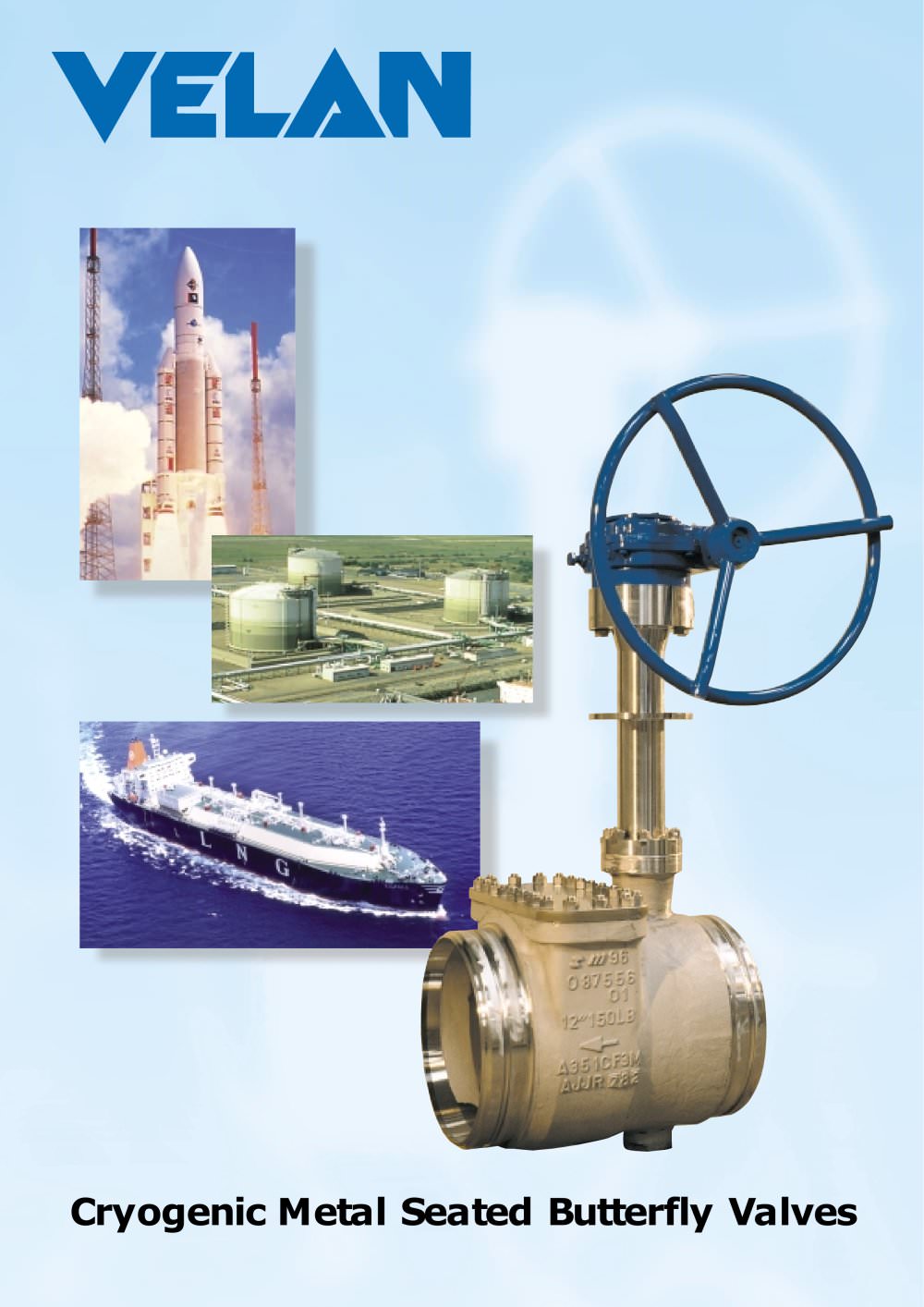

Cryogenic metal-seated butterfly valves
8Pages

Cryogenic Metal Seated Butterfly Valves >

VELAN S.A.S Located in Lyon-France, in a modern 15 000 m > 2 VELAN Inc Group plant, VELAN > S.A.S is the French subsidiary of VELANInc group. VELAN VELAN Inc is one of the world's leading independent manufacturers of steel gate, globe, check, butterfly and ball valves. Founded in 1949 in Montreal - Canada, VELAN Inc employs over 1500 people and is settled worldwide with 12 specialized manufactu- ring plants in Canada, USA, France, Portugal, Germany, UK, South Korea, Taiwan. > S.A.S is organizedaround four departments:?Cryogenic Valves & Marine? Valves for Energy ?ADAREG > TM Control Valves?...

? Actuators Pneumatic, hydraulic, electric or manual gearFast acting actuators for Emergency Shut Down function (ESD)? ? Stem Seal Extended Bonnet ? Viton O-rings ? Expanded graphite ring for "fire safe"? With a sufficient gas column to keep the stem packing away from the cold fluid? No Cavity There is no cavity to allow build-up of solids ? High Quality Castings With X-ray and PT examinations from approved foundries? In-Line Servicing Allows quick and easy in-line seat inspection or replacement within minutes? Off-Centered Disc Fire Safe Design Stainless Steel Shaft Bearings All metal...

A double spring-energized metallic O-ring seatprovides a static (1) and dynamic seal (2) as well as the inherent fire safe function. Each O-ring has a double envelope, the inner one in stainless steel, the external one in copper or nickel alloy. The spring is made of Inconel. The flexible retaining ring (3) ensures a comple- mentary contact pressure onto the disc. Thanks to a special arrangement, the tightening screws are secured by a jam nut and can't be lost inside the piping. This design allows easy and quick in-linemaintenance. Thanks to the window placed on the side of the valve, free...

? Electric actuators IEC 529 up to IP 68, motor class F? Pneumatic actuators, safety air drum optional ? Hydraulic actuators ? Manual gear box, side mounted hand wheel ? ESD function ? Positioner for control service ? Interlocks ? Limit switches ? EEX versions Typical ESD schematic > No Description 10Bulk header union11Conduit union 12Control box set13Flow control valve14Flexible conduit 15Tube & tube fitting 16Fuse plug17Lock valve No Description Qualifications & type approvals Actuators & Control > 14/2 solenoid valve24/2 manual valve33/2 manual valve 4Lubricator 5Regulator with...

References > AEROSPATIALE EADS, AIR-LIQUIDE, ALSTOM ISS, ARIANESPACE, BECHTEL, BOC-INDIA, CEGELEC, CENTRE SPATIAL DE KOUROU, CERN, CHANTIERS DE L'ATLANTIQUE, CNES, CNIM, CPC, DAELIM, DAEWOO, ETW, FOSTER-WHEELER, GAZ DE FRANCE, HANJIN, INITEC, ISRO, IZAR, KELLOG, KOREA GAS, LINDE, NFM, PETRONAS, REPSOL-ENAGAS, SAMSUNG, SHAR CENTER, SHELL TANKERS, SNECMA-SEP, SNTM-HYPROC, SOFREGAZ, SONATRACH, TECHNIGAZ ... Cryogenic Valve Range > Globe valvesOn-off, throttling serviceDN 50 (2") to 400 (16")Ball valvesTop-entry or split bodyDN 15 (1/2") to 600 (24")Control valvesDN 10 (3/8") to 400 (16")VELAN...
