Catalog excerpts

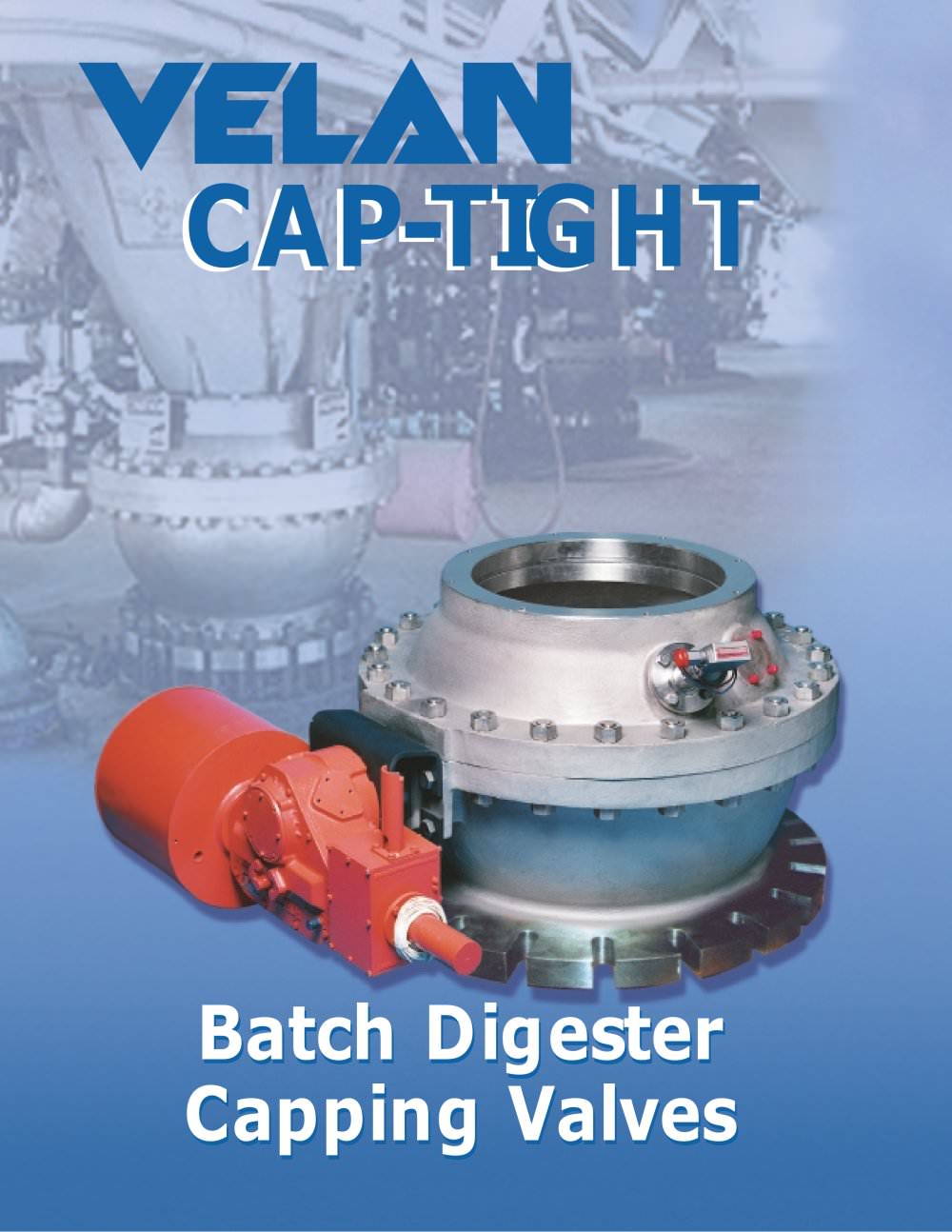

Cap-tight batch digester capping valves-1

Batch DigesterCapping ValvesBatch DigesterCapping Valves >

 Open the catalog to page 1
Cap-tight batch digester capping valves-2

PRESENTING THE NEXT GENERATION OF CAPPING VALVES Velan Cap Tight capping valves are delivering outstan- ding performance and exceptional reliability because of their unique design. They were developed by using more than 25 years of experience in the application of automated capping.These valves aremanufactured by Velan Inc., one of the world's leading manufacturers of industrial valves. The result is a superior capping valve that retains all the best features of previous designs, plus innovative solutions to old problems, at a new, lower cost to users.We believe it is thebest capping valve available,...

 Open the catalog to page 2
Cap-tight batch digester capping valves-3

The Velan design uses a fullround ball, with two seating surfaces. It's as if every valve came with a spare ball. Packing is pure braided Teflon, with an adjustable gland and a deep stuffing box. There is no cantilever ball-lifting, so no sideways force on the shaft. Our gland has a history of zero leakage. The actuator can be either pneumatic or electric, specially equipped with safety provisions to prevent accidental opening. Interlocks and torque-limiting are built into a three-part safety system. > The Stellite 6 seat is reversible. Just turn it over and you have a spare seat to go with the...

 Open the catalog to page 3
Cap-tight batch digester capping valves-5

TRIPPER AIR ESCAPE AIR ESCAPE BIN GATE AIR ESCAPETRIPPER ELBOW TRIPPER AIR ESCAPEAIR ESCAPEREVERSIBLE SCREW >

 Open the catalog to page 5
Cap-tight batch digester capping valves-6

APPLICATIONSTYLEFIGURE NUMBERREMARKS 1. CappingFull ball, full portF- 01L13-SP6KWith safety system 2. White liquorFull portF- 11S13-BC2ALocked scraper seats 3. Black liquorFull portF- 11S13-BC2ALocked scraper seats 4. Gas-offFull port, throttlingF- 11S13-BG2ASolid stellite trim 5. Top, bottom circulationFull portF- 11S13-BC2ALocked scraper seats 6. BlowFull portF- 11S13-BC2DStandard tunnel ball 7. Blow diversionFull portF- 11S13-BC2DStandard tunnel ball 8. Steam controlThrottlingF- 11M13-BC2A Spring loaded metal seat 9. Shakeup steamFull portF- 11M13-BC2A Spring loaded metal seat 10. Screen blow-backRegular...

 Open the catalog to page 6
