VXA7 Standard Crystal

Product catalog summary

Product Overview: The VXA7 Microprocessor Crystals are designed for use in various electronic applications, offering a frequency range from 1.8432 MHz to 150.00 MHz. These crystals are housed in an HC-49/U package with gull leads, measuring 13.5 mm in height.

Specifications:

Frequency Range: 1.8432 MHz to 150.00 MHz
Mode: Fundamental (1.8432 to 30 MHz), 3rd Overtone (24 to 85 MHz), 5th Overtone (<150 MHz)
Stability Options: A = ±100 PPM, B = ±50 PPM, C = ±100 PPM, D = ±50 PPM, E = ±25 PPM, F = ±30 PPM
Temperature Range: -20°C to +70°C or -40°C to +85°C
Load Capacitance: Options include 16 pF, 20 pF, 32 pF, 18 pF, 10 pF, 30 pF
Calibration Tolerance: ±25 PPM at +25°C, with tolerances to ±10 PPM available
Equivalent Series Resistance (ESR): Refer to ESR Table I
Shunt Capacitance: 7 pF Maximum
Drive Level: 10 to 1,000 uW
Aging Standard: <5 ppm/1st year

Packaging: Available in Tape & Reel with a minimum order of 1000 pieces.

Customization: Vectron International offers custom part numbers for items not listed in the standard options.

Contact Information: Vectron International, 267 Lowell Rd, Hudson NH 03051-4916. Tel: 1-88-VECTRON-1. Website: www.vectron.com

Catalog excerpts

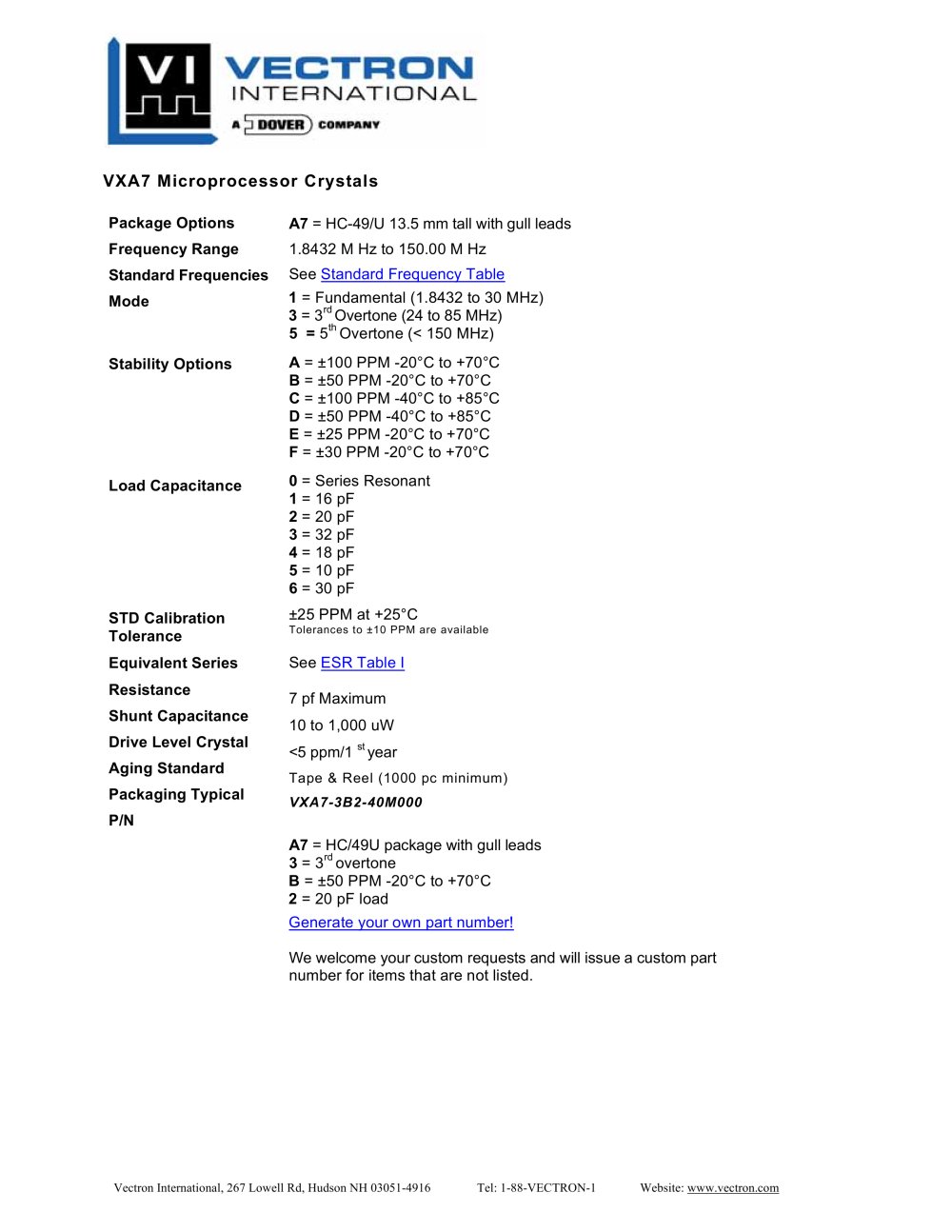

VXA7 Microprocessor Crystals A7 = HC-49/U 13.5 mm tall with gull leads 1.8432 M Hz to 150.00 M Hz See Standard Frequency Table 1 = Fundamental (1.8432 to 30 MHz) 3 = 3rd Overtone (24 to 85 MHz) 5 = 5th Overtone (< 150 MHz) A = ±100 PPM -20°C to +70°C B = ±50 PPM -20°C to +70°C C = ±100 PPM -40°C to +85°C D = ±50 PPM -40°C to +85°C E = ±25 PPM -20°C to +70°C F = ±30 PPM -20°C to +70°C 0 = Series Resonant 1 = 16 pF 2 = 20 pF 3 = 32 pF 4 = 18 pF 5 = 10 pF 6 = 30 pF ±25 PPM at +25°C Tolerances to ±10 PPM are available See ESR Table I 7 pf Maximum 10 to 1,000 uW <5 ppm/1 st year Tape & Reel (1000 pc minimum) VXA7-3B2-40M000 A7 = HC/49U package with gull leads 3 = 3rd overtone B = ±50 PPM -20°C to +70°C 2 = 20 pF load Generate your own part number! We welcome your custom requests and will issue a custom part number for items that are not listed. Package Options Frequency Range Standard Frequencies Mode Stability Options Load Capacitance STD Calibration Tolerance Equivalent Series Resistance Shunt Capacitance Drive Level Crystal Aging Standard Packaging Typical P/N Vectron International, 267 Lowell Rd, Hudson NH 03051-4916 Tel: 1-88-VECTRON-1 Website: www.vectron.com
