VS-705 Voltage Controlled SAW Oscillator (VCSO)
9Pages

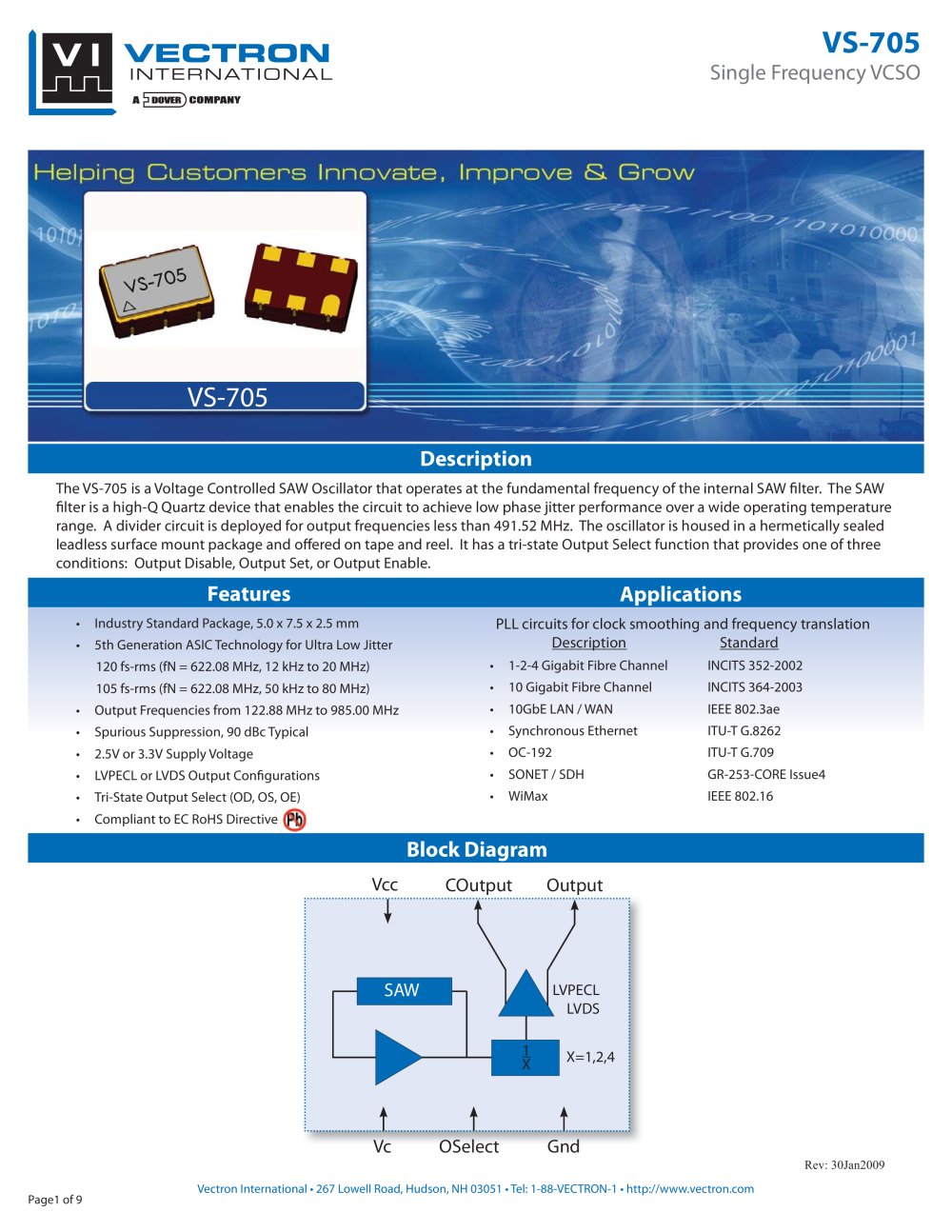

Single Frequency VCSO > Description > The VS-705 is a Voltage Controlled SAW Oscillator that operates at the fundamental frequency of the internal SAW lter. The SAW lter is a high-Q Quartz device that enables the circuit to achieve low phase jitter performance over a wide operating temperature range. A divider circuit is deployed for output frequencies less than 491.52 MHz. The oscillator is housed in a hermetically sealed leadless surface mount package and o ered on tape and reel. It has a tri-state Output Select function that provides one of three conditions: Output Disable, Output Set, or Output Enable. FeaturesApplications > Industry Standard Package, 5.0 x 7.5 x 2.5 mm 5th Generation ASIC Technology for Ultra Low JitterՕ 120 fs-rms (fN = 622.08 MHz, 12 kHz to 20 MHz) 105 fs-rms (fN = 622.08 MHz, 50 kHz to 80 MHz)Output Frequencies from 122.88 MHz to 985.00 MHz Spurious Suppression, 90 dBc TypicalՕ 2.5V or 3.3V Supply Voltage LVPECL or LVDS Output Con gurationsՕ Tri-State Output Select (OD, OS, OE) Compliant to EC RoHS DirectiveՕ PLL circuits for clock smoothing and frequency translation Description Standard 1-2-4 Gigabit Fibre Channel 10 Gigabit Fibre ChannelՕ 10GbE LAN / WAN Synchronous EthernetՕ OC-192 SONET / SDHՕ WiMax INCITS 352-2002INCITS 364-2003IEEE 802.3aeITU-T G.8262 ITU-T G.709GR-253-CORE Issue4IEEE 802.16 Block Diagram > Vcc COutputOutput VcOSelectGnd SAW LVPECLLVDSX=1,2,4 1X Rev: 30Jan2009 Vectron International Օ 267 Lowell Road, Hudson, NH 03051 Tel: 1-88-VECTRON-1 Օ http://www.vectron.com Page1 of 9 size="-4">

mVSingle Ended Swing > 2, 3 750mV-ppDi erential Swing > 2, 3 1.5V-ppCurrent > 7 Input Impedance (Output Enabled) > 7 Input Impedance (Output Disabled) > 7 Z > C 472kΩModulation Bandwidth > 7 BW200kHz Operating Temperature > 1, 3 OP -40+85C Package Size 5.0 x 7.5 x 2.5mm > 1] See Standard Frequencies and Ordering Information (Pg 8). 2] Parameters are tested with production test circuit (Pg 3). 3] Parameters are tested at ambient temperature with test limits guard-banded for speci ed operating temperature. 4] Measured as the maximum deviation from the best straight-line t, per MIL-0-55310. 5]...

Functional Test: Allows use of standard power supply biasing con guration. Pull down resistors are used for LV-PECL outputs and are removed for LVDS outputs. Since the LVDS outputs are AC coupled, the output DC levels cannots be measured. Production Test: DC levels shown for VEE, OSelect, & Vc are for devices con gured for 3.3V operation. LV-PECL outputs are DC coupled to 50Ω test equipment. LVDS outputs are connected to a digital volt meter, then AC coupled to the test equipment. The digital volt meter allows for Mid Level & Swing measurements. LV-PECL to LV-PECL: For short transmission...

Rev: 30Jan2009 Vectron International 267 Lowell Road, Hudson, NH 03051 Օ Tel: 1-88-VECTRON-1 http://www.vectron.com Page4 of 9 >

VI quali cation includes aging at various extreme temperatures, shock and vibration, temperature cycling, and IR re ow simulation. The VS-705 family is capable of meeting the following quali cation tests: Environmental Compliance ParameterConditions > Mechanical ShockMIL-STD-883, Method 2002Mechanical VibrationMIL-STD-883, Method 2007SolderabilityMIL-STD-883, Method 2003Gross and Fine LeakMIL-STD-883, Method 1014Resistance to SolventsMIL-STD-883, Method 2016Moisture Sensitivity LevelIPC/JEDEC J-STD-020, MSL1 Although ESD protection circuitry has been designed into the VS-705 proper...
