High Temperature Electronic Module Brochure.

Product catalog summary

Overview
Vectron International specializes in high-temperature electronics, offering products that operate in extreme environments. Their expertise includes hermetic packaging, which protects electronic components from contaminants and provides thermal dissipation.

Hermetic Packaging
Vectron uses metal and ceramic packages to ensure durability and protection. Metal packages involve glass-to-metal and ceramic-to-metal seals, while ceramic packages use HTCC and LTCC technologies, capable of withstanding temperatures up to 1600°C.

Applications
These electronics are designed for environments beyond the standard MIL-STD temperature range, such as deep well logging, geothermal logging, and industrial process monitoring, operating at temperatures up to 250°C.

Benefits

Increased reliability and device life
Elimination of auxiliary cooling needs
Reduced weight and size
Integration of sensors and transducers

Company Strengths
Vectron has over 50 years of experience and is part of Dover Corporation. They have a global presence with facilities equipped with state-of-the-art technology, including clean rooms and automated production lines.

Certifications
Vectron is ISO 9001, ISO 14000, QS 9000, and TS 16949 certified, ensuring high-quality standards.

Technical Capabilities
Vectron offers a range of testing and assembly processes, including wirebond pull testing, temperature testing, and hermetic sealing. They provide custom designs and work closely with customers to meet specific requirements.

Contact Information
Vectron has multiple locations worldwide, including the United States, Germany, and China, providing global support and services.

Catalog excerpts

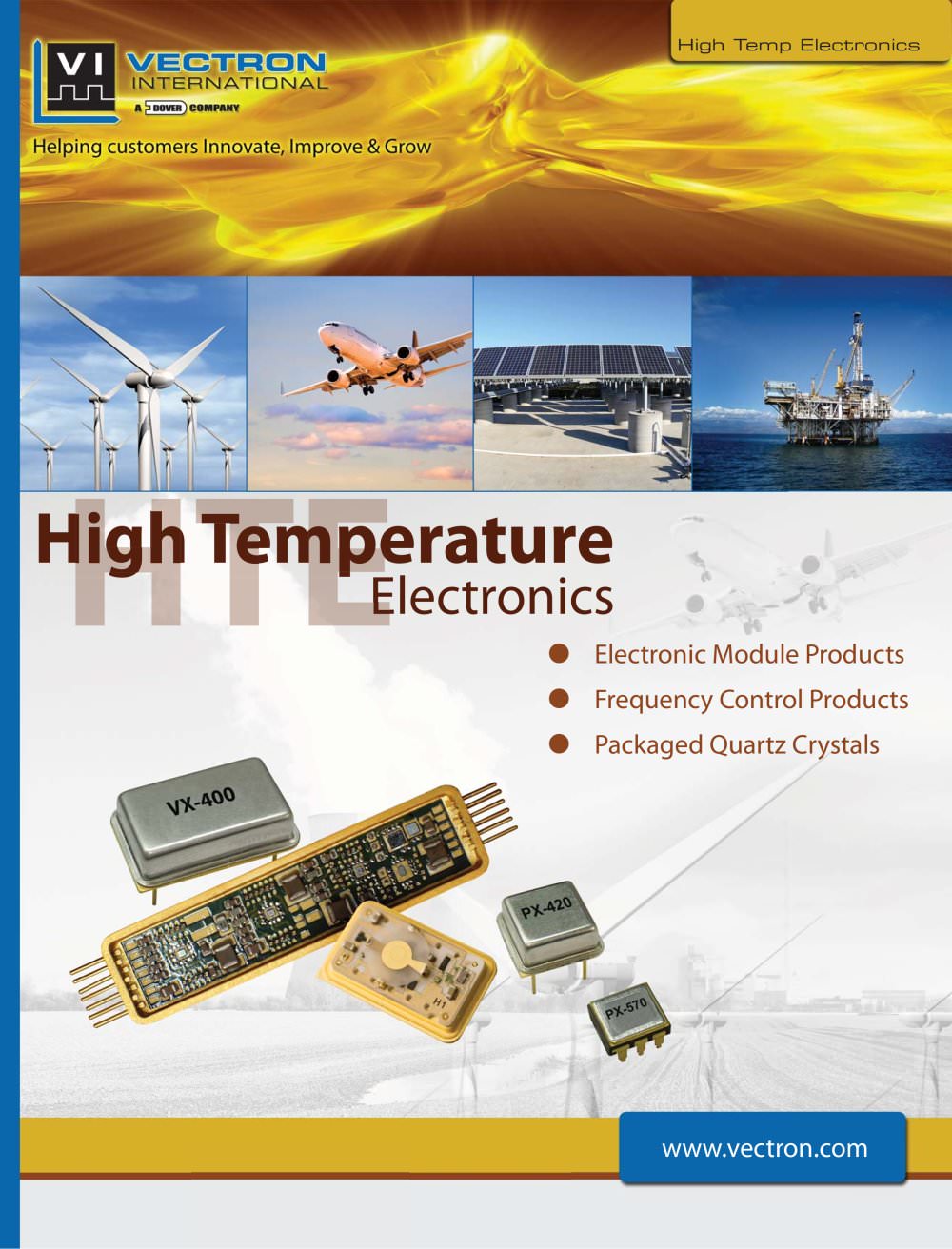

High Temperature

Open the catalog to page 1

Microelectronic circuits and components types of environments require hermetic packaging. to providing mechanical protection and a hermetic package prevents the intrusion contaminants such as moisture, ionic contaminants, particles and unwanted gases. Vectron has experience in the design ans assembly of metal hermetic packages and co-fi red ceramic Metal Package: Glass-to-metal seal and ceramic- seal are the common choices to produce packages. Typical metal enclosures are formed deep drawing, brazing, photochemical etch The package sealing methods include projection seal, cold weld, laser weld...

Open the catalog to page 2

High Temperature Electronic Module Brochure.-3

Our Strengths High Temp Electronics Vectron International has sales of over $200 million annually. With more than 50 years experience in custom design and maufacturing of microelectronics, Vectron provides a blend of hybrid, thin and thick fi lm expertise and skill not common in the industry today. As part of Dover Corporation, Vectron has continued to build global maufacturing capabilities to include technical professionals at 6 locations world-wide. Vectron’s staff are experts in Hybrid, High Temperature, Harsh Environment Electronics, multi-Chip Modules, Oscillator, SAW and Crystal design....

Open the catalog to page 3

High Temperature Electronic Module Brochure.-4

High Temp Electronics Vectron International VI Hudson, Corporate Headquarters 267 Lowell Road Hudson, NH 03051 Tel: 1.888.328.7661 Fax: 1.888.329.8328 VI Mount Holly Springs 100 Watts Street Mount Holly Springs, PA 17065 Tel: 1.717.486.3411 Fax: 1.717.486.5920 VI Cincinnati 4914 Gray Road Cincinnati, OH 45232 Tel: 1.513.542.5555 Fax: 1.513.542.5146 VI Neckarbischofsheim Landstrasse, D-74924 Neckarbischofsheim, Germany Tel: +49 (0) 7268.8010 Fax: +49 (0) 7268.801281 VI Teltow Potsdamer Strasse 18 D-14513 Teltow, Germany Tel: +49 (0) 3328.4784.17 Fax: +49 (0) 3328.4784.30 VI Shanghai 1F-2F, No...
