FX-702 Frequency Translation

FX-702 Frequency Translation
7Pages

Catalog excerpts

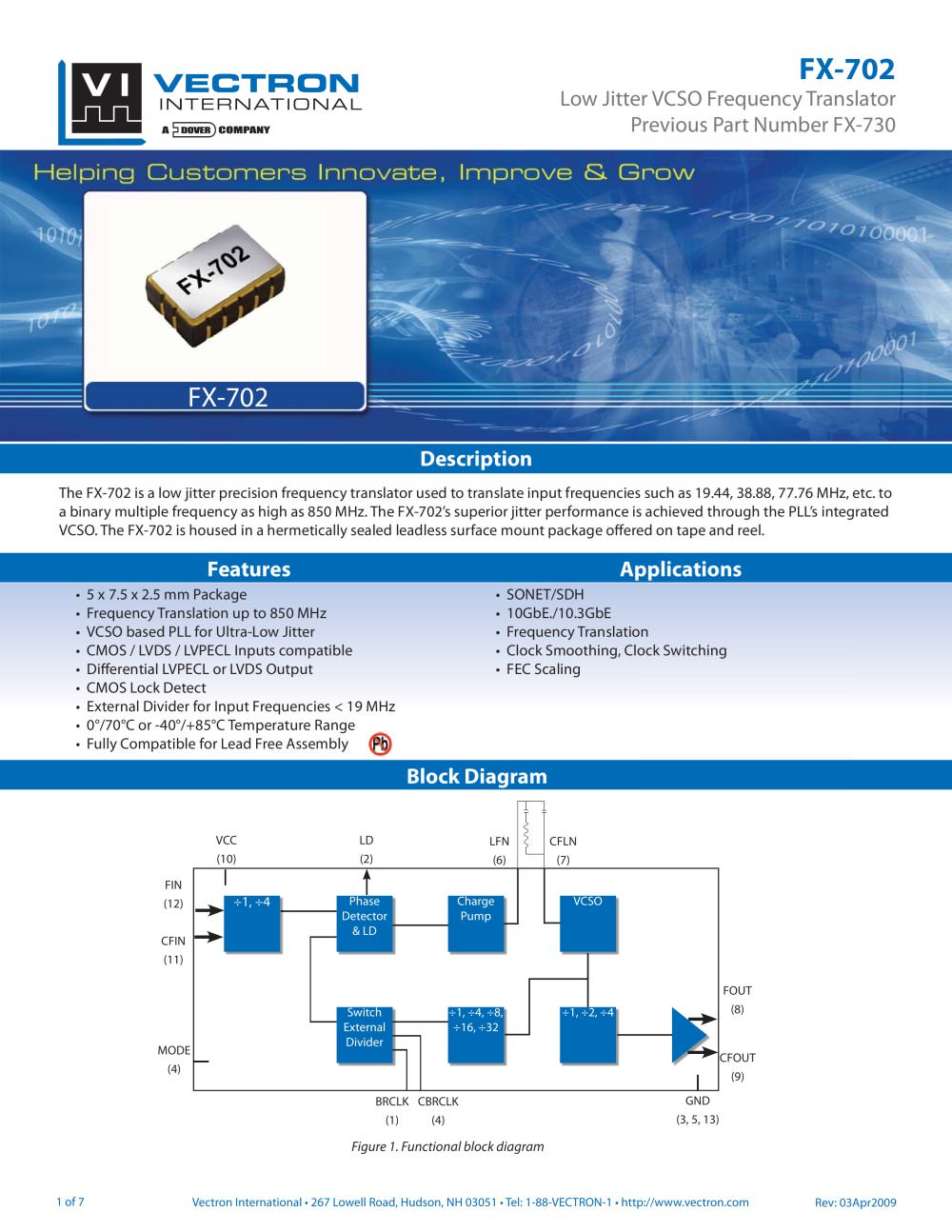

Phase Detector & LD Charge Pump VCSO Switch External Divider 緷1, 4, 8, 緷16, 32 1, 緷2, 4 > 1 of 7 Vectron International 267 Lowell Road, Hudson, NH 03051 畕 Tel: 1-88-VECTRON-1 http://www.vectron.comRev: 03Apr2009 >

Open the catalog to page 1

Power SupplyV > CC 0 to 6VInput CurrentI > IN 100mAOutput CurrentI > OUT 25mAStorage TemperatureT > STR -55 to 125CSoldering Temperature/DurationT > PEAK /t > P 260 / 40C/sec > Mechanical ShockMIL-STD-883, Method 2002Mechanical VibrationMIL-STD-883, Method 2007 SolderabilityMIL-STD-883, Method 2003 Gross and Fine LeakMIL-STD-883, Method 1014Resistance to SolventsMIL-STD-883, Method 2016 Moisture Sensitivity Level RatingMSL 1 > Human Body Model22000 VMIL-STD 883, Method 3015Charged Device ModelC51000 VJEDEC, JESD22-C101 Machine ModelM3200 VESD STM5.2-1999 > 3 of 7 Vectron International 267...

Open the catalog to page 3

1. It is recommended that a bu er driver is used for best noise isolation.2. Do not leave the MODE pin oating, it should be set to logic 0 or ground for normal operation. 3. BRCLK and CBRCLK should be left oating if not used.4. FIN, CFIN, BRCLK, and CBRCLK have internal pull-up/pull-down resistors and it is recommended to AC couple these inputs. Vectron International ѕ 267 Lowell Road, Hudson, NH 03051 Tel: 1-88-VECTRON-1 Օ http://www.vectron.comRev: 03Apr2009 5 of 7 >

Open the catalog to page 5

Product Family FX: Frequency Translator Output Frequency (See Above) Input Frequency (See Above) Package 702: 5.0 x 7.5 x 2.0mm Prescaler A: 1 C: 4M: Factory Set Input E: 3.3 Vdc 10% Output C: LVPECL D: LVDS Output 2 Divider M: Factory Set Feedback Divider L: Disable M: Factory Set Operating Temperature E: -40 to 85 ѰC T: 0 to 70 C Absolute Pull Range H: б 32 ppm K: 50 ppm S: ѱ 100 ppm > 1, Not all combinations are possible. Please consult with your Vectron representative for application assistance. Other frequencies available upon request2, When ordering the FX-702 with the external...

Open the catalog to page 7
