EX-200 Evacuated Miniature Crystal Oscillator (EMXO)

Product catalog summary

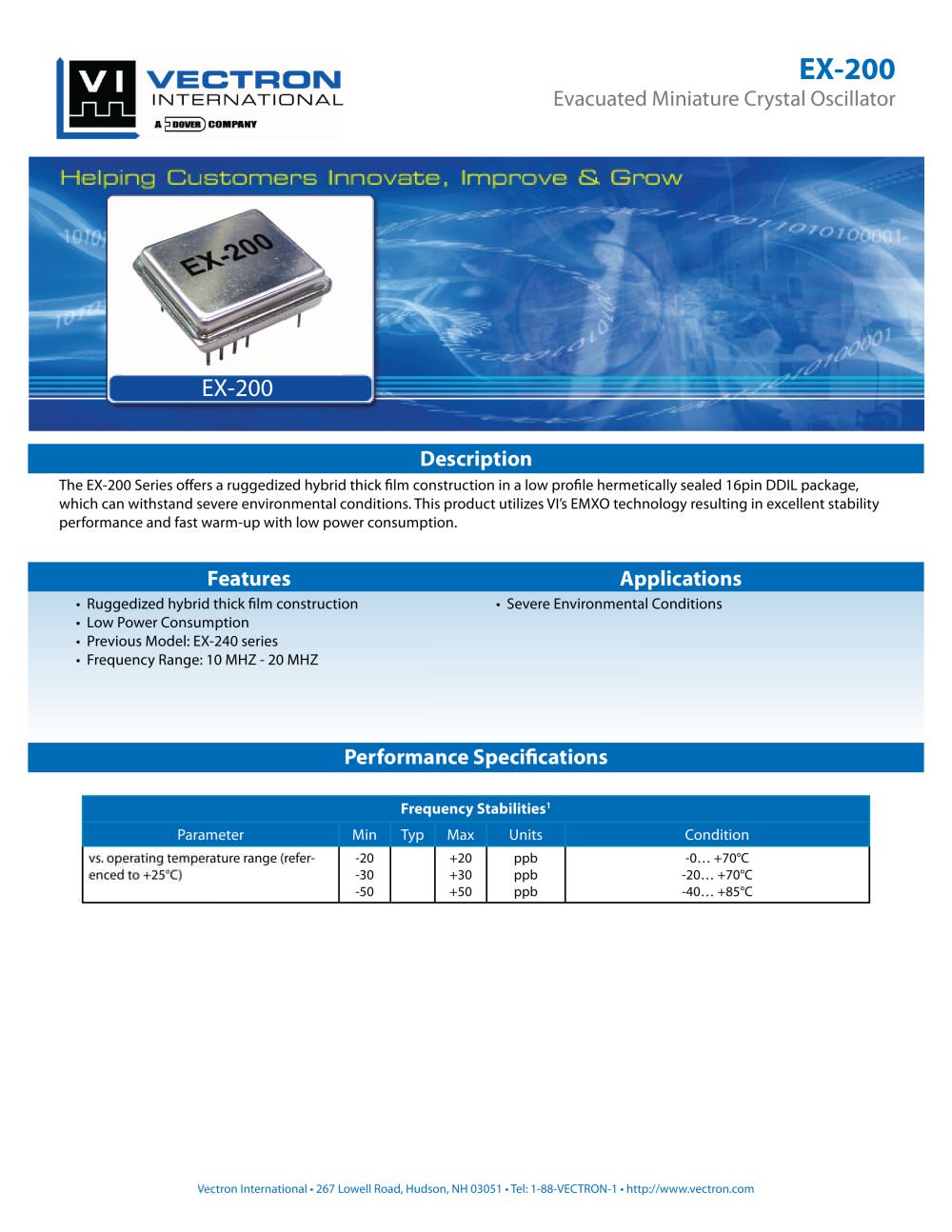

Overview: The EX-200 Series is a ruggedized miniature crystal oscillator designed for severe environmental conditions. It features a hybrid thick film construction in a hermetically sealed 16-pin DDIL package, utilizing Vectron International's EMXO technology for excellent stability and low power consumption.

Specifications:

Frequency Range: 10 MHz - 20 MHz
Frequency Stability: Ranges from ±20 ppb to ±50 ppb depending on temperature conditions (-40°C to +85°C)
Initial Tolerance: ±1.0 ppm at time of shipment
Supply Voltage: Standard 5 VDC, optional 3.3 VDC
Power Consumption: 2.5 Watts during warm-up, 0.7 Watts steady state at +25°C
RF Output: HCMOS or Sinewave with various load and power options
Phase Noise: Ranges from -100 dBc/Hz at 10 Hz to -150 dBc/Hz at 100 KHz

Environmental Conditions:

Mechanical Shock: MIL-STD-202, Test Method 213, Condition E
Vibration Random: MIL-STD-202, Test Method 214, Condition I-H
Vibration Sine: MIL-STD-202, Test Method 204, Condition D
Thermal Shock: MIL-STD-202, Test Method 107, Condition A-2

Applications: Suitable for use in environments requiring high stability and low power consumption under severe conditions.

Ordering Information: The product can be customized based on package size, height, supply voltage, stability code, frequency, frequency control, RF output code, and temperature range.

Contact Information: Vectron International provides contact details for their offices in the USA, Europe, and Asia for further inquiries.

Catalog excerpts

EX-200 Evacuated Miniature Crystal Oscillator (EMXO)-3

CodeHeight HӔPin Length LӔ00.350.17Ԕ > 1EFC \ No Connect2 - 4No Connect8Ground (Case) 9RF Output13 - 15No Connect16Supply Voltage Input Dimensions in inches > Vectron International 267 Lowell Road, Hudson, NH 03051 Օ Tel: 1-88-VECTRON-1 http://www.vectron.com size="-1">

Open the catalog to page 3

EX-200 Evacuated Miniature Crystal Oscillator (EMXO)-4

Frequency Product FamilyEX: EMXO Frequency Control 0: Fixed Frequency (HCMOS) 1: Fixed Frequency (0 dBm) 2: Fixed Frequency (+3 dBm) 3: Electrical Tuning (HCMOS) 4: Electrical Tuning (0 dBm) 5: Electrical Tuning (+3 dBm) Package 25 x 25 mm Height 0: A0.35 Stability Code 208: Ա20ppb 308: 30ppb 508: ѱ50ppb Supply Voltage D: 5 Vdc E: 3.3 Vdc RF Output Code A: HCMOS E: Sinewave Temperature Range E: -40C to +85аC J: -20C to +70аC T: 0C to +70аC Notes: Contact factory for improved stabilities or additional product options. Not all options and codes are available at all 1. frequencies.Unless other stated...
