VTH 8

Product catalog summary

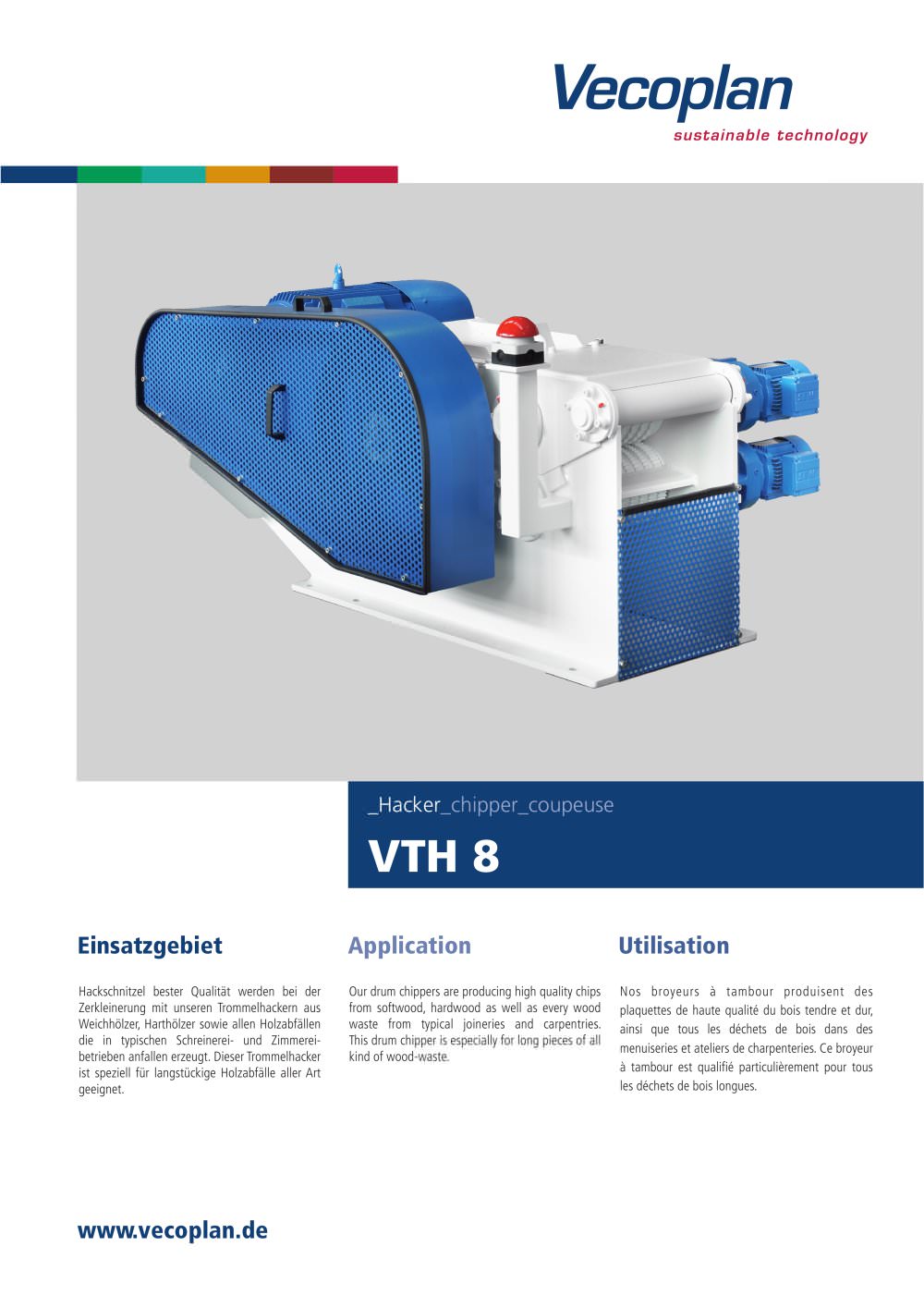

Overview: The document provides technical specifications and application details for the VTH 8 drum chipper, a machine designed for producing high-quality wood chips from various types of wood waste, including softwood, hardwood, and long wood pieces typically found in joineries and carpentries.

Specifications:

Intake Opening: 325 x 80 mm for VTH 35/8/2, 425 x 80 mm for VTH 45/8/2, and 525 x 80 mm for VTH 55/8/2.
Number of Infeed Rollers: 2 for all models.
Rotor Diameter: 300 mm for all models.
Number of Tools: 2 for all models.
Rotor Speed: Approximately 670 - 2100 rpm.
Chipping Length: 3 - 30 mm, depending on infeed material and screen hole diameter.
Weight: Approximately 890 kg for VTH 35/8/2, 1100 kg for VTH 45/8/2, and 1500 kg for VTH 55/8/2.
Capacity: Maximum throughput of 2 - 4 rm/h.
Drive Power: 22 - 30 kW for VTH 35/8/2 and VTH 45/8/2, 22 - 37 kW for VTH 55/8/2.

Additional Features: The chipper is available with an alternative cutting tool rotor. Technical alterations are reserved, and specifications may vary based on the material and screen hole diameter.

Contact Information: Vecoplan AG, Vor der Bitz 10, 56470 Bad Marienberg, Tel.: +49 (0) 26 61.62 67-0, Fax: +49 (0) 26 61.62 67-70, Email: [email protected], Website: www.vecoplan.de
