VTH 20
1 / 2 PagesView full catalog
VTH 20
Product catalog summary

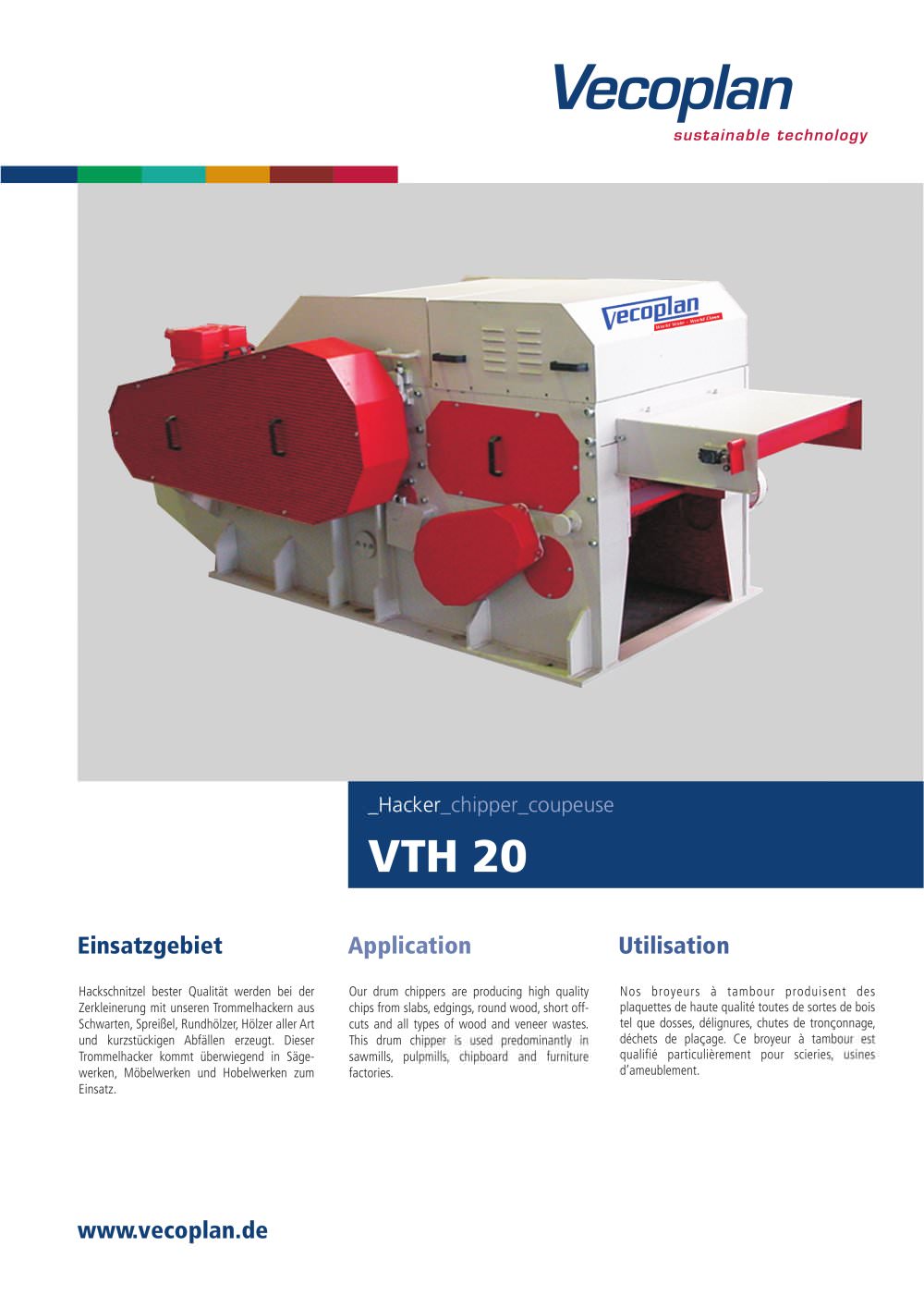

Overview: The VTH 20 drum chipper by Vecoplan is designed for producing high-quality wood chips from various wood types and waste materials. It is primarily used in sawmills, pulpmills, chipboard, and furniture factories.
Specifications:
- Intake Opening: 450 x 200 mm to 850 x 200 mm
- Number of Infeed Rollers: 3
- Rotor Diameter: 600 mm
- Number of Tools: 2-4
- Rotor Speed: 730-930 rpm
- Chipping Length: 3 - 30 mm (dependent on material and screen hole diameter)
- Weight: 3000 kg to 4200 kg
Performance:
- Maximum Capacity: 20 to 30 rm/h
- Drive Power: 37 - 90 kW
Design Features:
- Side and top views are provided for better understanding of the machine layout.
- Technical alterations are reserved, indicating potential updates or changes in specifications.
Contact Information: Vecoplan AG, Vor der Bitz 10, 56470 Bad Marienberg, Tel.: +49 (0) 26 61.62 67-0, Email: [email protected], Website: www.vecoplan.de
