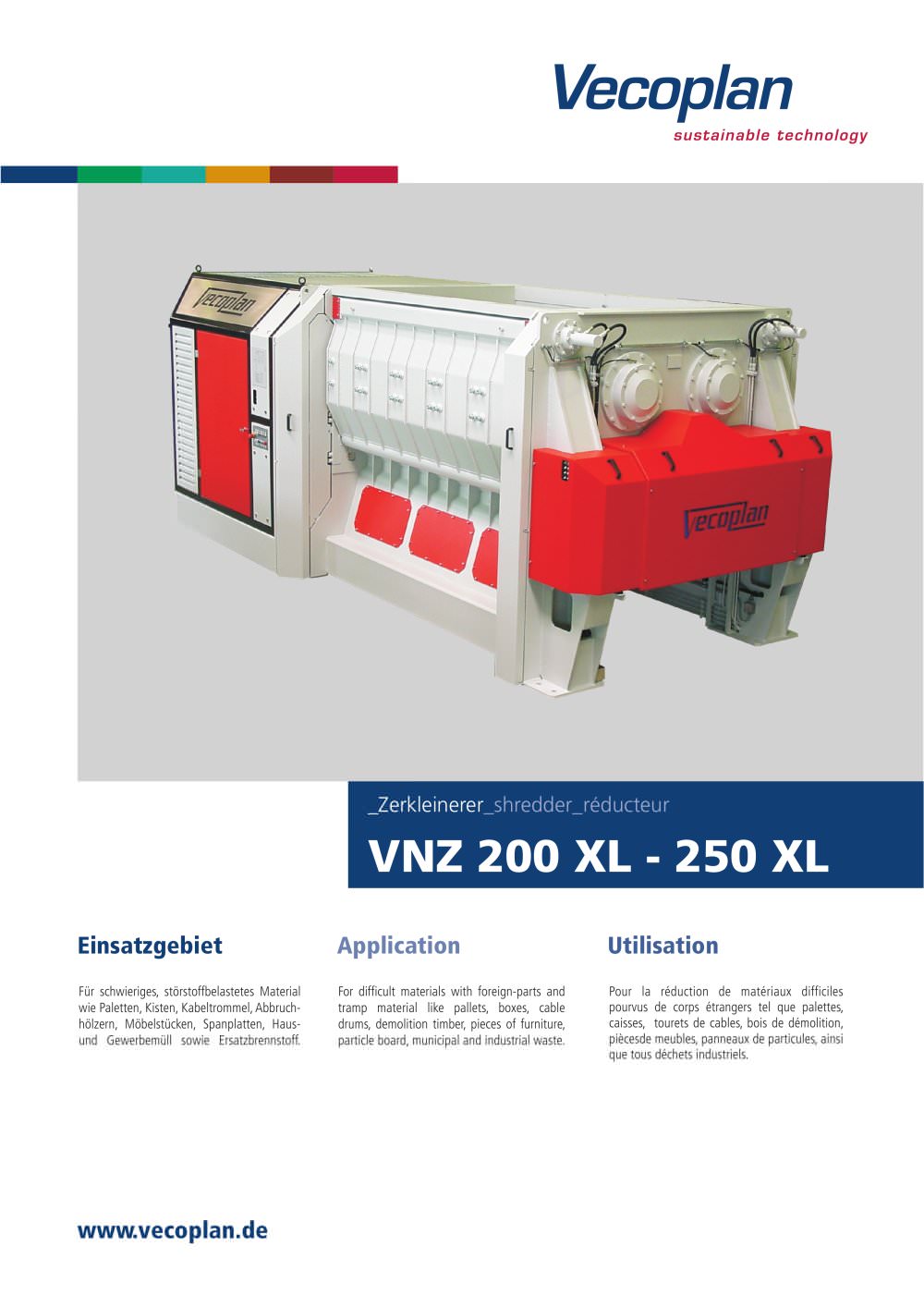

VNZ 200 XL - 250 XL

Product catalog summary

Application and Usage: The VNZ 200 XL - 250 XL shredders are designed for processing difficult materials that may contain foreign objects. These include pallets, boxes, cable drums, demolition timber, furniture pieces, particle board, and both municipal and industrial waste.

Technical Specifications:

Intake Opening: The intake opening dimensions are specified for both models, with the VNZ 200 XL having an opening of 2000 x 1600 mm and the VNZ 250 XL having an opening of 2492 x 1600 mm.
Rotor Dimensions and Speed: Both models feature a rotor size of 2 x 640 mm, with the VNZ 200 XL having a length of 2000 mm and the VNZ 250 XL having a length of 2492 mm. The rotor speed is approximately 165 rpm.
Tool Count: The VNZ 200 XL is equipped with 48 or 62 tools, while the VNZ 250 XL has 60 or 76 tools.
Capacity: The throughput capacity ranges from 5 to 25 tons per hour for the VNZ 200 XL and 6 to 30 tons per hour for the VNZ 250 XL, depending on the infeed material and screen hole diameter.
Drive Power: The drive power for the VNZ 200 XL is 2x132 or 2x160 kW, and for the VNZ 250 XL, it is 2x160 or 2x200 kW.
Weight: The approximate weight is 22.5 tons for the VNZ 200 XL and 26.5 tons for the VNZ 250 XL.
External Dimensions: The external dimensions are 551x278x230 cm for the VNZ 200 XL and 600x278x230 cm for the VNZ 250 XL.

Contact Information: Vecoplan AG, Vor der Bitz 10, 56470 Bad Marienberg, Tel.: +49 (0) 26 61.62 67-0, Fax: +49 (0) 26 61.62 67-70, Email: [email protected], Website: www.vecoplan.de
