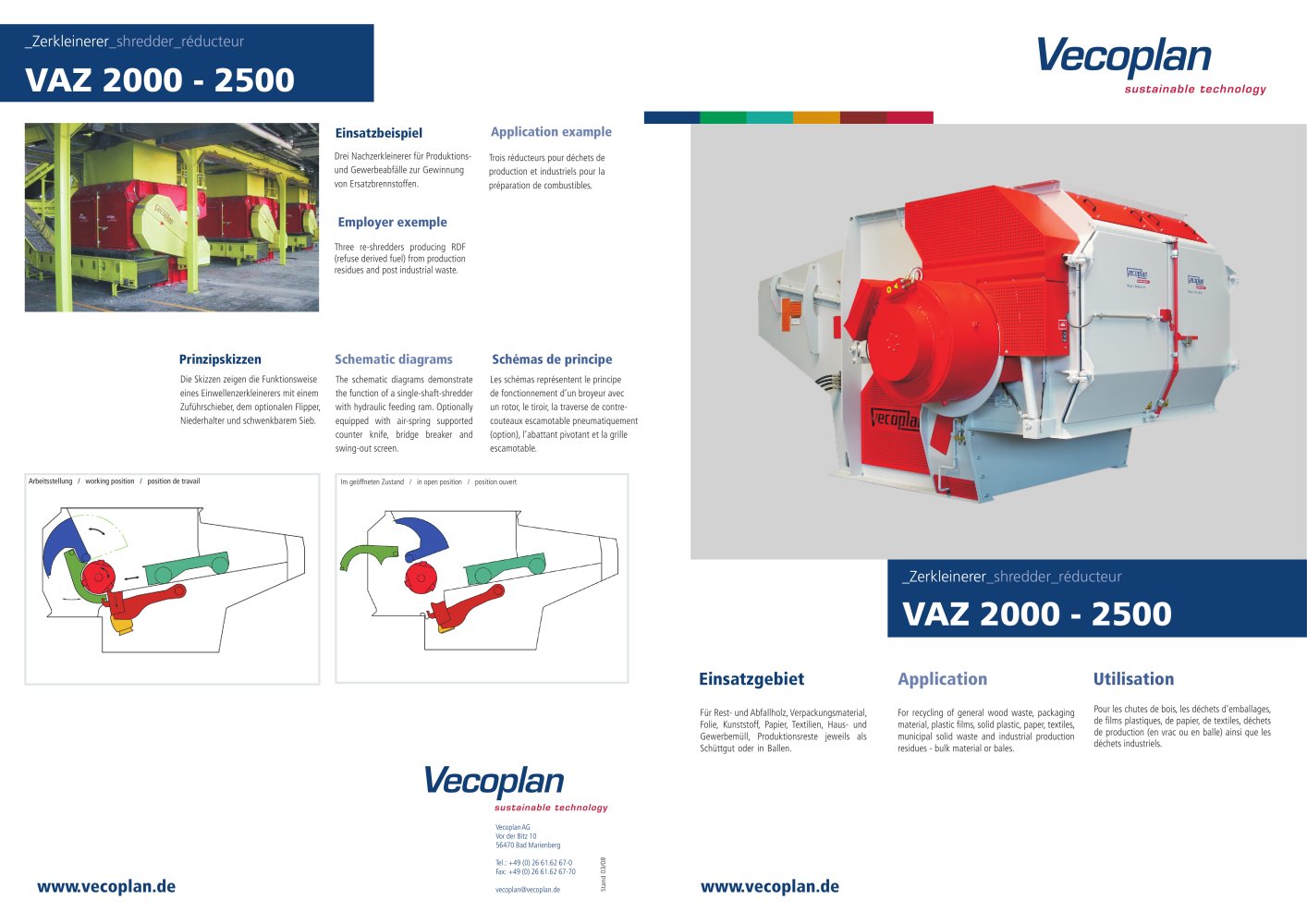

VAZ 2000 - 2500

Product catalog summary

Application and Usage: The VAZ 2000 - 2500 shredders are designed for recycling various materials including wood waste, packaging materials, plastic films, solid plastics, paper, textiles, municipal solid waste, and industrial production residues. These materials can be processed as bulk material or in bales.

Specifications: The shredders feature a single-shaft design with a rotor diameter of 640 mm. They offer selectable particle sizes ranging from approximately 10 to 250 mm and a throughput capacity of up to 25 tons. The material feeding system is hydraulic, and the machines include multiple protection devices against tramp material.

Driving System Variants: The shredders are available with different driving systems:

Standard: Constant rotor speed of 150 rpm with an electric motor, cardan shaft, fluid coupling, and reduction gear.
HiTorc: Variable rotor speed of approximately 0-360 (410) rpm with an energy-saving system. This system allows for automatic speed control, increasing throughput by up to 70% and saving up to 60% of electric energy.
Direct Drive: Constant rotor speed of 410 rpm with an electric motor and belt drive, featuring a slip-controlled safety clutch.

Patented Rotor System: The shredders use a profiled rotor with a toothed counter knife, patented by Vecoplan. Users can choose between concave crown cutters or flat cutters in sizes of 40, 60, 80, or 140 mm, with options for single or double rows of cutters.

Additional Options: Additional features such as bridge breakers, tramp metal protection devices, and various drive system variants are available. Detailed machinery specifications and options can be found in the main brochure.

Dimensions and Weight: The document provides detailed dimensions and weight specifications for different models, including VAZ 2000 S, M, L, and VAZ 2500 S, M, L, with maximum weights ranging from 16,000 to 24,000 kg.
