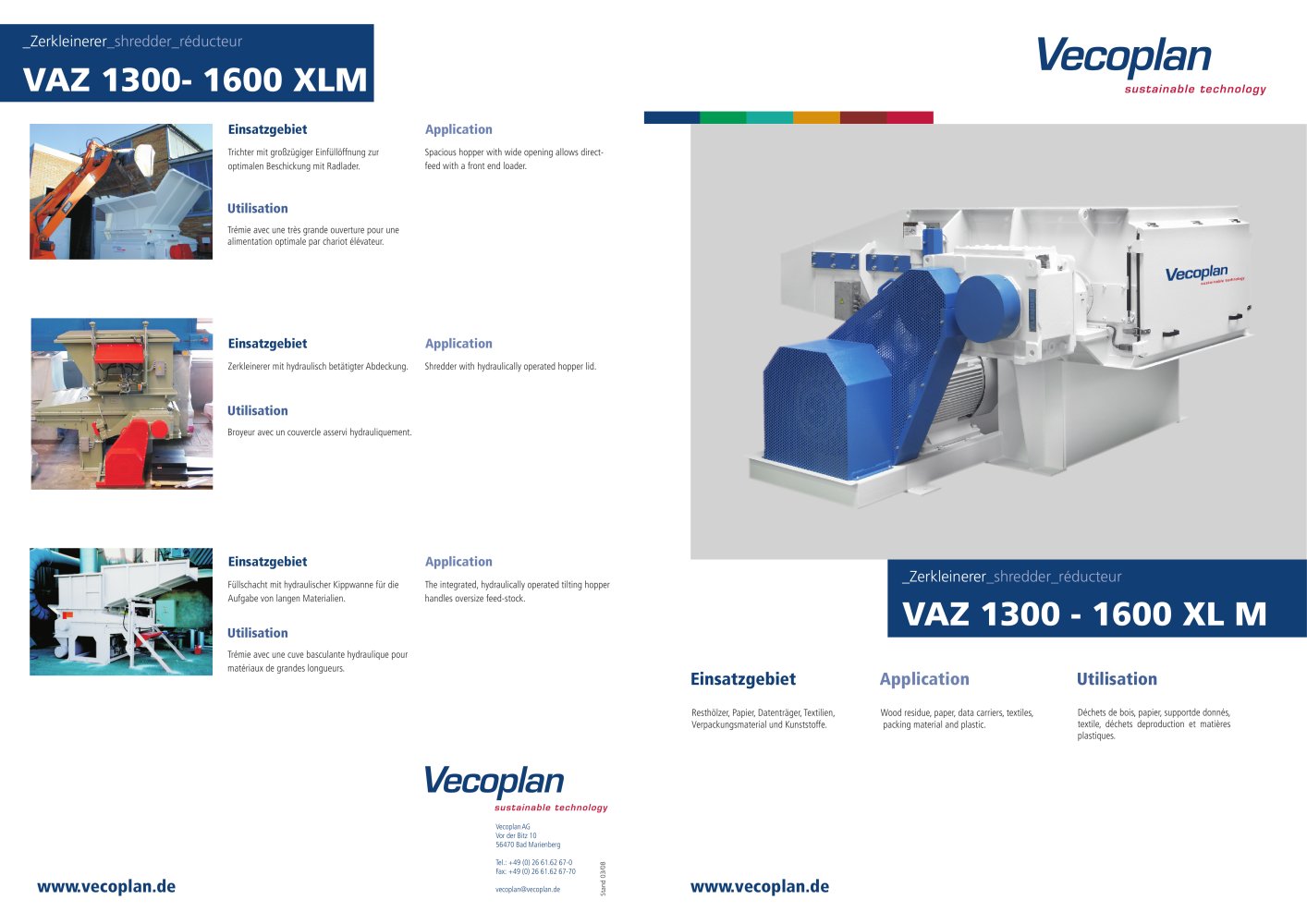

Application and Usage: The VAZ 1300 - 1600 XL M shredder is designed for processing wood residue, paper, data carriers, textiles, packing material, and plastics. It features a spacious hopper with a wide opening for optimal feeding using a front-end loader and a hydraulically operated hopper lid for efficient material handling.

Specifications: The shredder is available in different models (VAZ 1300 S, M, L) with rotor diameters of 370 mm and 500 mm. It offers a throughput capacity of up to 10 tons per hour and requires a power input of 45 - 110 kW. The machine allows for particle size selection from approximately 10-100 mm.

Technology and Features: The shredder employs a single-step reduction process with a constant rotor speed of 150 rpm. It is driven by an electric motor, belt drive, fluid coupling, and reduction gear. The HiTorc variant offers variable rotor speeds (0-360 rpm) with energy-saving capabilities, increasing throughput by up to 70% and reducing energy consumption by up to 60%.

Patented Rotor System: The shredder features a patented profiled rotor with a toothed counter knife. Users can choose between concave crown cutters or flat cutters, available in 40 mm or 60 mm sizes, with options for single or double rows of cutters.

Additional Options: Further machinery details and options, such as bridge breakers and different drive system variants, are available in the main brochure. Technical alterations are reserved, and detailed dimensional drawings and load specifications can be requested.
