HR 35

Product catalog summary

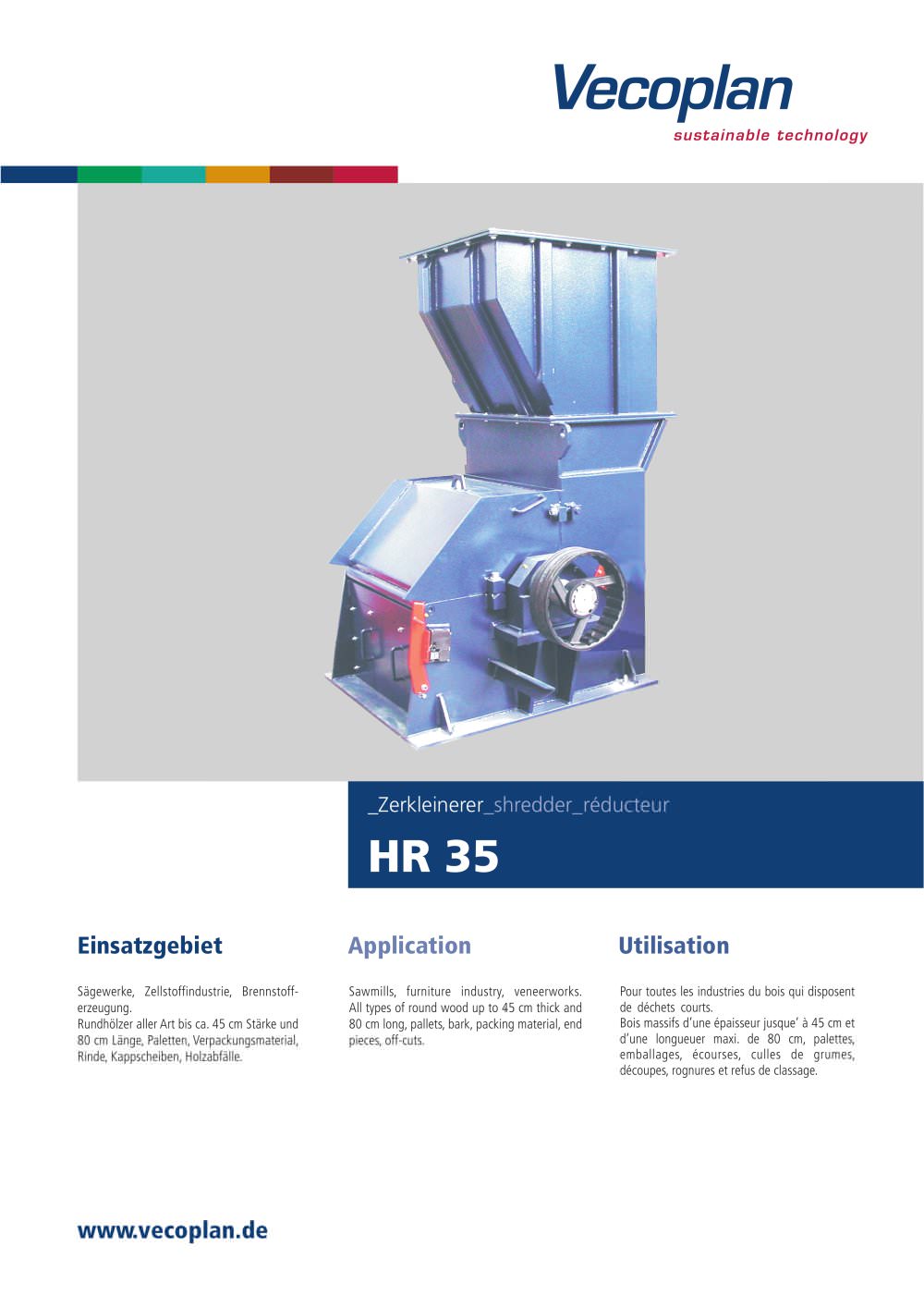

Application and Utilization: The HR 35 shredder is designed for use in sawmills, the furniture industry, and veneer works. It is capable of processing all types of round wood up to 45 cm thick and 80 cm long, as well as pallets, bark, packing material, end pieces, and off-cuts. It is suitable for industries dealing with short wood waste.
Technical Specifications: The shredder features an intake opening with dimensions varying from 450 x 350 mm to 950 x 350 mm, depending on the model. The rotor diameter is consistently 700 mm across models. The chipping length ranges from 5 to 30 mm, and the weight varies from approximately 3250 kg to 5400 kg. Maximum capacity ranges from 20 to 45 rm/h, with drive power between 55 kW and 132 kW.
Design and Construction: The document includes side and front views of the shredder, providing dimensions and layout details. The number of knives ranges from 2 to 4, and the rotor speed is approximately 650-820 rpm.
Additional Information: Technical alterations are reserved, and performance depends on the infeed material and screen hole diameter.
See more

Catalog excerpts

HR 35-2

Seitenansichtside view vue de cotFrontansichtfront view vue de face > 1452 Einf驼llbreite750 Einflllnge 595 1275 ca.1325 975 570 li. 850 650 1090 1270 1475 HR 45/35 HR 65/35 HR 75/35 HR 95/35 intake openingEinlaufquerschnitt ouverture d줒alimentationmm 450 x 350650 x 350 750 x 350 950 x 350rotor diameter Rotordurchmesser diamtre du rotormm700700700700chipping lenghtHacklnge no. of knives HackmesseranzahlcouteauxStck.2 - 42 - 42 -42 - 4rotor speed (rpm)approx.Rotordrehzahlvitesse du rotor (t/min.) ca.UpM650-820650-820650-820650-820 weight approx.Gewicht ca.longueur des plaquettesmmpoids env.kg5...
