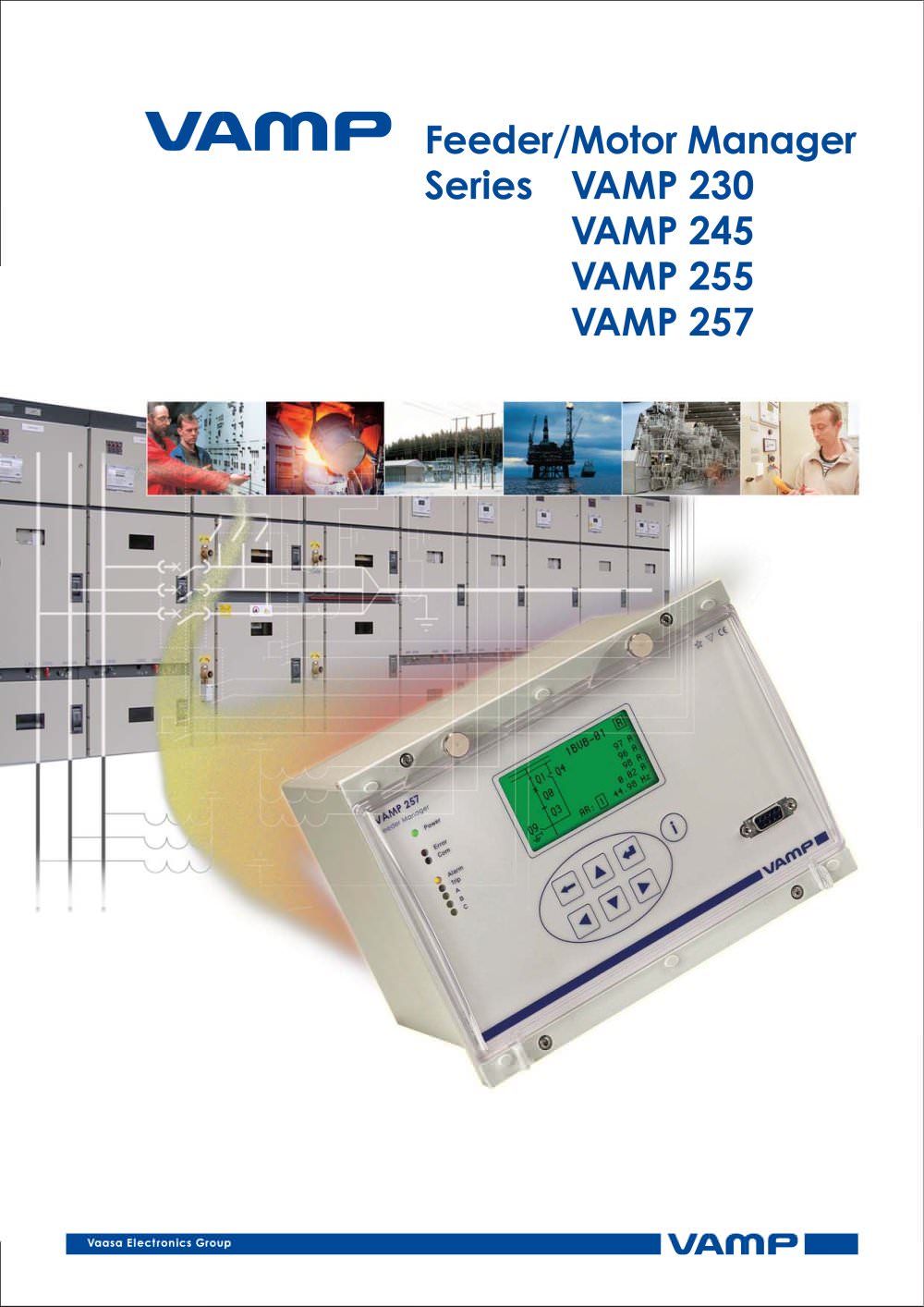

Feeder/Motor ManagerSeriesVAMP 230VAMP 245 VAMP 255 VAMP 257 >

Complete Protection Comprehensive selection of protection functionsfor distribution network overhead line feeders, cable feeders, motor feeders including large motors, capacitor banks and reactors. Օ Total Control Extensive bay control functionality including local and and remote control of six objects and status supervision of another two objects. Comprehensive Measurements Wide range of measurement functions including phase-to-earth, phase-to-phase voltages, currents, frequency, active, reactive and apparent power, active and reactive energy imported and exported, power factor, negative...

Feeder/Motor Manager Series Fault Location > The feeder manager includes a sophisticated stand-alone fault location function. The algorithm used can accurately locate short-circuits in any type of distribution networks and earth-faults in compensated distribution networks. The fault location is given as a reactance value, and the distance to the fault is also displayed on the local HMI, optionally as a mA signal and as a message over the communication system. The distance value can be exported, for example, as an event to a DMS (Distribution Management System). The system can then locate...

VAMP 230VAMP 245VAMP 255VAMP 257 IEEE noIEC symbolFunction name IEC,IEEE programmable curves 50/513I>, 3I>>, 3I>>Overcurrent 50N/51NI > >, I > >>, I > 02 >, I > 02 >>Earth fault 67I > dir >, I > dir >>, I > dir >>>,I > dir >>>>Directional overcurrent 67NI > >, I > >>Directional earth fault 46I > 2 /I > 1 >Broken conductor 46I > 2 >Unbalance 47I > 2 >>Phase reversal / incorrect phase sequence 48Ist>Stall 66N>Frequent start 37IOverload 59NU > >, U > >>Residual voltage 59U>, U>>, U>>>Overvoltage 27U<, U<<, U<<<, f>>< Protection functionsMeasurement and monitoring functions 81Uf<, f<Arc fault...

Traditional protectionrelay systems do notprovide fast enoughprotection in arc-faultsituations. > The VAMP arcprotection devicesalso provide a costefficient high- speed MV busbar protection. > All signals of the feeder manager's output matrix areavailable to the external ledmodule. For every led you canconnect one or more signals. The display mode iseither Latched i.e.singnal following,Latched or Blinklatched. >

Programmable logic The logic editor has colors to enable viewing of activestatuses. Furthermore,each input status can be also seen on-line in VAMPSET view . >

Note 1. The residual current can bederived from three phase CTs connectedin parallel, from a core balance cable CTor it can be calculated from the three phase currents. Note 2. Either phase-to-phase or phase-to-neutral voltages can be measured. In the latter case the residual voltage isinternally calculated. 10 size="-1">

Nominal current [A] > Order Code Explanation NoteVEA 3 CG 3 = 1A / 5A > Ethernet Interface ModuleVAMP Ltd Nominal earth-fault current Io1 & Io2 [A] > VPA 3 CG Profibus Interface Module VAMP Ltd C = 1A / 5A > VSE001 Fibre optic Interface Module VAMP Ltd D = 0.2A / 1A > VSE002 RS485 Interface Module VAMP Ltd VX003-3 Programming Cable (VAMPSet,VEA 3 CG+200serie)Cable length 3m Additional I/O (X8 terminal) 6 = None > VX004-M3 TTL/RS232 Converter Cable(for PLC, VEA3CG+200serie )Cable length 3m 7 = 8 inputs and 4 outputs 8 = 10 outputs > VX007-F3 TTL/RS232 Converter Cable(for VPA 3 CG or VMA 3...

Rated current In 110 A (software parameter)- Current measuring range0Ņ250 A (050 x In [In=5 A];0Ņ250 x In [In=1 A])- Thermal withstand20 A (continuously)100 A (for 10 s) 500 A (for 1 s)- Burden< 0.2 VA Emission (EN 50081-1)- Conducted (EN 55022B)0.15 - 30 MHz - Emitted (CISPR 11)30 - 1 000 MHz Immunity (EN 50082-2)- Static discharge (ESD) EN 61000-4-2, class III6 kV contact discharge 8 kV air discharge- Fast transients (EFT)EN 61000-4-4, class III2 kV, 5/50 ns, 5 kHz, +/-- SurgeEN 61000-4-5, class III2 kV, 1.2/50 Rated current Ion 1 A- Current measuring range010 A (0Ņ10 x Ion) s, common...
