VAMP 96

VAMP 96

Product catalog summary

Main Characteristics
The document discusses intelligent measuring and monitoring units, specifically the VAMP 96, VAMP 260, and WIMO 6CP10. These units are equipped with customizable data screens and measurements for various metering needs. Key functionalities include cost allocation, billing, demand and power factor control, equipment monitoring, power quality analysis, preventative maintenance, and extensive communication and SCADA connectivity.

VAMP 96 and VAMP 260
Designed for industrial and utility applications, these devices focus on energy consumption monitoring and billing. They feature demand and power factor control, equipment monitoring, alarms for preventive maintenance, and disturbance capturing, along with extensive communication capabilities.

WIMO 6CP10
Optimized for utility applications, particularly secondary power distribution substations, the WIMO 6CP10 meters facilitate load monitoring and fault detection. They can operate stand-alone or connect to network control centers for continuous supervision.

Product Overview
The VAMP 96 is a basic multimeter for industrial low and medium voltage power distribution panels, capable of connecting to SCADA or energy management systems. The VAMP 260 is designed for heavy-duty industrial applications, offering features like six digital inputs and four analog outputs. The WIMO 6CP10 is tailored for utility applications, enabling remote monitoring of secondary power distribution transformers.

VAMPSET Software
VAMPSET is a free relay management software for setting, parameterizing, and configuring VAMP and WIMO devices. It supports COMTRADE format for analyzing relay events and waveforms and offers multi-language support.

Functionality
The document details various measurement and monitoring functions, including power quality logging, mathematical functions, and communication protocols like IEC 60870-5-101, Modbus RTU, and Profibus DP.

Communication
The document highlights cost-effective communication media options, such as GSM, GPRS, and fiber optic communication, for transferring measurements to network control centers. It also discusses the OPC connection to SCADA for visualizing events, measurements, and alarms.

Connection Diagrams
Connection diagrams for VAMP 96, VAMP 260, and WIMO 6CP10 are provided, illustrating how these units are integrated into power distribution networks.

Typical Applications
The document outlines typical applications for each unit, emphasizing their roles in industrial and utility settings for monitoring power and energy distribution.

Order Codes
A list of accessories and order codes is provided for various interface modules and cables, facilitating the integration and operation of the measuring and monitoring units.

Specifications

VAMP 96 and VAMP 260: Nominal current of 1A or 5A, current measuring range up to 5 times the nominal current, voltage range of 90-264 V, and frequency range of 45-65 Hz.
WIMO 6CP10: Similar specifications to the VAMP units, with a nominal current of 1A or 5A and a voltage range of 90-265 V.

Power and Voltage

Supply voltage options include 90-264 Vdc and 18-75 Vdc for different configurations.
Continuous voltage withstand is up to 275 V for VAMP 260 and WIMO 6CP10.

Environmental Conditions

Operating temperature ranges from -25 to +50°C for VAMP 96 and WIMO 6CP10, and -10 to +55°C for VAMP 260.
Relative humidity should be less than 75% on average annually, with no condensation permitted.

Communication and Interfaces

Local serial communication ports are available with RS 232 connections, supporting data transfer rates between 9,600 and 38,400 kb/s.
Remote control connections include RS 232 and optional RS 485 interfaces.

Accuracy and Testing

Current accuracy is +/- 0.5% for VAMP 96 and WIMO 6CP10, and +/- 0.3% for VAMP 260.
Insulation test voltage is 2 kV, and surge voltage is 5 kV as per IEC 60255-5 standards.

Company Information Vamp Ltd specializes in medium-voltage protection relays and arc protection systems. Their products include a range of protection relays and integrated arc protection systems. Contact details and company address are provided for further inquiries.

Catalog excerpts

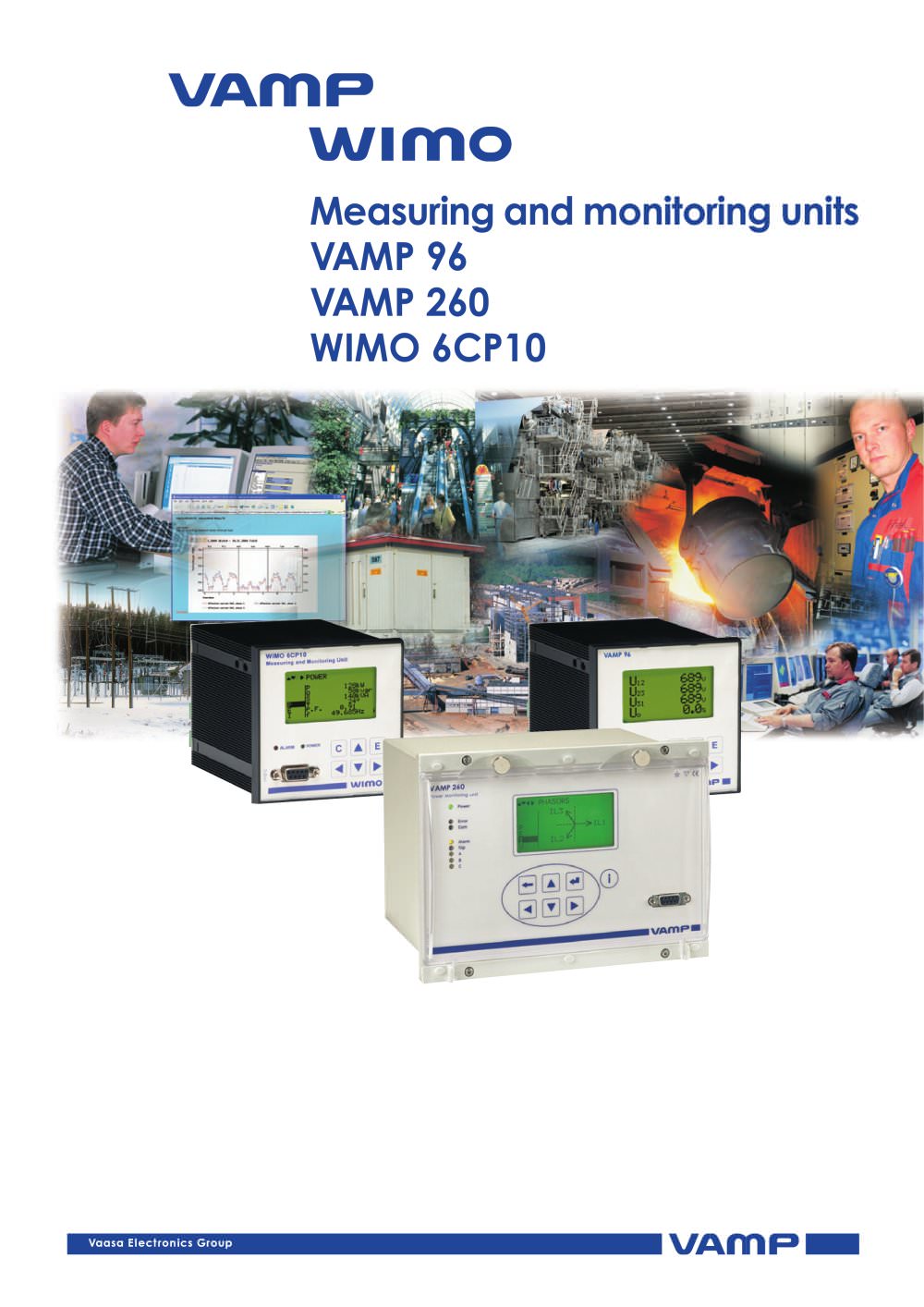

Measuring and monitoring units VAMP 96 VAMP 260 WIMO 6CP10

Open the catalog to page 1

2 Main Characteristics Measuring and monitoring units Intelligent measuring and monitoring units The VAMP and WIMO meters come with an extensive selection of pre-configured data screens and measurements that you can use or customize to fit your metering requirements. • Cost Allocation and Billing Determine consumed energy by production cost centers according to the EU’s Energy Service Directive (ESD) 2006/32/EC. • Demand and Power Factor Control Avoid penalties with automated load shedding, scheduling, peak shaving or capacitor bank control • Equipment Monitoring and Control Improve process yields...

Open the catalog to page 2

3 A right product for every application Solution VAMP 96 VAMP 260 WIMO 6CP10 Operational segment Industrial and Industrial and Utility secondary utility substations utility substations power distribution Application Power, energy, Power, energy, Power, energy and power quality metering, power quality metering, power quality metering, event handling and event handling, earth fault detection, I/O unit for SCADA and control, alarming, alarming, process automation temperature monitoring and temperature monitoring, I/O unit for SCADA and alarm and load profile process automation SCADA transfer over...

Open the catalog to page 3

4 Product Overview Measuring and monitoring units VAMP 96 measuring and monitoring unit The VAMP 96 is a modern basic multimeter used as a stand alone meter in industrial low and medium voltage power distribution distribution panels. This meter can be connected to SCADA or energy management system in order to provide required measurements, alarms, condition data, events to the operator using various communication protocols. VAMP 96 shall be connected to measurement core of the current and voltage transformers Typical application of VAMP 96 is to measure energy by production cost centers and show...

Open the catalog to page 4

5 VAMPSET Setting and Configuration Tool A disturbance recorder view from VAMP 260 indicating a faulty cable termination from the incoming feeder of paper mill's supply. This recording gave ..pre-information hence the repair action was possible before the cable termination faulted. As a regular feature of the VAMP and WIMO units, standard COMTRADE type disturbance recording files can be uploaded for subsequent evaluation of any network event recorded. Measurement view in VAMPSET of WIMO 6CP10 unit. VAMPSET is a user-friendly, free-of-charge relay management software for setting, parameterising...

Open the catalog to page 5

6 Functionality Measuring and monitoring units Power quality Measurement and monitoring functions Logging, mathematical functions Hardware Communication *) Consult your dealer for details VAMP 96 VAMP 260 WIMO 6CP10 IEC 60870-5-101 ¡ ¡ ¡ IEC 60870-5-103 ¡ ¡ ¡ IEC 61850 ¡ ¡ ¡ Modbus RTU ¡ ¡ ¡ Profibus DP ¡ ¡ ¡ SPA ¡ ¡ ¡ DNP 3.0 ¡ ¡ ¡ Modbus RTU slave ¡ ¡ ¡ Number of phase current CT inputs, protection core 3 Number of phase current CT inputs, measurement core 3 3 Number of residual current CT inputs, measurement core 1 Number of voltage inputs 3 3 3 Number of digital inputs 3 6 3 Number of heavy...

Open the catalog to page 6

7 Communication Cost effective communication media The most efficient communication media from the secondary substations are GMS, GPRS, leased modem line or fiber optical communication. Using the WIMO-GSM communication only three messages a day is required to transfer all measurements to Network Control Center. Leased modem line or GPRS allows real time data transfer cost efficiently. RMU Secondary Substation MV/LV Measuring and Monitoring Unit WIMO 6CP10 GSM/GPRS modem RMU Secondary Substation MV/LV WIMO’s SCADA connection •OPC server •OPC client GSM/GPRS modem Measuring and Monitoring Unit...

Open the catalog to page 7

8 Measuring and monitoring units Connection diagrams VAMP 260 is connected to phase voltages in a 400 V network VAMP 260 VAMP 260 is connected to line voltages in a 400 V network VAMP 260 VAMP 260 connection diagram X1 1 23 45 6 X1 11 12 13 14 15 16 X2 12 34 56 7 89 AO 1 AO 2 AO 3 AO 4 L1 L2 L3 P 2 P 1

Open the catalog to page 8

9 VAMP 96 connection diagram WIMO 6CP10 connection diagram IEC 60 870-5-103 (on request) TCP/IP Modbus TCP Modbus RTU Profibus DP SPA Energy pulse output VAMP 96 DI X2B:8 +12V X2B:4 DI2 X2B:5 DI3 X2B:3 DI1 IL3 X1:5 X1:6 IL1 IL2 X1:1 X1:2 X1:3 X1:4 X3 X4 Local Remote X2A:7 X2A:8 Relay out V A Hz VA W var P.F cosfii tanfii Wh varh THD U&I harmonics N L1 L2 L3 10/0.4kV 10kV ~ X2A:5 X2A:3 X2A:4 X2A:2 N U1 U2 U3 X2B:1 Uaux X2B:2 R VAMP96_LVCON_2 General digital inputs Measurement functions ~ WIMO 6CP10 X2A:5 X2A:3 X2A:4 X2A:2 N U1 U2 U3 X2A:1 Uaux PT100 X2B:6 X2B:7 DI X2B:8 +12V X2B:4 DI2 X2B:5 DI3...

Open the catalog to page 9

10 Measuring and monitoring units Typical applications WIMO 6CP10 Wimo 6CP10 is optimal metering and monitoring unit for utility's secondary power distribution substations VAMP 260 VAMP 260 power monitoring unit applied for monitoring of power and energy at industrial power distribution. Energy pulses dirive Energy Management System whereas the alarms and load information goes via the serial communication to the Control Center. The mA outputs control analogue meters of the switchgear. VAMP 96 VAMP 96 is a basic metering and control device used for measuring power and energy of production cost...

Open the catalog to page 10

11 Order Codes Accessories: Order Code Explanation Note VEA 3CG Ethernet Interface Module ¡ ¡ ¡ VPA 3CG Profibus Interface Module ¡ ¡ VSE001 Fiber optic Interface Module ¡ ¡ ¡ VSE002 Interface Module ¡ ¡ ¡ VSE005-1 Ethernet, RS 485 interface module ¡ ¡ VX003-3 Programming Cable (VAMPSet, VEA 3 CG + 200 serie) Cable length 3 m ¡ ¡ ¡ VX004-M3TTL/RS232 Converter Cable (for PLC, VEA3CG+200serie ) Cable length 3 m ¡ ¡ ¡ VX007-F3 TTL/RS232 Converter Cable (for VPA 3 CG or VMA 3 CG) Cable length 3 m ¡ ¡ ¡ VYX076 Raising Frame for 200-serie Height 40 mm ¡ VYX077 Raising Frame for 200-serie Height 60...
