Feeder/Motor - Protection Relay Vamp 40

Product catalog summary

Application
The VAMP 40 Feeder/Motor Protection Relay is designed for the selective protection of overhead line feeders, cable feeders, motor feeders, capacitor banks, reactors, and busbars in various power systems, including distribution substations, power plants, industrial systems, and marine installations.

Main Characteristics

Complete Protection: Offers a comprehensive selection of protection functions for various feeders and motors.
Comprehensive Measurements: Includes functions for measuring phase and residual currents, voltages, frequency, and power.
Power Quality Assessment: Analyzes power quality, including harmonics up to the 15th order and THD.
Ultra-fast Arc Protection: Integrated arc fault protection for enhanced safety.
Extensive Communication: Supports multiple communication protocols like IEC 60870-5-103, Modbus, Profibus, and more.
Easy Handling and Management: Simplified commissioning and operation with VAMPSET software.
Limited Depth Dimension: Slim casing for installation in limited space.
Universal Auxiliary Power Supply: Wide range of auxiliary power supply options.

Functionality

Power Quality Assessment: Integrated functions for measuring and analyzing power quality.
Measurement and Monitoring Functions: Replaces conventional metering with comprehensive measurement capabilities.
Protection Functions: Includes overcurrent, earth fault, directional earth fault, and more.

VAMPSET Setting and Configuration Tool
VAMPSET is a user-friendly software for setting and configuring VAMP relays, supporting data analysis and communication via standard cables and TCP/IP.

Technical Data and Environmental Conditions

Measuring Circuitry: Configurable for various current and voltage ranges.
Auxiliary Voltage: Wide range from 19 to 265 V ac/dc.
Disturbance Tests: Complies with various EN and IEC standards for emissions and immunity.
Environmental Conditions: Operates in temperatures from -10 to +65°C, with specific humidity conditions.

Company Information
Vamp Ltd is a Finnish company specializing in protection relays, offering competitive products and customer support, certified under ISO 9001:2000.

Catalog excerpts

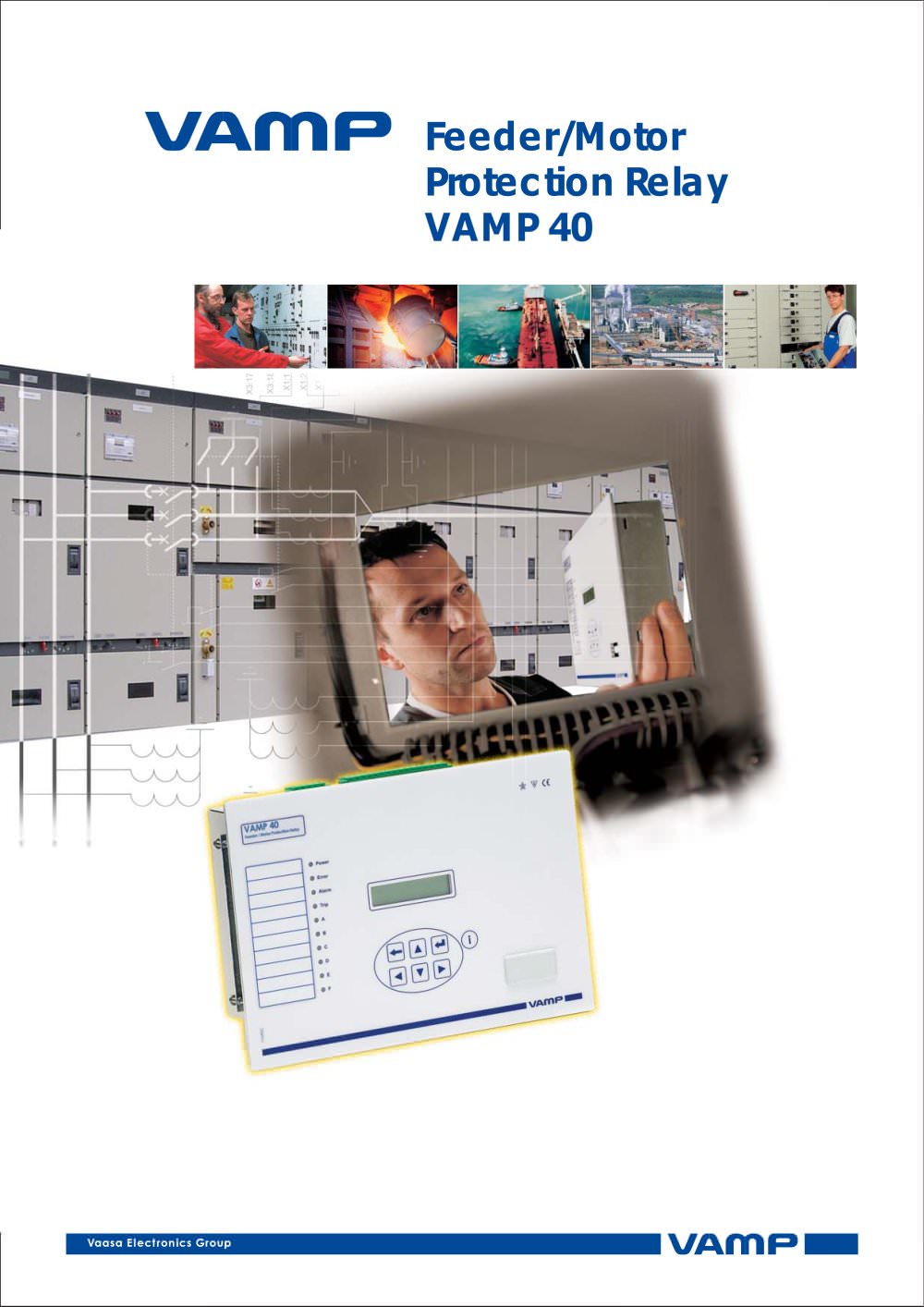

Feeder/MotorProtection Relay VAMP 40 >

Open the catalog to page 1

? Complete Protection Comprehensive selection of protection functionsfor distribution network overhead line feeders, cable feeders, motor feeders including large motors, capacitor banks and reactors. ? Comprehensive Measurements Wide range of measurement functions including phase and residual currents, residual or line or phase voltage, frequency, current unbalance, maximum demand, negative phase sequence current, active and reactive power and energy according to the primary connection. ? Power Quality Assessment Power quality assessment and analysis including supervision of harmonics up to the...

Open the catalog to page 2

Feeder/Motor - Protection Relay Vamp 40-4

Traditional protection relay systemsdo not provide fast enoughprotection in an arc-fault situations.The VAMP 40 protection relay withintegrated arc protection alsoprovide a cost efficient high-speedMV busbar protection. The motor start-up register stores the motor start-up values(start current, duration etc.) significantly facilitating the correct setting of the relay even if critical motor data are unavailable from the manufacturer. > As a regularfeature of theVAMP relays standard COMTRADE type disturbancerecording files canbe uploaded for subsequent evaluation of anynetwork eventrecorded. Protection...

Open the catalog to page 4

Feeder/Motor - Protection Relay Vamp 40-6

Order Code DescriptionNote VAMP 40 Feeder / motor protection relay VAMP Ltd > VEA3CG Ethernet Interface Module > VPA3CG Profibus Interface Module VSE001 Fiber optic Interface Module VSE002 RS485 Interface Module VSE004 VAMP 40 RS-485 module VSE005-1 Ethernet and RS-485 module VX003-3 Programming Cable (VAMPSET) Cable length 3 m VX028-3 Interface cable to VPA3CG ( Profibus adaptor)Cable length 3 m VX030-3 Interface cable to VEA3CG (Ethernet adaptor) Cable length 3 m VX032-3 Rear panel programming cableCable length 3 m VYX256A Optional seal for IP54 VP40 Arc option VA1DA-6 Arc SensorCable lenght...

Open the catalog to page 6

Feeder/Motor - Protection Relay Vamp 40-7

Rated current In 5 A (configurable for CT secondaries 1 10 A) Dimensions (W x H x D)280 x 195 x 55 mm - Current measuring range0օ250 A- Thermal withstand20 A (continuously)100 A (for 10 s) 500 A (for 1 s)- Burden< 0.2 VA Degree of protection IP 54 Weight 3 kg (terminal, package and manual) > Rated current Ion 1/5 A- Current measuring range050 A / 10 A Emission EN 61000-6-4 / IEC 60255-26- Conducted EN55011 / IEC 60255-25 0.15 - 30 MHz - EmittedEN55011 / IEC 60255-25 30 - 1000 MHz Immunity EN 61000-6-2 / IEC 60255-26- Static discharge (ESD) EN 61000-4-2 class IV / IEC 60255-22-28 kV contact discharge...

Open the catalog to page 7

Feeder/Motor - Protection Relay Vamp 40-8

Vamp LtdP.O.Box 810 FI-65101 VAASA FinlandVisiting address:Vaasa Airport Park Yrittjnkatu 15 Vaasa, Finland Tel: +358 20 753 3200Fax: +358 20 753 3205 Email: [email protected] http:// www.vamp.fi > We reserve the rights to product alterations without prior notice.Copyright 䤩 Vamp Ltd. All trademarks are the property of theirrespective holders. VB40.EN004 size="-2">
