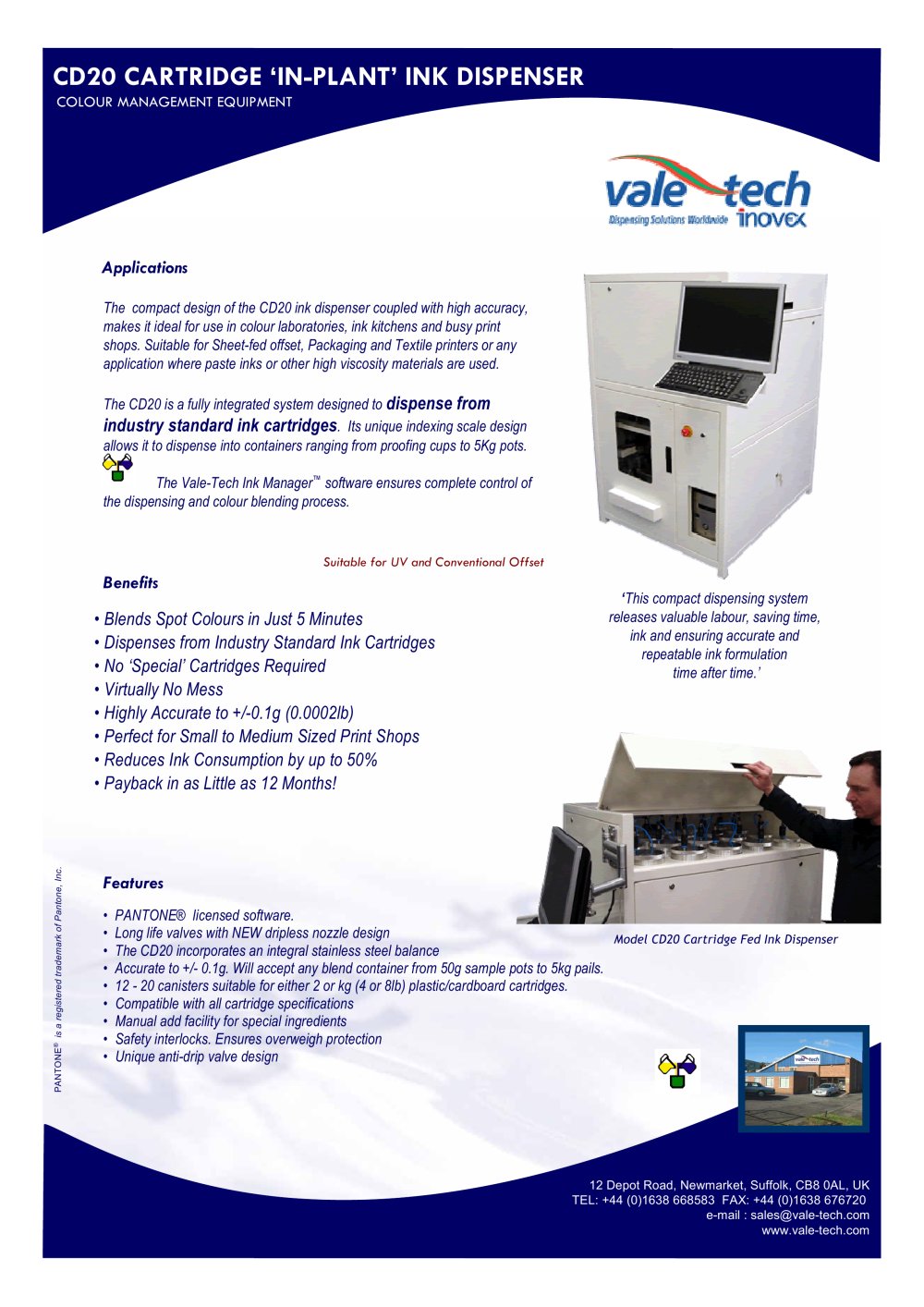

Overview: The CD20 ink dispenser is a compact and highly accurate system ideal for color laboratories, ink kitchens, and print shops. It is suitable for applications involving paste inks or high viscosity materials, such as sheet-fed offset, packaging, and textile printing.

Specifications: The CD20 can dispense blends ranging from 50g to 5Kg using industry-standard ink cartridges. It supports cartridges from 2Kg (4 lb) to 4Kg (8 lb) and can incorporate 12 to 20 cartridges. The system includes an integrated PC-linked scale, a TFT flat screen monitor, and a 10Kg/22 lbs capacity balance.

Features: The dispenser is equipped with Vale-Tech Ink Manager™ software for complete control over dispensing and color blending. It offers high accuracy to +/-0.1g, a unique anti-drip valve design, and safety interlocks for overweigh protection. The system is compatible with all cartridge specifications and includes a manual add facility for special ingredients.

Benefits: The CD20 reduces ink consumption by up to 50% and offers a payback period as short as 12 months. It blends spot colors in just 5 minutes and requires no special cartridges, ensuring minimal mess and labor savings.

Options: Additional options include a barcode reader, label printer, links to spectrophotometers, in-house networks, remote software support, and a service pack.

Dimensions: The CD20 measures 880 mm wide x 1170 mm deep x 1500 mm high (35” wide x 46” deep x 59” high).

Applications: The system is designed for hands-free, fully automatic operation and can dispense from both disposable and refillable steel cartridges. It supports external pump options for high usage colors or coatings from bulk containers.
