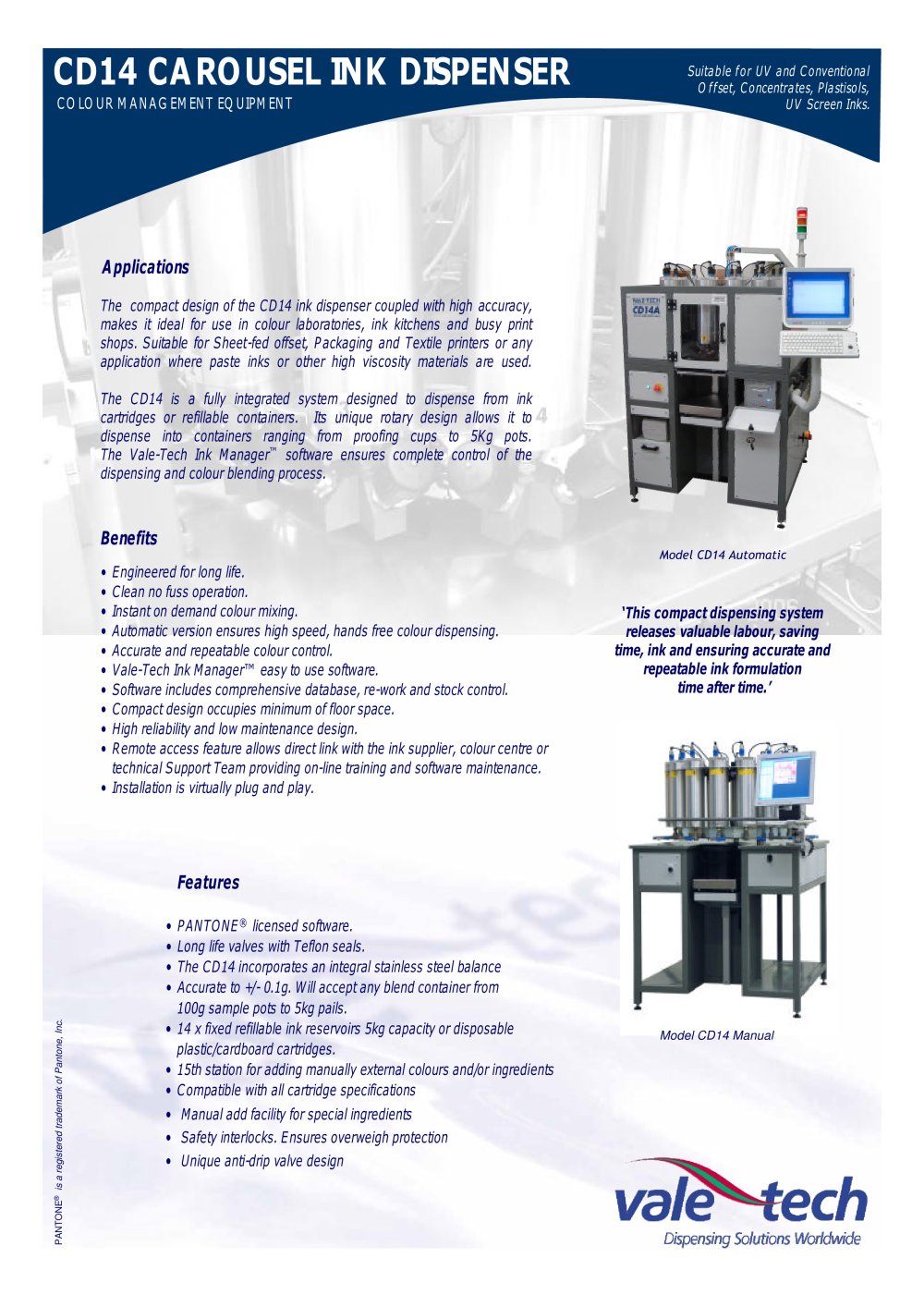

CD14 - Carousel Ink Dispenser

Product catalog summary

Overview: The CD14 Carousel Ink Dispenser is a compact and efficient system designed for precise ink dispensing, suitable for various printing applications including sheet-fed offset, packaging, and textile printing. It supports both manual and automatic operations, offering flexibility and high accuracy in colour management.

Specifications:

Two models available: CD14M (Manual) and CD14A (Automatic).
Blend size ranges from 50g to 5Kg.
Dimensions: 1100 mm x 1100 mm x 1500 mm (43” x 43” x 59”).
Shipping weight: 200 Kg net, 250 Kg gross.
Incorporates 14 refillable or disposable cartridges with a 5Kg capacity.
Equipped with a TFT flat screen monitor and integrated PC-linked scale.

Features:

Engineered for long life with low maintenance requirements.
Automatic version offers hands-free operation with a stepper motor-controlled drive.
Vale-Tech Ink Manager™ software for easy operation and comprehensive database management.
Accurate to +/- 0.1g with safety interlocks for overweigh protection.
Unique anti-drip valve design and PANTONE® licensed software.
Remote access for online training and software maintenance.

Applications: Suitable for UV and conventional offset, concentrates, plastisols, and UV screen inks. The system can dispense from both disposable and refillable cartridges, with an option for external pump use for high-volume colours.

Benefits:

Compact design saves floor space.
Instant on-demand colour mixing with accurate and repeatable results.
Easy installation with plug-and-play setup.
Manual add facility for special ingredients and external colour additions.

Contact Information: Vale-Tech, 12 Depot Road, Newmarket, Suffolk, CB8 0AL, UK. Tel: +44 (0)1638 668583, Fax: +44 (0)1638 676720, Email: [email protected], Website: www.vale-tech.com
