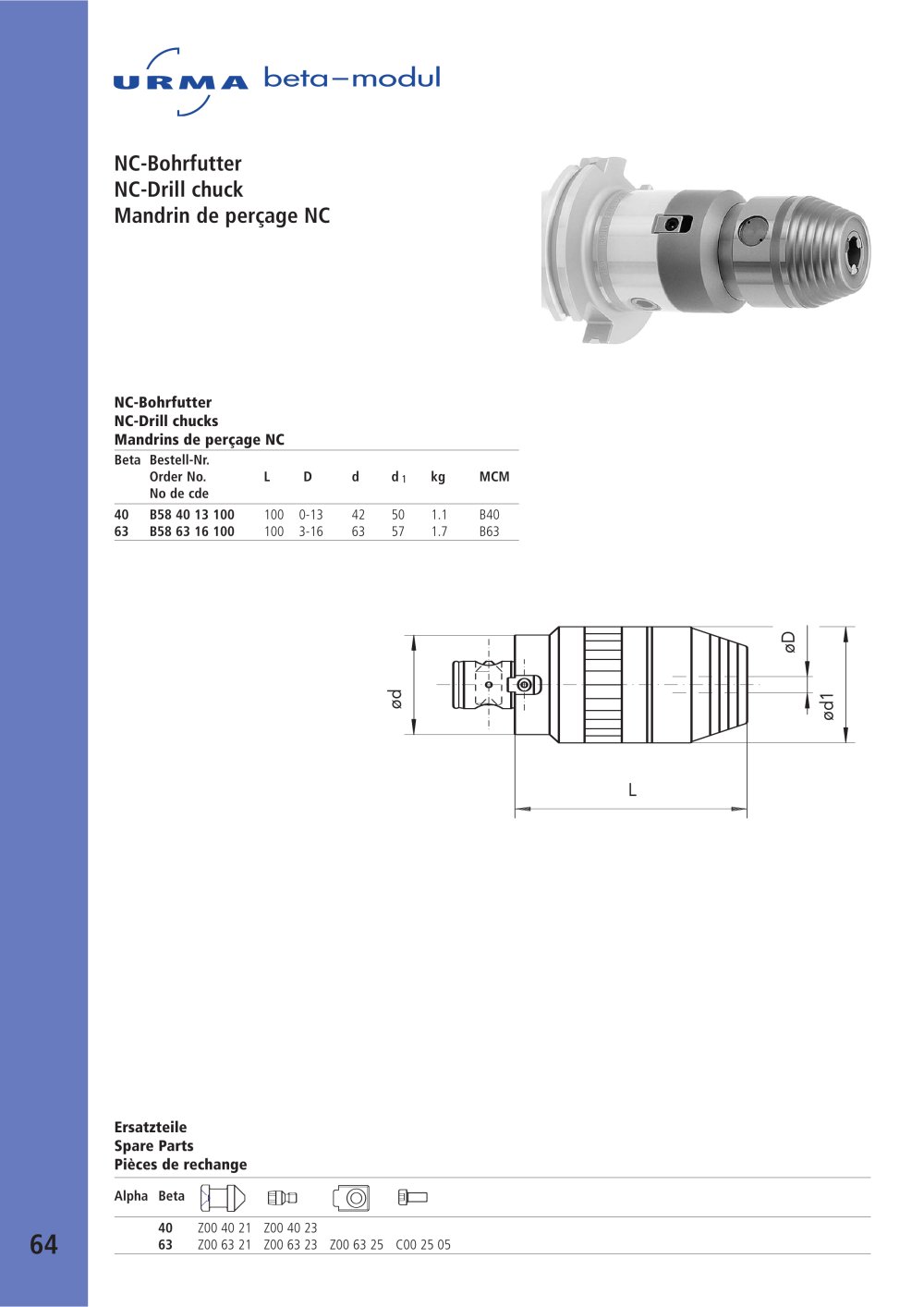

NC Drill Chucks Specifications

This document provides technical specifications and spare parts information for NC drill chucks, also referred to as NC-Bohrfutter or Mandrins de perçage NC.

Product Dimensions and Ordering Information

The table lists two main NC drill chuck models with their respective dimensions (length L, diameters D, d, and d1), weight, and MCM values. The size ranges for drill capacity are 0-13 mm for the 40 B58 model and 3-16 mm for the 63 B58 model.

Spare Parts

Spare parts are available for these NC drill chucks, identified by Alpha Beta codes:

• For size 40: Z00 40 21 and Z00 40 23
• For size 63: Z00 63 21, Z00 63 23, and Z00 63 25
• Additional part: C00 25 05

Summary

This document serves as a technical reference for ordering and maintaining NC drill chucks, providing essential dimensions, weight, and spare parts codes to ensure proper selection and replacement.
