VLS Platform Series
2Pages

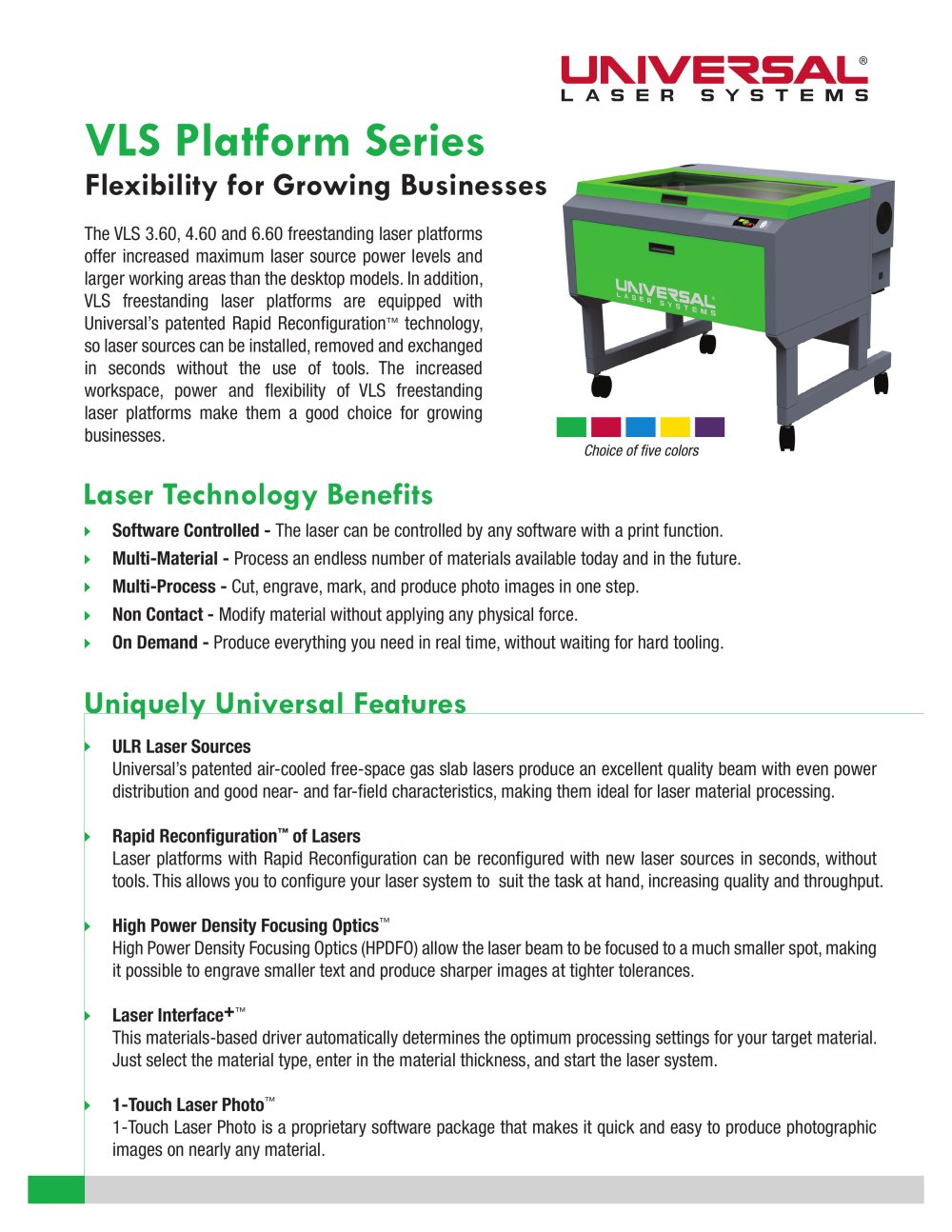

UMVE^5AL LASER SYSTEMS v iu rui vCrico Flexibility for Growing Businesses The VLS 3.60, 4.60 and 6.60 freestanding laser platforms offer increased maximum laser source power levels and larger working areas than the desktop models. In addition, VLS freestanding laser platforms are equipped with Universal's patented Rapid Reconfiguration technology, so laser sources can be installed, removed and exchanged in seconds without the use of tools. The increased workspace, power and flexibility of VLS freestanding laser platforms make them a good choice for growing businesses. Laser Technology Benefits ► Software Controlled - The laser can be controlled by any software with a print function. ► Multi-Material - Process an endless number of materials available today and in the future. ► Multi-Process - Cut, engrave, mark, and produce photo images in one step. ► Non Contact - Modify material without applying any physical force. ► On Demand - Produce everything you need in real time, without waiting for hard tooling. Uniquely Universal Features ULR Laser Sources Universal's patented air-cooled free-space gas slab lasers produce an excellent quality beam with even power distribution and good near- and far-field characteristics, making them ideal for laser material processing. Rapid Reconfigurationٙ of Lasers Laser platforms with Rapid Reconfiguration can be reconfigured with new laser sources in seconds, without tools. This allows you to configure your laser system to suit the task at hand, increasing quality and throughput. High Power Density Focusing Optics High Power Density Focusing Optics (HPDFO) allow the laser beam to be focused to a much smaller spot, making it possible to engrave smaller text and produce sharper images at tighter tolerances. Laser Interface+ٙ This materials-based driver automatically determines the optimum processing settings for your target material. Just select the material type, enter in the material thickness, and start the laser system. 1-Touch Laser Photo 1-Touch Laser Photo is a proprietary software package that makes it quick and easy to produce photographic images on nearly any material.

System Spcifications VLS3.60 VLS4.60 VLS6.60 ► Work Surface Area1 24 x 12 in (610 x 305 mm) 24 x 18 in (610 x 457 mm) 32 x 18 in (813 x 457 mm) ► Maximum Part Size2 29 x 17 x 9 in (737 x 432 x 229 mm) 29 x 23 x 9 in (737 x 584 x 229 mm) 37 x 23 x 9 in (940 x 584 x 229 mm) ► Dimensions 36 x 38 x 30 in (914 x 965 x 762 mm) 36 x 38 x 36 in (914 x 965 x 914 mm) 44 x 39 x 36 in (1118 x 991 x 914 mm) ► Rotary Capacity Max Diameter 8 in (203 mm) ► Motorized Z Axis Lifting Capacity 40 lbs (18 kg) ► Available Focus Lenses 1.5 in (38 mm) 2.0 in (51 mm) *standard 2.5 in (64 mm) 4.0 in (102 mm) ► Laser...
