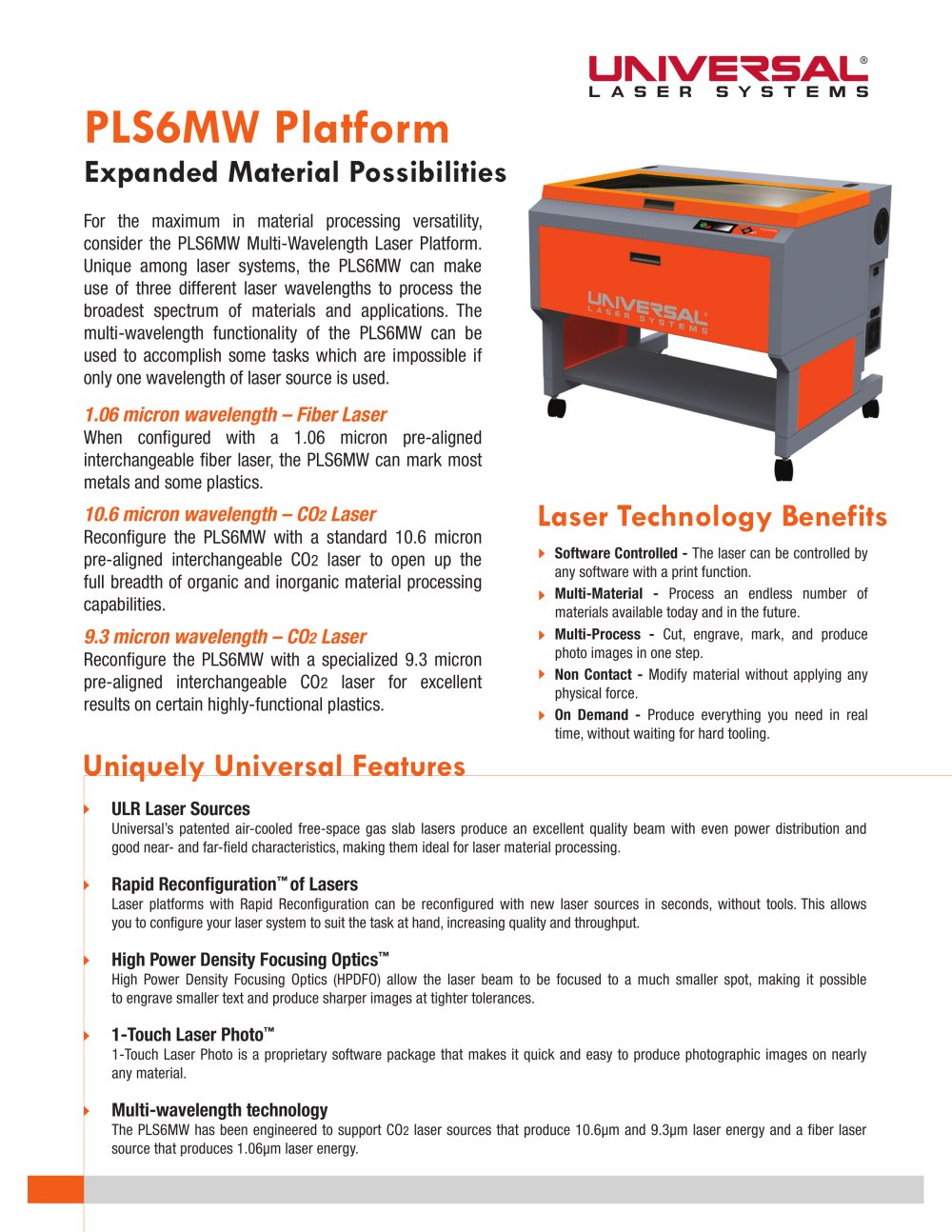

ljivi LASER SYSTEMS PLS6MW Platform Expanded Material Possibilities For the maximum in material processing versatility, consider the PLS6MW Multi-Wavelength Laser Platform. Unique among laser systems, the PLS6MW can make use of three different laser wavelengths to process the broadest spectrum of materials and applications. The multi-wavelength functionality of the PLS6MW can be used to accomplish some tasks which are impossible if only one wavelength of laser source is used. 1.06 micron wavelength - Fiber Laser When configured with a 1.06 micron pre-aligned interchangeable fiber laser, the PLS6MW can mark most metals and some plastics. 10.6 micron wavelength - CO2 Laser Reconfigure the PLS6MW with a standard 10.6 micron pre-aligned interchangeable CO2 laser to open up the full breadth of organic and inorganic material processing capabilities. 9.3 micron wavelength - CO2 Laser Reconfigure the PLS6MW with a specialized 9.3 micron pre-aligned interchangeable CO2 laser for excellent results on certain highly-functional plastics. Uniquely Universal Features Laser Technology Benefits ► Software Controlled - The laser can be controlled by any software with a print function. ► Multi-Material - Process an endless number of materials available today and in the future. ► Multi-Process - Cut, engrave, mark, and produce photo images in one step. ► Non Contact - Modify material without applying any physical force. ► On Demand - Produce everything you need in real time, without waiting for hard tooling. ULR Laser Sources Universal's patented air-cooled free-space gas slab lasers produce an excellent quality beam with even power distribution and good near- and far-field characteristics, making them ideal for laser material processing. Rapid Reconfiguration of Lasers Laser platforms with Rapid Reconfiguration can be reconfigured with new laser sources in seconds, without tools. This allows you to configure your laser system to suit the task at hand, increasing quality and throughput. High Power Density Focusing Opticsٙ High Power Density Focusing Optics (HPDFO) allow the laser beam to be focused to a much smaller spot, making it possible to engrave smaller text and produce sharper images at tighter tolerances. 1-Touch Laser Photo 1-Touch Laser Photo is a proprietary software package that makes it quick and easy to produce photographic images on nearly any material. Multi-wavelength technology The PLS6MW has been engineered to support CO2 laser sources that produce 10.6pm and 9.3pm laser energy and a fiber laser source that produces 1.06pm laser energy.

System Spcifications PLS6MW ► Work Surface Area1 32 x 18 in (813 x 457 mm) ► Maximum Part Size2 37 x 23 x 9 in (940 x 584 x 229 mm) ► Dimensions 44 x 39 x 36 in (1118 x 991 x 914 mm) ► Rotary Capacity Max Diameter 8 in (203 mm) ► Motorized Z Axis Lifting Capacity 40 lbs (18 kg) ► Available Focus Lenses 2.0 in (51 mm) *standard 4.0 in (102 mm) ► Laser Platform Interface Panel Keypad and LCD display shows current file name, laser power, engraving speed, PPI and run time ► Operating System Compatibility Requires a dedicated PC to operate. Compatible with Windows XP/Vista/7 - 32/64 bit ► PC...
