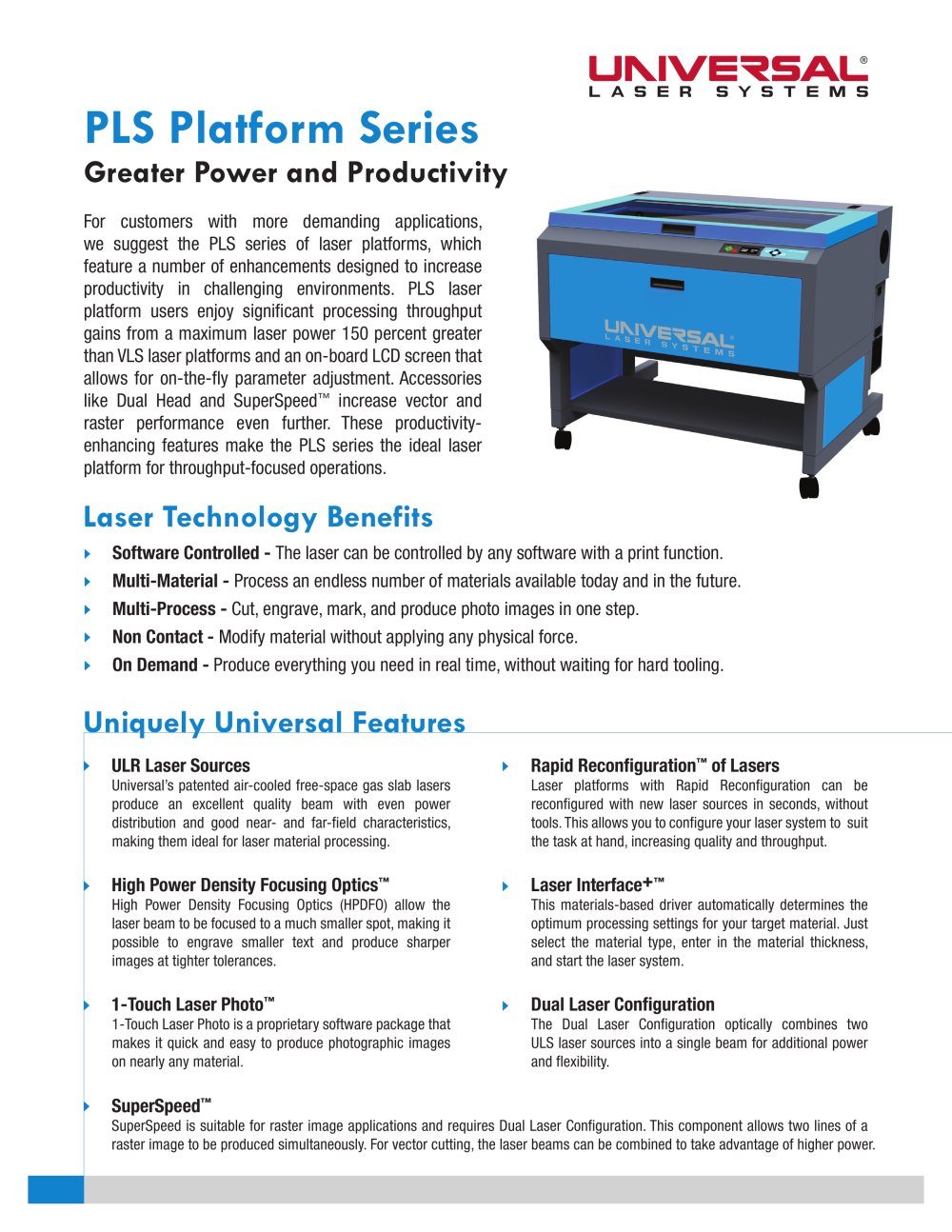

UMVE^SAL LASER SYSTEMS PLS Platform Sries Greater Power and Productivity For customers with more demanding applications, we suggest the PLS sries of laser platforms, which feature a number of enhancements designed to increase productivity in challenging environments. PLS laser platform users enjoy significant processing throughput gains from a maximum laser power 150 percent greater than VLS laser platforms and an on-board LCD screen that allows for on-the-fly parameter adjustment. Accessories like Dual Head and SuperSpeed驙 increase vector and raster performance even further. These productivity-enhancing features make the PLS series the ideal laser platform for throughput-focused operations. Laser Technology Benefits ► Software Controlled - The laser can be controlled by any software with a print function. ► Multi-Material - Process an endless number of materials available today and in the future. ► Multi-Process - Cut, engrave, mark, and produce photo images in one step. ► Non Contact - Modify material without applying any physical force. ► On Demand - Produce everything you need in real time, without waiting for hard tooling. uniqueiy universai reaiure: ULR Laser Sources Universal's patented air-cooled free-space gas slab lasers produce an excellent quality beam with even power distribution and good near- and far-field characteristics, making them ideal for laser material processing. Rapid Reconfiguration of Lasers Laser platforms with Rapid Reconfiguration can be reconfigured with new laser sources in seconds, without tools. This allows you to configure your laser system to suit the task at hand, increasing quality and throughput. High Power Density Focusing Opticsٙ High Power Density Focusing Optics (HPDFO) allow the laser beam to be focused to a much smaller spot, making it possible to engrave smaller text and produce sharper images at tighter tolerances. Laser Interface+ This materials-based driver automatically determines the optimum processing settings for your target material. Just select the material type, enter in the material thickness, and start the laser system. 1-Touch Laser Photoٙ 1-Touch Laser Photo is a proprietary software package that makes it quick and easy to produce photographic images on nearly any material. Dual Laser Configuration The Dual Laser Configuration optically combines two ULS laser sources into a single beam for additional power and flexibility. SuperSpeed SuperSpeed is suitable for raster image applications and requires Dual Laser Configuration. This component allows two lines of a raster image to be produced simultaneously. For vector cutting, the laser beams can be combined to take advantage of higher power.

System Spcifications PLS4.75 PLS6.75 PLS6.150D ► Work Surface Area1 24 x 18 in (610 x 457 mm) 32 x 18 in (813 x 457 mm) 32 x 18 in (813 x 457 mm) ► Maximum Part Size2 29 x 23 x 9 in (737 x 584 x 229 mm) 37 x 23 x 9 in (940 x 584 x 229 mm) 37 x 23 x 9 in (940 x 584 x 229 mm) ► Dimensions 36 x 39 x 36 in (914 x 991 x 914 mm) 44 x 39 x 36 in (1118 x 991 x 914 mm) 44 x 39 x 36 in (1118 x 991 x 914 mm) ► Rotary Capacity Max Diameter 8 in (203 mm) ► Motorized Z Axis Lifting Capacity 40 lbs (18 kg) ► Available Focus Lenses 1.5 in (38 mm) 2.0 in (51 mm) *standard 2.5 in (64 mm) 4.0 in (102 mm) ►...
