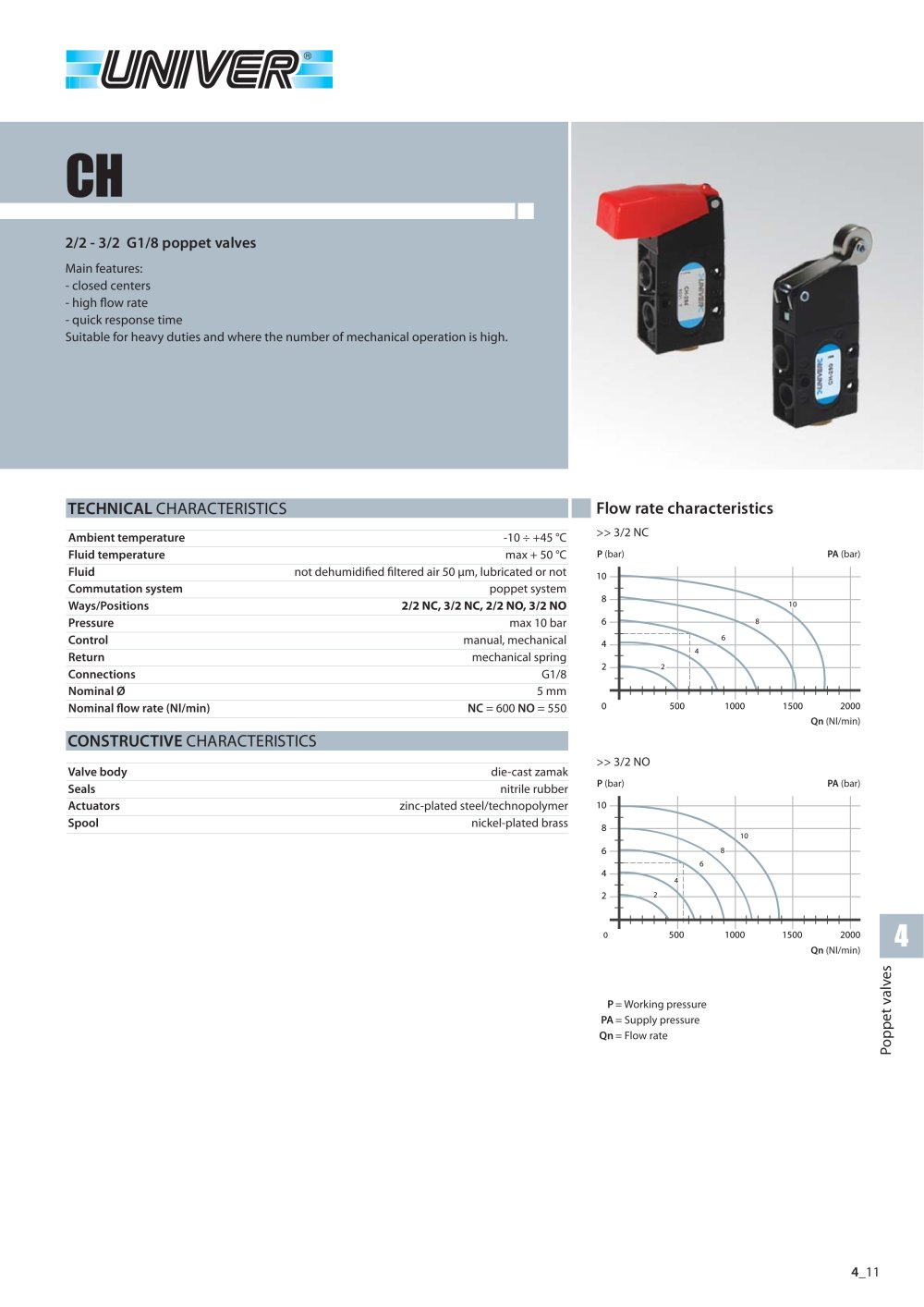

CH_2/2 - 3/2 G1/8 poppet valves

Product catalog summary

Technical Characteristics:

Valve Body: Die-cast zamak
Seals: Nitrile rubber
Actuators: Zinc-plated steel/technopolymer
Spool: Nickel-plated brass
Temperature Range: Ambient: -10 to +45 °C, Fluid: max +50 °C
Fluid: Not dehumidified filtered air 50 μm, lubricated or not
Commutation System: Poppet system
Ways/Positions: 2/2 NC, 3/2 NC, 2/2 NO, 3/2 NO
Pressure: Max 10 bar
Control: Manual, mechanical
Return: Mechanical spring
Connections: G1/8
Nominal Ø: 5 mm
Nominal Flow Rate (Nl/min): NC = 600, NO = 550

Constructive Characteristics:

Closed centers
High flow rate
Quick response time
Suitable for heavy duties and high mechanical operation frequency

Flow Rate Characteristics:

Working Pressure (P): 2 to 10 bar
Supply Pressure (PA): 2 to 10 bar
Flow Rate (Qn): 0 to 2000 Nl/min

Product Variants:

Roller Lever - Spring: 2/2 NC, 3/2 NO, 2/2 NO, 3/2 NC with flow rates of 600/550 Nl/min and force of 21/15 N
Uni-directional Roller Lever - Spring: Similar specifications with force of 16/12 N
Ball-push - Spring: Flow rates of 600/550 Nl/min and force of 51/39 N
Button Lever - Spring: Flow rates of 600/550 Nl/min and force of 18/14 N
