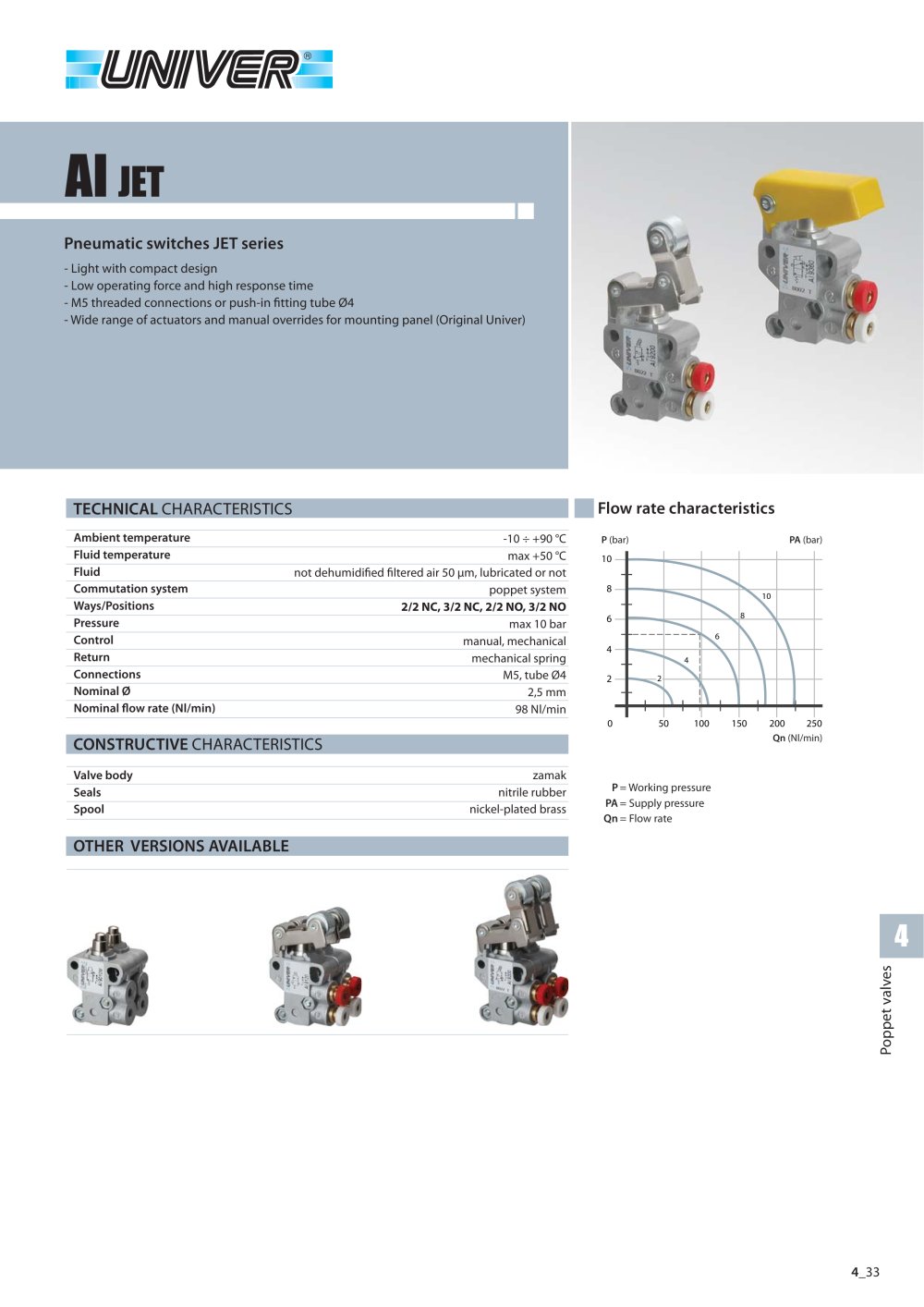

1f\ TECHNICAL CHARACTERISTICS Flow rate characteristics P (bar) PA (bar) Ambient temprature -10 4- +90 °C Fluid temprature max +50 °C Fluid not dehumidified filtered air 50 |jm, lubricated or not Commutation system poppet system Ways/Positions 2/2 NC, 3/2 NC, 2/2 NO, 3/2 NO Pressure max 10 bar Control manual, mechanical Return mechanical spring Connections M5, tube 04 Nominal 0 2,5 mm Nominal flow rate (Nl/min) 98 Nl/min CONSTRUCTIVE CHARACTERISTICS Valve body zamak Seals nitrile rubber Spool nickel-plated brass OTHER VERSIONS AVAILABLE 10 - - 10 8 ---- 6 \ 2 4 \ 0 50 100 150 200 250 P = Working pressure PA = Supply pressure Qn = Flow rate on 01 _> > ai o. o. o a. 4_33

AI JET Pneumatic switches UNIVER GROUP Ball-push - spring tube 04 in m Force (a) Weight Part no. N Kg 14 0,060 AI-9000 Symbol Connection 3/2 NC 12C M/d tube 04 3/2 NO <K W1° tube 04 14 0,060 AI-9010 2/2 NC mm tube 04 14 0,060 AI-9020 A Pre-stroke B Maximum opening C Total stroke 1 = Supply port 2 = Use 3 = Exhaust 2/2 NO ,2<q | | fM m tube 04 (b) 14 0,060 AI-9030 Ball-push - spring M5 Symbol Connection Force (a) Weight Part no. N Kg 14 0,060 AI-9000M 3/2 NC 12 C M5 3/2 NO M5 14 0,060 AI-9010M 2/2 NC <2C ta m M5 14 0,060 AI-9020M A Pre-stroke B Maximum opening C Total stroke 1 = Supply port 2 =...

AI JET Pneumatic switches UNIVER GROUP Roller lever - spring m5 Symbol Connection Force (a) Weight Part no. o 3/2 NC 12 sa M5 Kg 0,085 AI-9100M 3/2 NO 12 sa M5 7 0,085 AI-9110M 2/2 NC 12 sri M5 7 0,085 AI-9120M 2/2 NO (b) <2 sn M5 7 0,085 AI-9130M B Maximum opening C Total stroke 1 = Supply port 2 = Use 3 = Exhaust 3/2 NC Uni-directional roller lever - spring tube 04 13 26 Connection Force (a) Weight Part no. N Kg 235 . yi | vf/ r-- 04 CD - - WV10 tube 04 0,085 AI-9200 3/2 NO * tIt \ WV1° tube 04 4 0,085 AI-9210 2/2 NC i2^srf WV1° tube 04 4 0,085 AI-9220 2/2 NO (b) WV1° tube 04 4 0,085 AI-9230...

AI JET Pneumatic switches UNIVER GROUP Mechanical push button with screw mounting - spring tube 04 20 < CD 00 iq lO ci 3/2 NC Symbol Connection Force (a) Weight Part no. N Kg fmrio tube 04 14 0,082 AI-9300 3/2 NO mm tube 04 14 0,082 AI-9310 2/2 NC W\r1° tube 04 14 0,082 AI-9320 A Pre-stroke B Maximum opening C Total stroke D Wrench 14 1 = Supply port 2 = Use 3 = Exhaust 2/2 NO (b) NW1° tube 04 14 0,082 AI-9330 Mechanical push button with screw mounting - spring M5 Symbol Connection Force (a) Weight Part no. M5 N 14 Kg 3/2 NC 0,082 AI-9300M 3/2 NO M5 14 0,082 AI-9310M 2/2 NC M5 14 0,082 AI-9320M...

AI JET Pneumatic switches Z'U'Z UNIVER GROUP Button - spring tube 04 Symbol Connection Force (a) Weight Part no. N Kg 3/2 NC mm tube 04 7 0,065 AI-9350 3/2 NO 12/ MA, m tube 04 7 0,065 AI-9360 2/2 NC 12, M/po tube 04 B Maximum opening C Total stroke 1 = Supply port 2 = Use 3 = Exhaust 7 0,065 AI-9370 2/2 NO 12/3 (b) ^ MA m tube 04 7 0,065 AI-9380 Button yellow colour Button - spring M5 m i u Symbol Connection Force (a) Weight Part no. N Kg 3/2 NC M5 7 0,065 AI-9350M 3/2 NO M5 7 0,065 AI-9360M 2/2 NC M5 7 0,065 AI-9370M B Maximum opening C Total stroke 1 = Supply port 2 = Use 3 = Exhaust 2/2 NO I...

AI JET Pneumatic switches UNIVER GROUP Mechanical push button for panel mounting - spring tube 04 _ 39.5 33 20 2 u M3x22 Symbol Connection Force (a) Weight Part no. N Kg 3/2 NC W10 tube 04 14 0,075 AI-9400 3/2 NO ,2C W<m tube 04 14 0,075 AI-9410 2/2 NC hM1° tube 04 14 0,075 AI-9420 1 = Supply port 2 = Use 3 = Exhaust 2/2 NO 12C (b) tube 04 14 0,075 AI-9430 Mechanical push button for panel mounting - spring M5 39.5 33 20 2 U M3x22 ■ mm Symbol Connection Force (a) Weight Part no. N Kg 3/2 NC 12C M5 14 0,075 AI-9400M 3/2 NO M5 14 0,075 AI-9410M 2/2 NC M5 14 0,075 AI-9420M 1 = Supply port 2 = Use...
