AC_MIXED threaded valves G1/8 - G 1/4 - G1/2

Product catalog summary

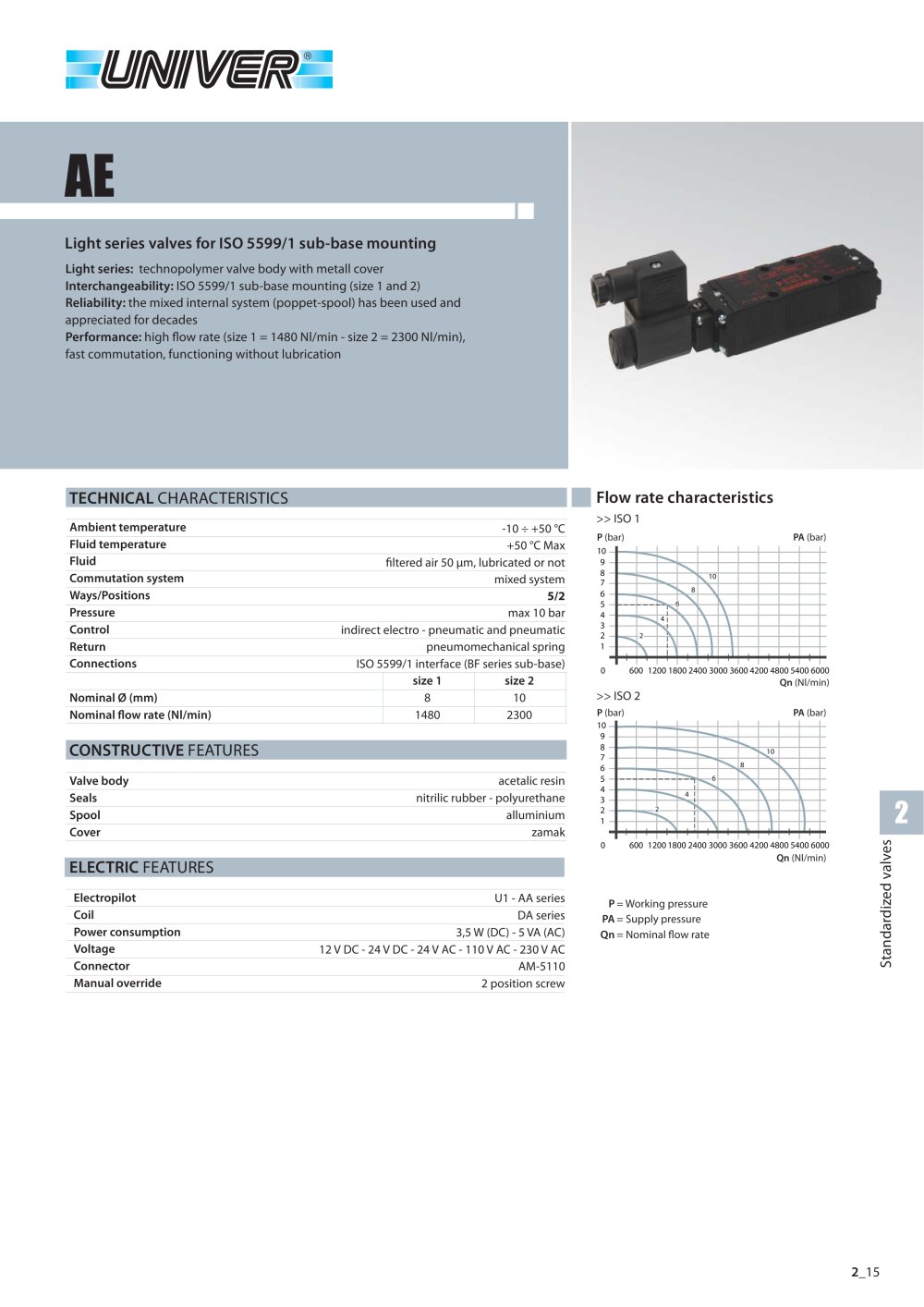

Overview: The document provides technical specifications and features of light series valves designed for ISO 5599/1 sub-base mounting. These valves are characterized by their technopolymer valve body with a metal cover, offering high reliability and performance.

Specifications:

Interchangeability: Compatible with ISO 5599/1 sub-base mounting (size 1 and 2).
Performance: High flow rate with size 1 at 1480 Nl/min and size 2 at 2300 Nl/min. Fast commutation and can function without lubrication.
Technical Characteristics: Operating temperature range from -10 to +50 °C, suitable for filtered air (50 μm), with a mixed commutation system (poppet-spool). Maximum pressure is 10 bar.
Electric Features: Electropilot with power consumption of 3.5 W (DC) and 5 VA (AC). Available voltages include 12 V DC, 24 V DC, 24 V AC, 110 V AC, and 230 V AC.

Constructive Features:

Materials: Valve body made of acetalic resin, seals of nitrilic rubber and polyurethane, spool of aluminum, and cover of zamak.

Control and Return Systems:

Single/double pneumatic impulse and electric impulse options available with pneumomechanical spring return.
Various part numbers and configurations for different sizes and control types.

Sub-base and Connection Options:

Multiple sub-base configurations including single, manifold, and modular systems with various connection types (in-line, dorsal, side).
Specific part numbers for each configuration and connection type.
