MAS Kiln Burner Catalogue

Product catalog summary

Introduction to Secondary Fuels: The integration of secondary waste fuels in kiln burners necessitates evaluating technical feasibility, economic conditions, legal regulations, and the investment-to-benefit ratio. These factors impact the chemical process, fuel quality, cost savings, and adherence to environmental standards.

Liquid Secondary Waste Fuels: Specialized oil lances like the UNIGRESS DDM-X are used for firing liquid waste fuels, accommodating various viscosities and solid components for efficient combustion and maintenance.

Solid Secondary Waste Fuels: Solid waste fuels are optimally fired using pneumatic conveyance through the kiln burner. The Pneumo-Swirl technique ensures complete combustion, considering load factor, medium velocity, particle sizes, and air flow.

Equipment Specifications: Specifications include standard pipe dimensions and specific air and waste flow rates. The UNIGRESS ZL oil lance offers advanced control for efficient burner operation without nozzle changes.

Waste Oil Lance UNIGRESS DDM/X: Designed for burning liquid waste fuels with compressed air or steam atomization, accommodating high or low viscosity fuels and solid particles with low wear and pressure losses.

Burner Automation: The Unitherm M.A.S.-burner can be automated for enhanced control and efficiency, allowing remote operation and integration with burner management systems.

Divisible Burner Jacket Tube: This option facilitates easier maintenance and cost savings by allowing partial removal for relining, reducing space and inventory costs.

Extension of Burner Refractory Life: Solutions like cast-ribs and ceramic bricks reduce thermal stress and abrasion, with kiln condition analysis necessary for appropriate design selection.

Pneumo-Swirl Device: Enhances solid waste fuel combustion by inducing rotational flow, adjustable for flame length and burnout time, integrated into the burner's primary air system.

Calciner Burners: UNICAL calciner burners support both traditional and alternative fuels, accommodating various performance ranges and fuel types.

Fuel Types and Applications: Fuels such as coal, petcoke, and natural gas are used in cement production, with systems ranging from 60 MW to 165 MW.

Top Fired Calciner: Designed for optimal fuel distribution and complete combustion, focusing on good mixing, retention time, and low NOx emissions.

Hot Gas Generators: Unitherm Cemcon designs hot gas generators for direct air heating, available in HG (350°C – 1,300°C) and HR (100°C – 350°C) types, with varying performance ranges and fuel types.

Fuel Supply Systems: Include unloading pump stations, pressure reducing stations, and burner regulating valve trains for efficient fuel supply in kiln and calciner operations.

Burner Management Systems (BMS): Optimizes burner and kiln operations, ensuring safety and flexibility, designed according to VDE and EN regulations with remote and local operation capabilities.

Thermal Oil Boilers: Designed for fuel oil preheating in the cement and lime industry, offering low emissions and minimal maintenance, operating up to 300°C with capacities from 500 kW to 10,000 kW.

Spares & Maintenance: M.A.S.-burners are low maintenance, featuring threaded fuel nozzles and high heat-resistant materials, allowing maintenance by plant personnel without specialist intervention.

Catalog excerpts

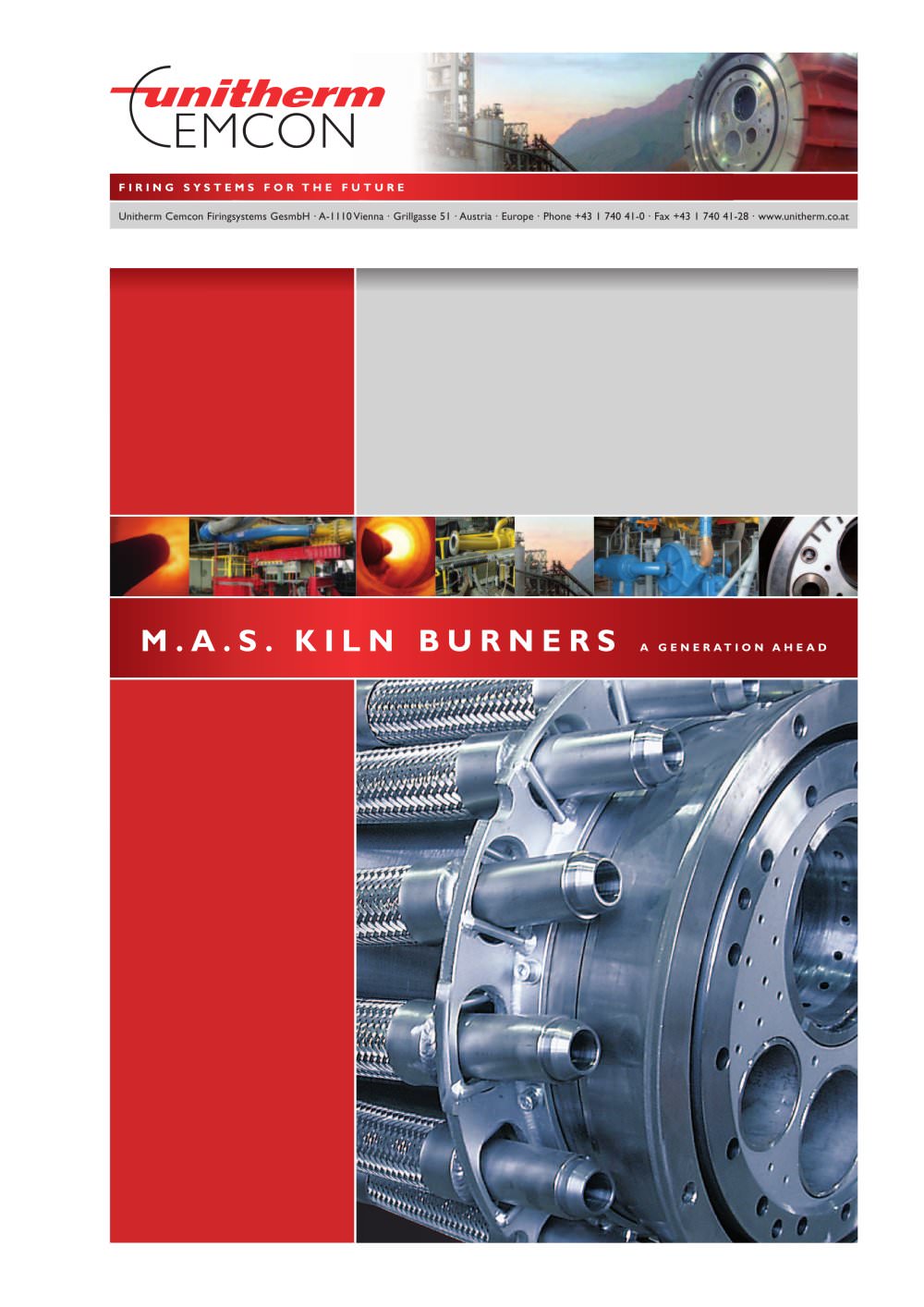

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at >

Open the catalog to page 1

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at n THE M.A.S.KILN BURNER > n Mono Air-duct System ז Kiln Burner > n How it works > n Flame setting with the M.A.S.Kiln Burner > n Reproducible Flame Setting > n Mixing of Secondary Air into The Flame > n Primary air feeding > n Burner Accessories > n Burner Carriages n SECONDARY WASTE FUELS n FUEL OIL LANCES > n UNIGRESS - ZL > n UNIGRESS DDM/X n SPECIAL FEATURES > n Burner Automation > n Divisible jacket tube for M.A.S.Kiln...

Open the catalog to page 2

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at M.A.S-Burner systems are custom tailored to combine our well proven standard techniques with advanced solutions to meet YOUR KILN REQUIREMENTSFUELS Standard fuels:regular fuel oils,natural gas,high and low caloric coal Waste fuel oils:waste fuel oil with solids,solvents,high viscosity oils Ņ Solid secondary fuels:sewage sludge,plastics,seed,wood chips PERFORMANCE 10 MW up to 250 MW(higher firing performance upon request)...

Open the catalog to page 4

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at The most important design criteria for a kiln burner is the manner of primary air intake and handling .Primary air is significantly responsible for effective flame shaping to place the sintering zone where needed. M.A.S.-KILN BURNERHOW IT WORKS Adjustment of the flame shape is performed by means of a flame settingdevice which is externally located and easily accessible on the burnerגscold side.A rod and pinion drive is...

Open the catalog to page 5

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at The flame setting device is designed with consideration of the kiln dimensions and is operated from the burnerגs cold end.The numbers on the scale of the flame setting device refer directly to the adjusted deflection angle of the MAS-nozzles.The numbers range from 1 to 9 and are called scale numbersӔ.Scale number adjustment to set1 the longest possible flame 9 the shortest possible flame any intermediate settingsflames...

Open the catalog to page 6

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at The important factors for flame shape adjustment of the M.A.S.-Burners are the setting of: In addition,the combustion quality can be influenced by central air flow. SCALE NUMBER (long or short flames) and the MAS AIR PRESSURE(sharp or soft flames) Pressure of MAS-airScale numberPressure of Central air Pressure Scale number Pressure flow setting of M.A.S.airon flame setting deviceflow setting of central-airincrease or decrease...

Open the catalog to page 7

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at The M.A.S.injection system creates single air jets and,between these air jets are created zones with negative pressure .In this way,hot secondary air is drawn strongly into the flame.This provides a quick and homogenous mixing of secondary air with fuel and combustion gases,a rapid ignition ,a hot sharp flame , significant heat transfer to the clinker bed and excellent burnout conditions.Unitherm Cemcon produced traditional...

Open the catalog to page 8

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at IGNITION BURNER For rotary kiln burners the installation of an ignition burner is required according to EN 746-2 for operation without supervision. Ignition fuel: Natural Gas,Propane Gas or Diesel Kind of ignition: High voltage Flame control: Ionization rod Ignition air: Taken from primary air,no additional fan necessary INTERNAL FLAME SCANNER The unit consists of: We provide דinternal flame scanning enabling a direct view...

Open the catalog to page 10

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at WASTE FUELS FIRED THROUGH THE KILN BURNER Beginning in 1996,Unitherm Cemcon was one of the first companies to supply kiln burners fired with solid secondary fuels. Pneumo-Swirl technique. Using secondary waste fuels requires consideration of the following: Liquid secondary waste fuels fired through the kiln burner: Technical feasibility - chemical influence on the clinker process Economic conditions - fuel regularly supplied...

Open the catalog to page 12

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at TYPICAL SOLID SECONDARY WASTE FUELS: wood saw dustshredded wasteshredded plasticsSewage sludge,sunflower seed,animal meal,pulverized fuel ash,and many othersׅ CONSIDERATIONS:Load factor: Load factor ranges primarily depend upon waste fuel used,bulk densityand length of conveying distance. Medium velocity: Velocity should be within the range of 27 m/s up to 45 m/s (90 -145 ft/s) Particle sizes: The relation between specific...

Open the catalog to page 13

FIRING SYSTEMS FOR THE FUTURE Unitherm Cemcon Firingsystems GesmbH A-1110 Vienna ׷ Grillgasse 51 Austria ׷ Europe Phone +43 1 740 41-0 ׷ Fax +43 1 740 41-28 www.unitherm.co.at OIL LANCE UNIGRESS ZL FOR KILN FIRING SYSTEMS The UNIGRESS ZL high pressure fuel atomizer lances are designed for regular > forward flow but also for the more sophisticated forward/return flow controlmode .This enables kiln burner oil operation without nozzle change due to a total control range of 1:8 on forward/return flow control mode. FROM START-UPTO FULL LOAD Prerequisite: The fuel oil valve train (as a control unit)...
