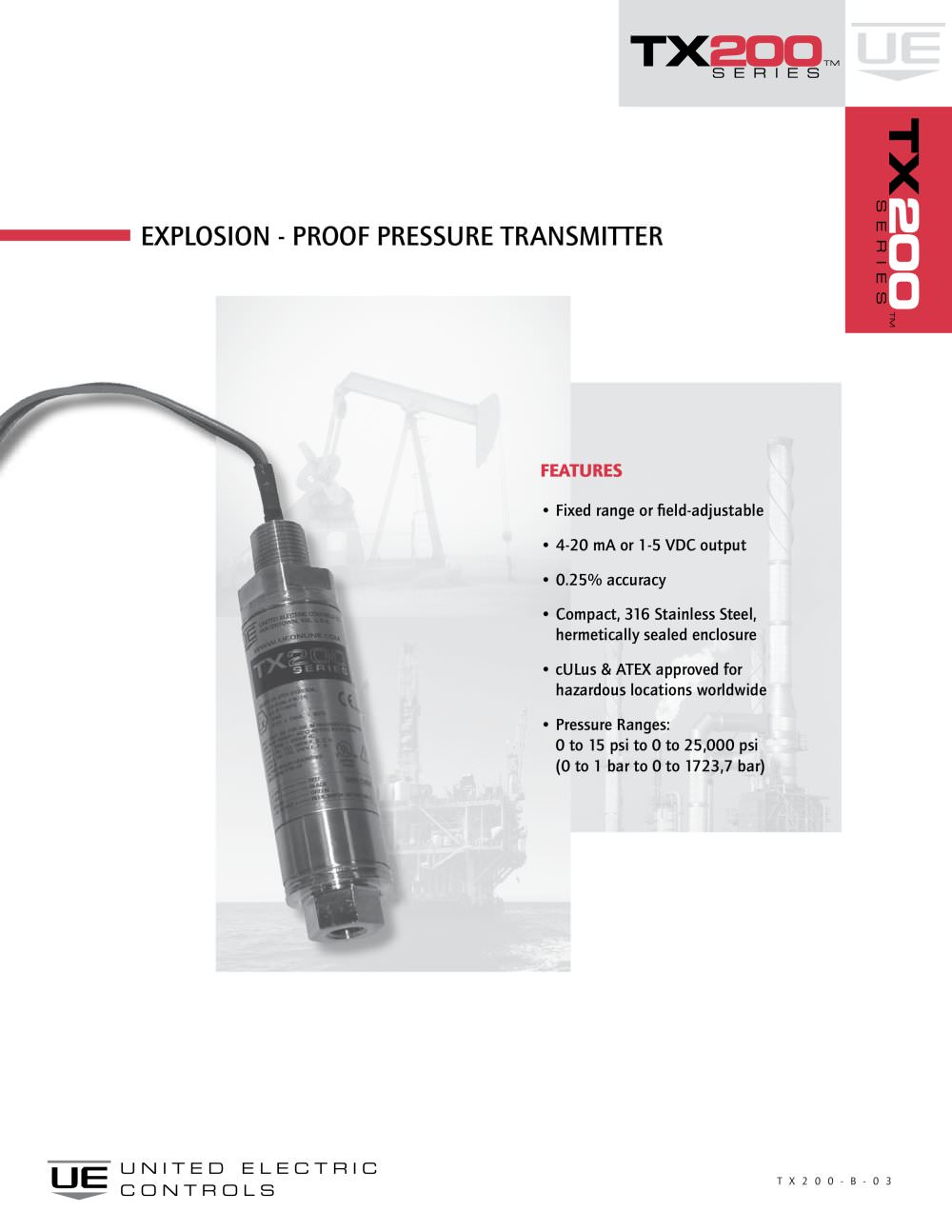

Overview: The United Electric TX200 is a compact, explosion-proof pressure transmitter designed for harsh environments, particularly in the petrochemical and oil and gas industries. It features a hermetically sealed 316 stainless steel enclosure and offers both fixed and field-adjustable models.

Key Features:

Fixed range or field-adjustable options.
Output options of 4-20 mA or 1-5 VDC.
High accuracy of 0.25%.
Pressure ranges from 0 to 15 psi up to 0 to 25,000 psi.
cULus and ATEX approved for hazardous locations.

Specifications:

Performance: Non-linearity of 0.1% to 0.3% FSO, hysteresis and repeatability of ±0.1% FSO, and a response time of 10 mSec.
Electrical: Supply voltage of 10 to 36 VDC, with circuit protection against transient surges and reverse polarity.
Mechanical: Wetted materials include 316 and 15-5 stainless steel, with various pressure connection options.

Applications: Suitable for offshore rigs, subsea valve monitoring, pipeline monitoring, and other industrial applications requiring robust pressure measurement.

Technology: Utilizes piezo-resistive and bonded foil strain gauge sensors with ASIC technology for signal conditioning and temperature compensation.

Approvals: Certified for use in hazardous locations in the US, Canada, and Europe, meeting various UL, CSA, and ATEX standards.

Ordering Information: Part numbers are constructed based on type, pressure range, reference, connection, and options, allowing customization for specific needs.

Recommended Practices: Users are advised to adhere to pressure and temperature limits to avoid damage and ensure longevity of the transmitter.

Installation and Safety Guidelines:

A backup unit is essential for applications where failure could endanger life or property. High or low limit switches are necessary to prevent dangerous conditions.
Install the unit in environments free from shock, vibration, and extreme temperature fluctuations. Ensure moisture does not enter the enclosure through electrical connections.
Do not alter or modify the unit post-shipment without consulting United Electric (UE).
Regular monitoring and preventative maintenance are crucial for critical applications.
Adhere to the specified supply voltage and wiring guidelines to prevent damage.
Avoid mounting the unit in temperatures exceeding published limits.

Limited Warranty:

The product is warranted to be free from defects in material and workmanship for 36 months from the date of manufacture. Defective products will be repaired or replaced by the seller.
The warranty does not cover defects due to tampering, misuse, neglect, improper storage, or unauthorized disassembly.
All other warranties, including implied warranties of merchantability or fitness for a particular purpose, are disclaimed.

Limitation of Liability:

The seller's liability is limited to repair or replacement under the limited warranty. The seller is not liable for special, indirect, consequential damages, or loss of profits or production.
