Electronic Sensor Concrete Paver UNiSTEEL SRCP 750

Product catalog summary

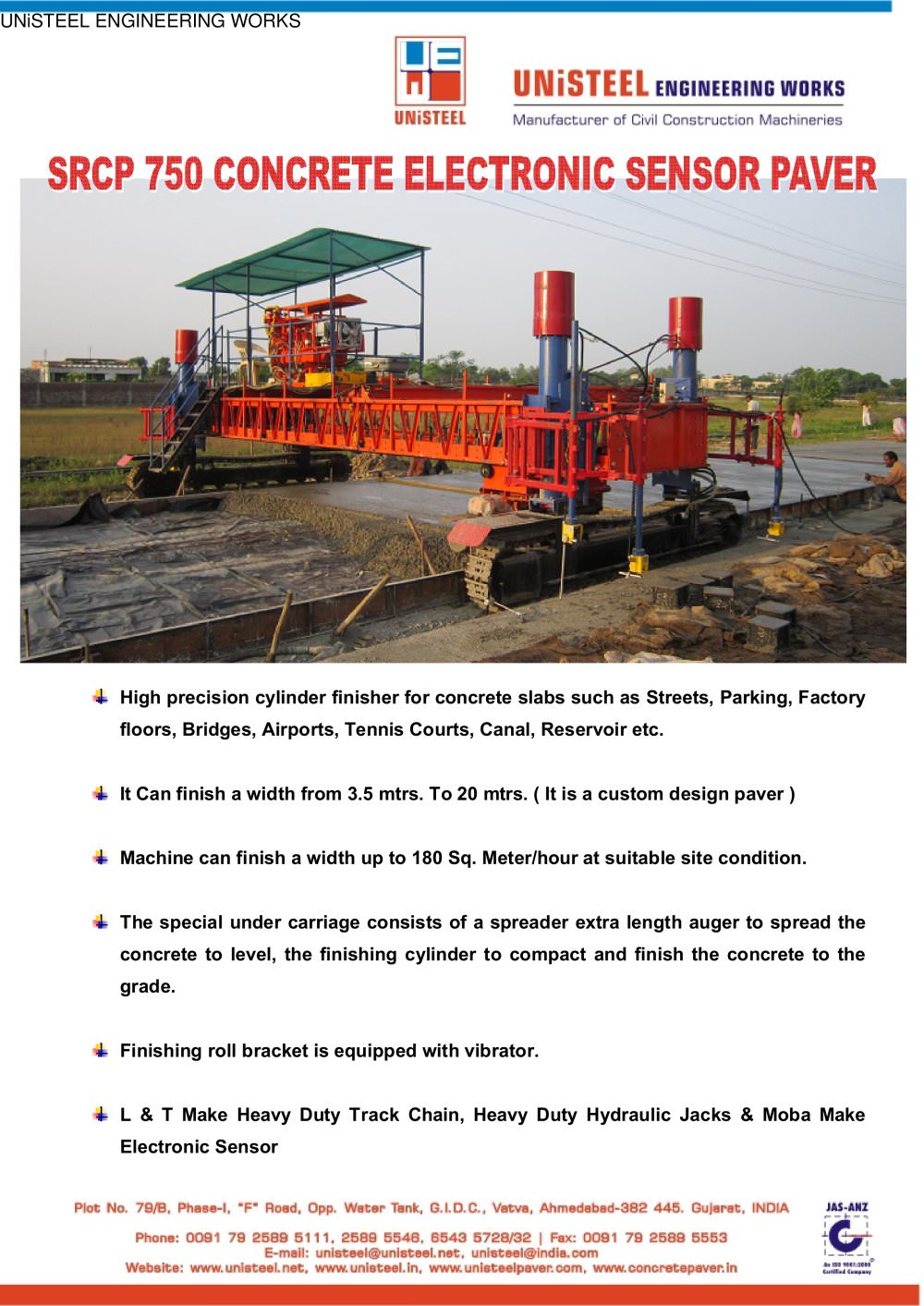

Overview: The document describes a high precision cylinder finisher designed for concrete slabs used in various applications such as streets, parking lots, factory floors, bridges, airports, tennis courts, canals, and reservoirs. It is a custom design paver capable of finishing widths from 3.5 meters to 20 meters and can cover up to 180 square meters per hour under suitable site conditions.

Key Components:

Under Carriage: Features a spreader auger for leveling concrete and a finishing cylinder for compacting and finishing to grade. It includes a vibratory finishing drum and needle vibrators.
Prime Mover: Available in two configurations, with or without a needle vibrator. The power specifications vary between 15HP and 20HP for different components.
Finishing Drum: Measures 4 feet in length and 10.7 inches in diameter, rotating at 195 rpm with a vibration rate of 1500 vpm, ensuring a quality finish through computerized balancing.
Spreader Auger: Designed for durability with hard-faced welding, it operates in the direction of the machine's travel.
Traction System: Utilizes a heavy-duty hydraulically driven track chain made by L & T.
Sensor System: Equipped with a Moba electronic sensor for maximum accuracy.
Hydraulic System: Includes heavy-duty hydraulic jacks and specific oil capacities for the fix console (110 liters) and under carriage (140 liters).

Technical Specifications: The document provides detailed technical specifications for the components and systems of the cylinder finisher, emphasizing its precision and efficiency in concrete finishing tasks.
