KwikSense

Product catalog summary

Overview
The Uniphos KwikSense Smart Digital Gas Transmitter is a versatile device designed for detecting and continuously monitoring hazardous gases in industrial environments. It supports over 100 smart gas sensors, including those for oxygen, toxic gases, combustible gases, and volatile organic compounds (VOCs).

Key Features

Compatibility with multiple sensor technologies: Electrochemical, NDIR, Pellistor, PID, Solid State, and MPS.
Pre-calibrated smart sensors with plug-and-play capability.
Digital communication via MODBUS over RS-485 and HART 7.0 compliance.
Non-intrusive calibration and bright OLED display.
Industry-standard 4-20mA analog output.
ATEX and IECEx certified for safety in explosive environments.

Variants

KwikSense Lite: A cost-effective solution with a single gas swappable sensor and a single potential-free relay contact for alarms. MED certification for oxygen and flammable gases.
KwikSense RD: A remote display unit that duplicates the transmitter display, useful for hard-to-view locations or when a second display is needed.

Specifications

Operating voltage: 18V to 30 VDC.
System type: Microcontroller-based instrument with non-intrusive calibration.
Display: 8 x 2 OLED.
Output: 4-20mA, MODBUS over RS-485, HART over 4-20 mA.
Enclosure: Flameproof, IP66 rated, made from cast aluminum alloy or SS-316.
Operating conditions: Temperature range from -40 to +65°C, humidity 0-95% RH.

Sensor Modules
The document lists various gases with their respective detection ranges, resolutions, and sensor technologies, such as Acetic Acid, Ammonia, Carbon Dioxide, Methane, and more.

Accessories

Weather Shield cum Calibration Adapter: Protects sensors from environmental changes.
Collection Cone: For gases lighter than air.
Pipe Mounting Bracket: For mounting on posts or structures.
Duct Mounting Kit: For HVAC systems.
Flow Through Adapter: For process gas monitoring applications.

Certifications

ATEX and IECEx certified for explosive environments.
SIL-2 certified for safety integrity level.
MED certification applicable for KwikSense Lite.

Contact Information
Manufactured by Uniphos Envirotronic Pvt. Ltd, with contact details provided for both the manufacturing and marketing offices in India.

Catalog excerpts

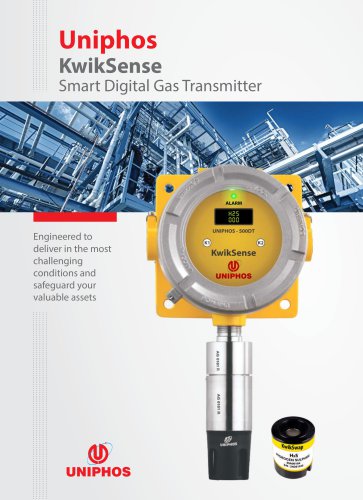

Engineered to deliver in the most challenging conditions and safeguard your valuable assets

Open the catalog to page 1

Delivering Excellence for over 30 years Uniphos KwikSense Smart Digital Gas Transmitter The KwikSense smart digital gas transmitter is a universal transmitter which is compatible with all our smart gas sensors and capable of accepting more than 100 smart gas sensors. It is a field mountable device suitable for the detection and continuous monitoring of hazardous gases at industrial plants. KwikSense is available for a large number of gases which include oxygen, toxic gases, combustible gases and volatile organic compounds (VOCs). Digital Communication on MODBUS over RS-485 Industry standard 4-20mA...

Open the catalog to page 2

Remote Display RD-Remote Display The Uniphos KwikSense Lite Transmitter offers uses a low-cost solution to their gas monitoring needs. The KwikSense Lite comes with a single gas swappable sensor facility and a single potantial free relay contact for alarm. MED certification is applicable for Oxygen and Flammable gases. The Uniphos KwikSense RD enables users to duplicate the transmitter display at a second remote location. This is particularly useful if the gas transmitter is located in a location where its display is difficult to view or in case a second display is required. It can act as a controller...

Open the catalog to page 3

KwikSense Smart SensorsSensor Technology at its bestSmart Sensor Modules available for Gases Range Resolution Technology 087A Mono Methyl Amine 022A Vinyl Chloride (Vinyl Chloro Monomer) • Multiple Sensor Technologies; Electrochemical, NDIR, Pellistor, PID, Solid State & MPS '* Easy to calibrate with plug and play capability Sensors we use in our KwikSense Transmitters can be considered the heart of the transmitter. We develop and manufacture most of our smart sensors. Backed with our vast experience, we offer dependable and proven digital gas sensors that can detect even small concentrations...

Open the catalog to page 4

Do more with an exclusive range of Accessories KwikSense Premium Accessories There are a range of accessories for the KwikSense transmitter that can be used in a wide variety of applications. These include mounting bracket, collection cone, duct mounting kit and weather shield cum calibration adapter. Pipe Mounting Bracket Weather Shield cum Calibration Adapter Designed to protect the sensor from water splashes And changes in environmental conditions. This is recommended to be fitted to a KwikSense transmitter sensor for outdoor exposed applications. Allows the KwikSense transmitter to be installed...

Open the catalog to page 5

Sensor technology EC/PEL/NDIR/PID/SS/MPS EC/PEL/NDIR/PID/SS NA System Type ^Controller based instrument ^Controller based instrument ^Controller based instrument (non intrusive calibration) (non intrusive calibration) (non intrusive operation) Display 8 x 2 OLED Display 8 x 2 OLED Display 8 x 2 OLED Display Sampling type Diffusion Diffusion NA Sensor Swappable Smart Sensor Swappable Smart Sensor NA (Industrial std. 4-20mA input) LED's Tri-color LED Tri-color LED Tri-color LED Alarms Two user settable alarms Two user settable alarms Two user settable alarms MODBUS over RS-485 MODBUS over RS-485...

Open the catalog to page 6
