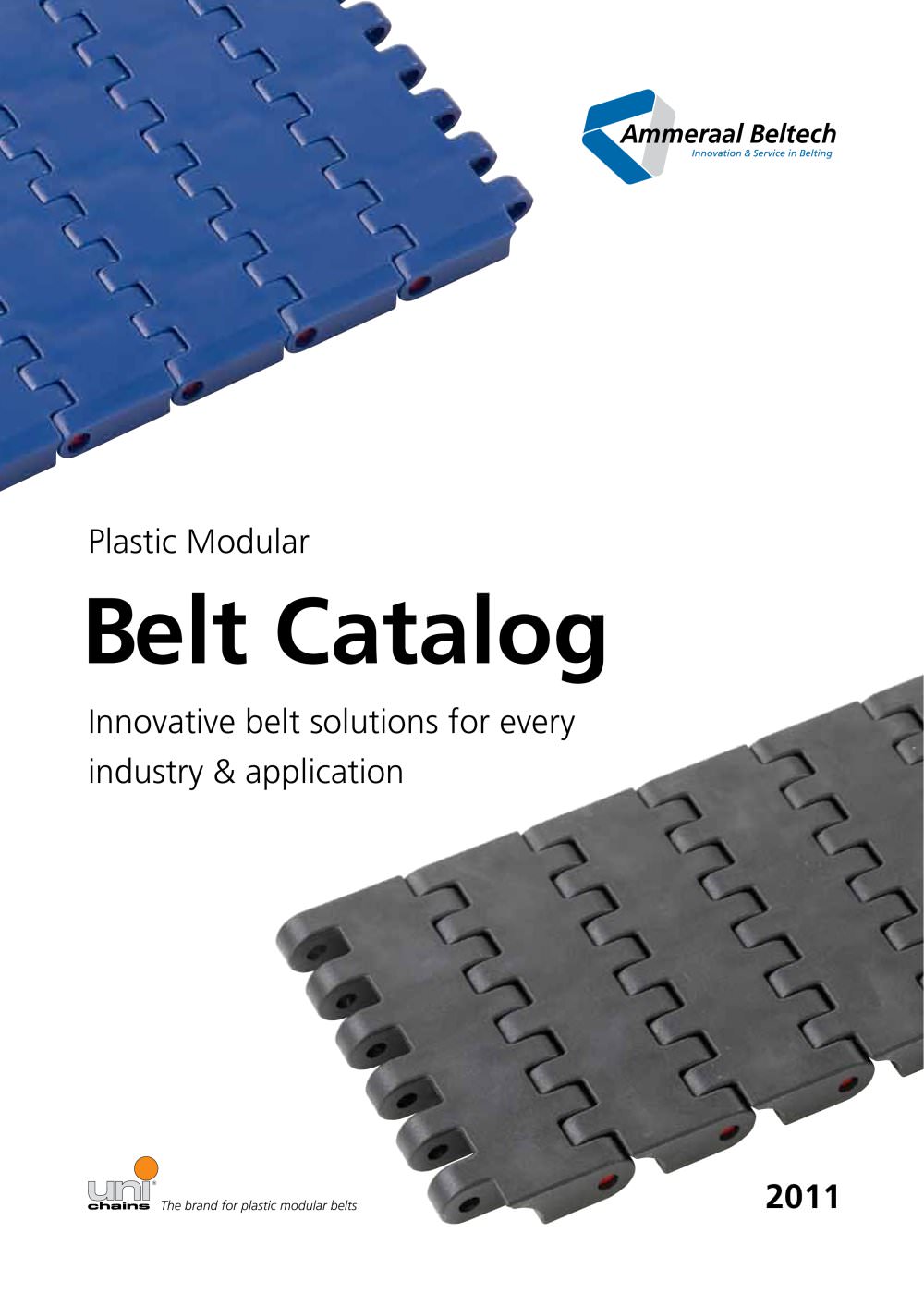

^Ammeraal Beltech Innovation & Service in Belting V A > > # f Plastic Modular Belt Catalog Innovative belt solutions for every ^ industry & application ^ s% % \ \ \ ^ ^ Kz " chalns The brand for plastic modular belts

Plastic Modular Belt Catalog Innovative belt solutions for every industry & application

Icon & Color Slection 6 Standard Sideflexing both directions Sideflexing one travel direction Straight running both directions Straight running one travel direction Patent pending or patented Sprockets Two-part sprockets Retainer ring Rubber inserts Idler Pin Lockpin Solid lockpin Snap Pin A1 Snap Pin A2 G-lock Rodlock Trilock Endlock Pin diameter AmFlight Pitch Materials Backflex radius Accessories Product support Finger plate Side guard Reinforcement link Lane divider Standard and alternative Belt Colors Blue Grey Orange Brown Black Purple Red lg Light Grey t Tan (Beige) dg Dark Grey m...

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } uni Material Slection 7 0J« uni Belt Material Slection Material grades Temperature °C Temperature °F Load/ permissible load index FDA POM - Polyoxymethylen (pom-d/di/lf/slf/nl/s/sx/nl) -40 to +90 - 40 to +194 100% POM POM-DK - Polyoxymethylen -40 to +90 - 40 to +194 100% POM POM-DAS/NLAS - Semi conductive...

uni Material Slection 8 uni Belt Material Slection POM-DK POM-LF POM-SLF |o |4 |br| d| 4 g |4 n |b |br| d| |dg| 4 g |4 n t w y twy POM-DK is a reinforced POM polymer designed for applications where high wear r驩sistance is needed and/or high conveyor speeds are required. The material is typical-ly used for wear parts on sideflexing belts or in applications where very high wear resistance is required. POM polymers with improved self lubrica ting components. POM polymers with self lubricating addi tives to obtain the lowest possible friction resistance. POM-NL POM-DAS POM-NLAS |br| d| 4 g |4 n...

uni Material Slection 9 uni Belt Material Slection PP PP-I PP-MI b 14g14n1° |p| III |db||dd t w y t w y Polypropylene is a thermoplastic material with very good chemical resistance proper-ties. PP is an economical material for appli驭cations with high temperatures. Polypropylene with improved impact resistance and improved properties at low temperatures. Use of PP-I in hot water should be avoided. PP-MI is a metal detectable polypropylene with improved impact resistance to allow detection with both metal detectors and X-ray machines in case of belt breakage. PP MI is used to increase safety...

uni Material Slection 10 0J« uni Belt Material Slection PA6-FR PA6 B D LG xl N T W PA6-GF Bx N Flame retardant polyamide is a fire restric-ting material used in surroundings where there is a danger of the chain being igni-ted. The PA6- FR material is rated as V- 0 which is the best classification according to UL 94 standard to avoid burning. Polyamide PA6 is a thermoplastic material. The combination of mechanical properties and chemical resistance makes this material suitable for many applications. Polyamide has a high resistance to wear and dynamic loads. This material is primarily used...

uni Material Slection 11 ta» uni Pin Material Slection Austenitic Stainless Steel ss304 Austenitic Stainless Steel ss316 PP Austenitic quality containing 18% chrome and 8% nickel. Werkstoff no. 1.4301 AISI 304. 18/8 CrNi steel is non-magnetic in the entire recommended temperature range. The austenitic quality has a very high degree of corrosion resistance in oxidizing sur-roundings. However, in connection with evaporation of chloride-containing fluids, the 18/8 CrNi steel is not recommended, as stress corrosion can occur over time. Austenitic quality containing 18% chrome, 10% nickel and 3%...

uni Material Slection 12 0J« uni Reinforcement Link Material Slection Austenitic quality containing 18% chrome, 10% nickel and 3% molybdenum. Werkstoff no. 1.4404 AISI 316. 18/10 CrNi steel with molybdenum is non-magnetic in the entire recommended tem perature range. The austenitic quality has a very high degree of corrosion resistance in oxidizing surroundings. Molybdenum has been added to increase corrosion resistance particulary in chloride containing environ ments. uni Light EP, uni OPB, uni L- SNB and uni BLB Austenitic quality containing 18% chrome and 8% nickel. Werkstoff no. 1.4301...

Approvals 13 FDA Approvals USDA Approvals US Department of Agriculture USDA Dairy Approval FDA US Food and Drug Administration US Federal Agency approves materials for use with food contact. The uni-chains product range holds the following FDA approved materials: POM-D, POM-DI, POM-LF, POM-SLF, POM-NL and POM-S Օ PP, PP-I, PP-MI, PP-HW PE, PE-I, PE-MI Օ PVDF PA6, PA6.6, PA6.6-GFH Օ UV additive PBT USDA evaluates and accepts products and equipment for use in the dairy, meat, and poultry industries. uni-chains belts listed on this page are included in the USDA's Accepted Meat and Poultry...

Ordering Guide 14 Rfrence No. for Belt Systems PP-HW-SS BLB-18->12 in. LIGHT BLUE Belt color code Belt width in inch Surface opening Standard belt type Standard pin material Standard belt material Series Codes Pitch Description Code mm in. 12.7 0.50 uni M-QNB system 11 12.7 0.50 uni M-SNB system 22 12.7 0.50 uni M-TTB system 64 12.7 0.50 uni M-PNB system 83 19.05 0.75 uni Light system 28 25.4 1.00 uni QNB system 14 25.4 1.00 uni CNB system 19 25.4 1.00 uni Flex SNB system 21 25.4 1.00 uni Flex ASB system 65 25.4 1.00 uni SNB M2/M2A system 75 25.4 1.00 uni S-MPB system 78 27.9 1.10 uni OWL...

Ordering Guide 15 Belt Code Master Example 1 60PPHWSS182LB Series code Belt material Pin material Opening in % Variant Width group Color 60 PPHW SS 18 2 LB uni BLB Hot water polypropylene Stainless steel 18% opening W > 304 mm (12 in.) Light blue Example 2 74NLASPA6600RU1K Series code Belt material Pin material Opening in % Variant Width group Color 74 NLAS PA6.6 00 RU 1 K uni CPB POM-NLAS PA6.6 0% closed Rough 6 in. < W < 12 in. Black Belt Description Master Example 1 PPHW-SS BLB-18->12 in. LIGHT BLUE Belt material Pin material Series Opening in % Variant Width group Color PP-HW SS uni BLB...
