Span-Track® Unex Full-Line Brochure
20Pages

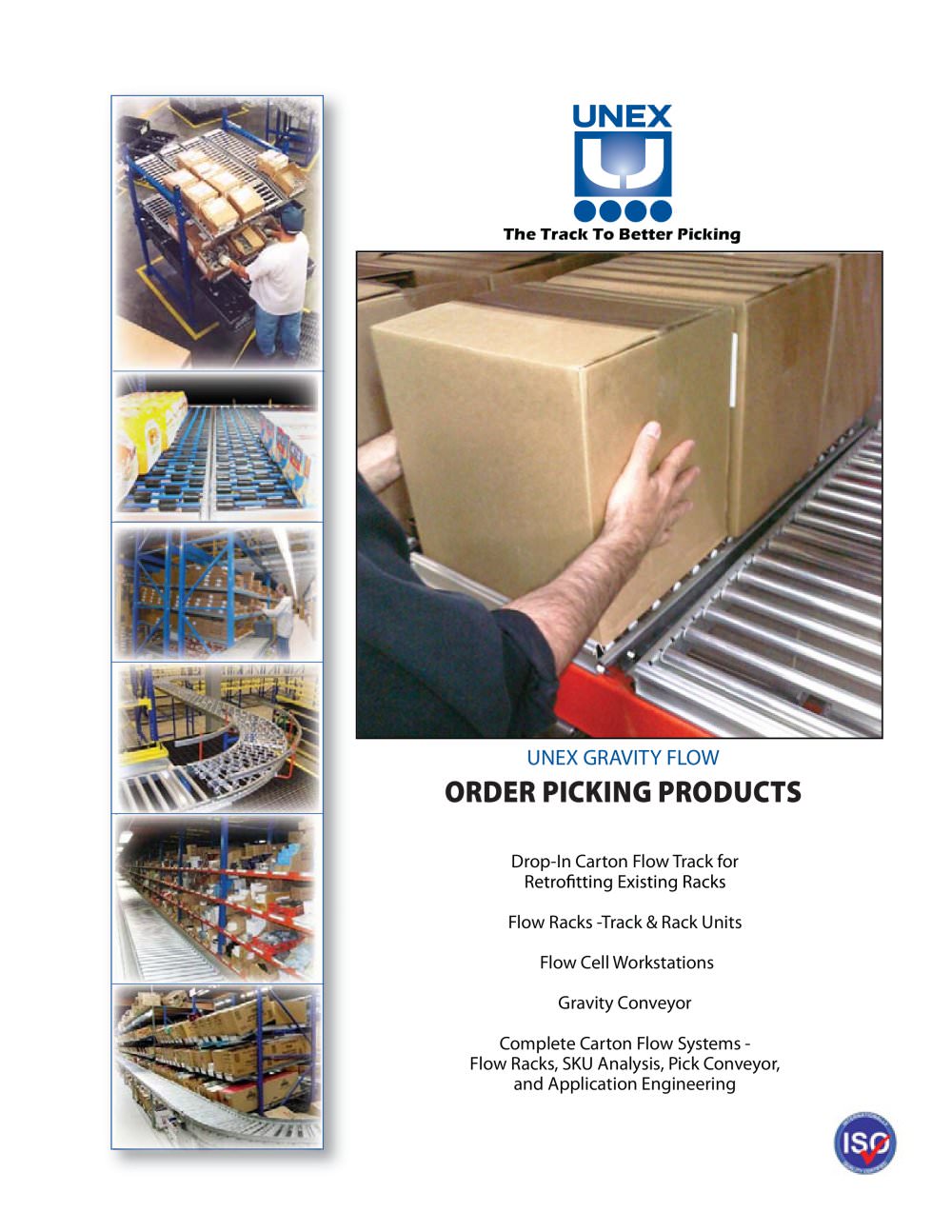

Drop-In Carton Flow Track for Flow Racks -Track & Rack Units Flow Cell Workstations Gravity Conveyor Complete Carton Flow Systems - Flow Racks, SKU Analysis, Pick Conveyor, and Application Engineering UNEX GRAVITY FLOW ORDER PICKING PRODUCTS The Track To Better Picking

Page 4-9 “We used existing rack and preserved vertical cubic space….the track is durable and priced competitively… What do I think of it? I’m ordering 5,000 more sections”. -Mike Munday, VP Operations Thomas & Howard “I really can’t understand why anyone would recommend plastic wheel track when they could have a much more substantial product”. - John Pappas, President C.S. Goodale Company “Span-Track fits right into our rack, handles twice the capacity and there aren’t any hang-ups”. -Mike Shultz, Warehouse Manager Quidel Wholesale Unex, established in 1964, is dedicated to developing and...

Why Carton Flow? Carton Flow is a material handling solution that addresses the two major cost drivers in today's distribution and manufacturing facilities - labor and space costs. Order Picking Order picking accounts for 40-60% of an operation’s total labor cost. Most facilities use pallet racking or shelving as their storage medium. These storage mediums are static (product remains in its stored position). Once the product in front is picked, additional picks require reaching, bending, and pulling. This adds time to the pick process and puts additional strain and stress on employees....

4 Span-Track Carton Flow Track Span-Track Can be Added to Any New or Existing Pallet Rack. No Shelves or Intermediate Support Required! •Fits Any Rack •Drop-In Design •No Shelves Needed Superior Flexibility Simply pick up track to easily rearrange/reslot Span-Track to match SKU’s. High Capacity, High Durability Span-Track takes the abuse of active warehouses and assembly plants. Galvanized steel side channels, 3/4” diameter tempered aluminum full width rollers and full length 3/16” steel axles handle loads up to 50 lbs. per ft. Unrivaled Flow Full-width rollers provide maximum carton...

Low Profile Span-Track 5 (Actual track width is 3/4” greater than nominal) Overall Width 2-1/8” 2-5/16” Nominal Width 6”, 9”, 12” and 15” widths available TOP OF ROLLER *Standard Low Profile over 10’ requires an intermediate beam, creating two unsupported spans – the longer of the two spans dictates capacity. Capacitiy & Lengths Between Beam Dimension (Unsupported Span) Unsupported Span Std. Span-Track Load Capacity Span-Track 3D Load Capacity 3’0” - 6’0” 50 lbs./ft. N/A 7’0” 50 lbs./ft. 50 lbs./ft. 8’0” 40 lbs./ft. 50 lbs./ft. 9’0” 30 lbs./ft. 50 lbs./ft. 10’0” 20 lbs./ft. 50 lbs./ft....

6 Low Profile Span-Track Low Profile Knuckle Each-Pick Made Easy Low Profile Knuckle adds a 20° angle to improve visibility, access and accuracy at the pick point. The track does it all without altering or adding to rack structure, and without consuming precious aisle space. Widths: Low Profile Knuckle comes in 6”, 9”, 12” ,15” track widths. Knuckle Lengths: 12”, 16”, 20” and 24”. Track lengths, load capacities, construction and installation are identical to standard Low Profile. S9 Hangerless Span-track S9 Hangerless Span-Track can be added to any standard pallet rack with step beams. It...

Adjustable Pick Tray Unex’s full-width adjustable Pick Tray maximizes view and access in ‘each pick’ applications. Tilted product presentation greatly improves pick rate and accuracy. Adjustable Pick Tray requires 18” or 24” uprights or posts. Bridge Hangers connect Span-Track sections to Pick Tray. “Drop-in” design makes installation easy. Galvanized steel Pick Tray is rated at 50 lbs./ft. Pick Tray Widths: 5 ft. to 10 ft. Standard Depth: 18” and 24” with a 2” or 4” front stop. Optional label holder attaches to tray front. Note: Tray available in other sizes Add-On Tray Attaches to...

8 Deck Span-Track Drop-in Carton Flow Track for Single Deep Pallet Rack Deck Span-Track drops onto pallet rack beams for instant, ready-to-roll live storage. No shelves, hangers or retainers required. Adjust beams & add track. One worker, no tools. Cartons Always Flow to Front Push back design provides easy loading – keeps cartons on track, up front and easy to retrieve. Maximizes Density Vertical spacing of track is dictated by the height of products on each level. Usable storage space can be increased up to 50% over traditional static shelving storage. Full-Width Rollers 3/4” dia....

9 High Profile Span-Track High Profile installs on any pallet rack beam. Track fully adjustable left, right, front and back, providing complete flexibility to slot/reprofile carton flow to match SKU’s. Locks Onto Beam 14 gauge galvanized Retainer Angle attaches to the full length of front and rear beams. Lock Arm secures Span-Track to the rear beam. Simple lock/unlock action enables one person to easily adjust or relocate track without tools. Built-In Functionality Front and Rear End Features: Front end of High Profile Span- Track acts as a raised carton stop. Rear end has a load bar to...

Upgrade Your Carton Flow... Replace Plastic Wheel Rails in Existing Rack and Shelves • NO Product Relabeling • NO Reconfiguring SKU’s • NO Changes to Pick-to-Light • NO More Jam-Ups! Replace Your Plastic Wheels for the Last Time! Fits Your Shelves ShelfTRACK carton flow is the original full-width-roller track that replaces existing plastic wheel rails. “Drop-in” design for fast, easy installation in your flow rack shelves. ShelfTRACK full-width rollers provides 300% more product contact than plastic wheel for superior flow. Steel side channels, axles and aluminum rollers withstand tough...
