Overview
UNEX® Manufacturing, Inc. offers innovative storage solutions with their Span-Track® system, designed to enhance space utilization and efficiency in operations. The Flow Cell system can increase space utilization by 50% and improve pick rates by up to 30%.

Key Features

Span-Track®: The original full-width roller flow track providing superior flow, even for totes.
Modular Design: Allows for dynamic storage units tailored to specific operational needs.
Easy Setup: Can be assembled in less than an hour.
Durability: Rugged construction with a seven-year warranty.

Specifications

Posts: Vertical 1-3/4” square tube, available in heights from 3’ to 7’.
Beams: Horizontal 1-3/4” square tube, available in lengths from 1’ to 8’.
Capacity: Each cell can hold up to 1000 lbs per level, with a total load capacity of 3000 lbs.
Span-Track®: Supports 50 lbs per foot, available in various lengths and widths.

Additional Components

Workbench: Available in 12” and 18” depths.
Add-On Pick Tray: Angled at 30° for better access, available in 12” and 15” depths.
Overhead Tool Bar: For attaching tools and accessories.
Casters: 4” diameter, available in swivel and rigid types.

Applications

Single Lane Cell: Features two pick levels and one return.
Line Side Pick Cell: Uses gravity conveyor for demanding applications.
Line Side Storage Cell: Multi-level live storage with maximum facings in minimal space.

Benefits

Ergonomic Design: Ensures products are always reachable, improving operational efficiency.
Flexibility: Reconfigurable units provide maximum adaptability.
Accuracy: Combining with Pick to Lights technology can improve line accuracy to 99.8% and reduce errors by 85%.

Notes

Designed for indoor use only; avoid exposure to water or cleaning solutions.
Units over 6’ require intermediate posts for stability.

Catalog excerpts

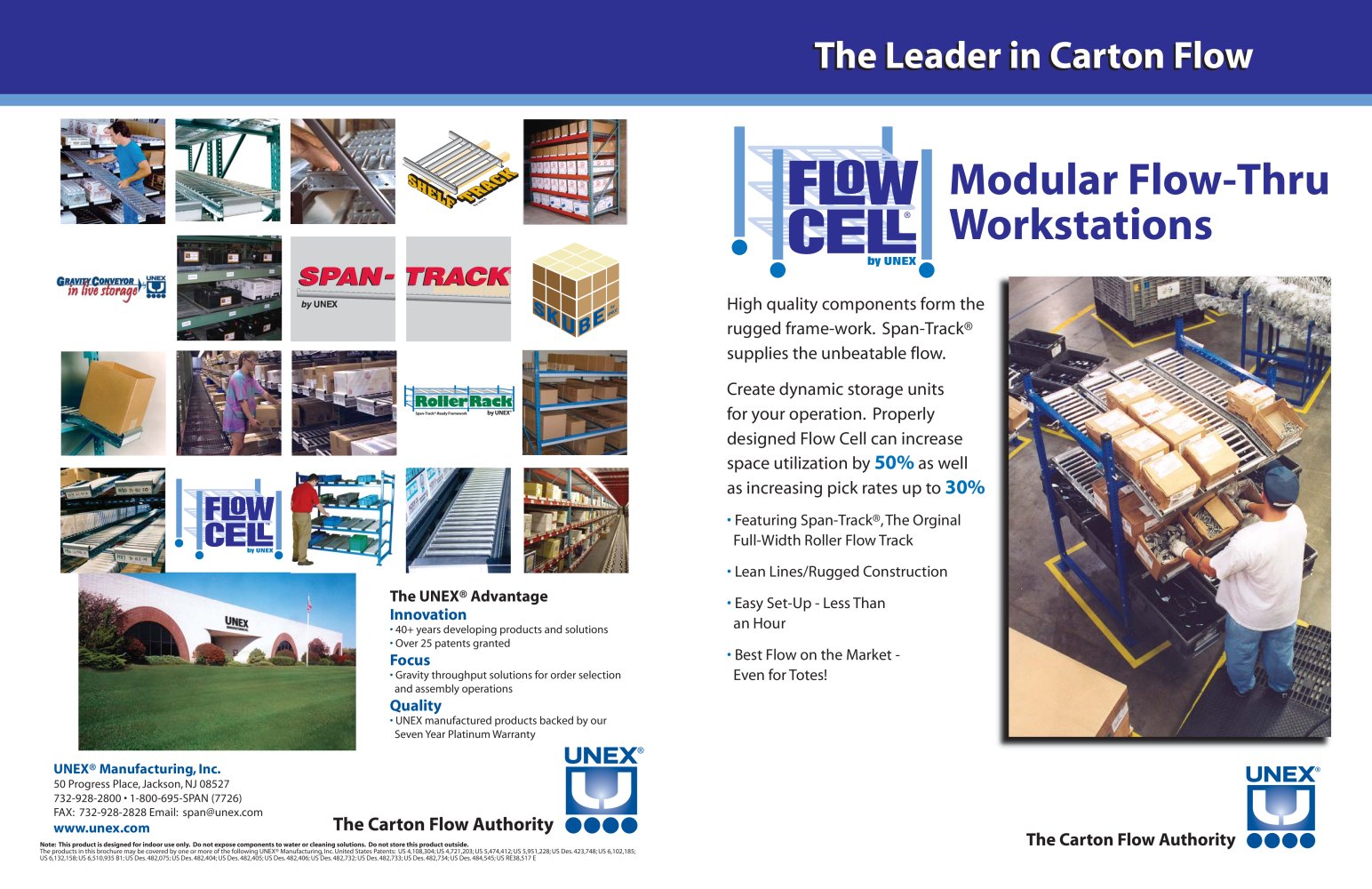

Roller Rack Span-Trackή-Ready Framework by UNEX Ε Featuring Span-Track, The Orginal Full-Width Roller Flow TrackΕ Lean Lines/Rugged Construction Easy Set-Up - Less Than an HourՕ Best Flow on the Market - Even for Totes! The UNEX AdvantageInnovation > Ε 40+ years developing products and solutions Over 25 patents granted Focus > Օ Gravity throughput solutions for order selection and assembly operations Quality > UNEX manufactured products backed by our Seven Year Platinum Warranty UNEXծ Manufacturing, Inc. 50 Progress Place, Jackson, NJ 08527732-928-2800 1-800-695-SPAN (7726) FAX: 732-928-2828 Email: [email protected] www.unex.com Note: This product is designed for indoor use only. Do not expose components to water or cleaning solutions. Do not store this product outside. The products in this brochure may be covered by one or more of the following UNEXծ Manufacturing, Inc. United States Patents: US 4,108,304; US 4,721,203; US 5,474,412; US 5,951,228; US Des. 423,748; US 6,102,185; US 6,132,158; US 6,510,935 B1; US Des. 482,075; US Des. 482,404; US Des. 482,405; US Des. 482,406; US Des. 482,732; US Des. 482,733; US Des. 482,734; US Des. 484,545; US RE38,517 E size="-3">
