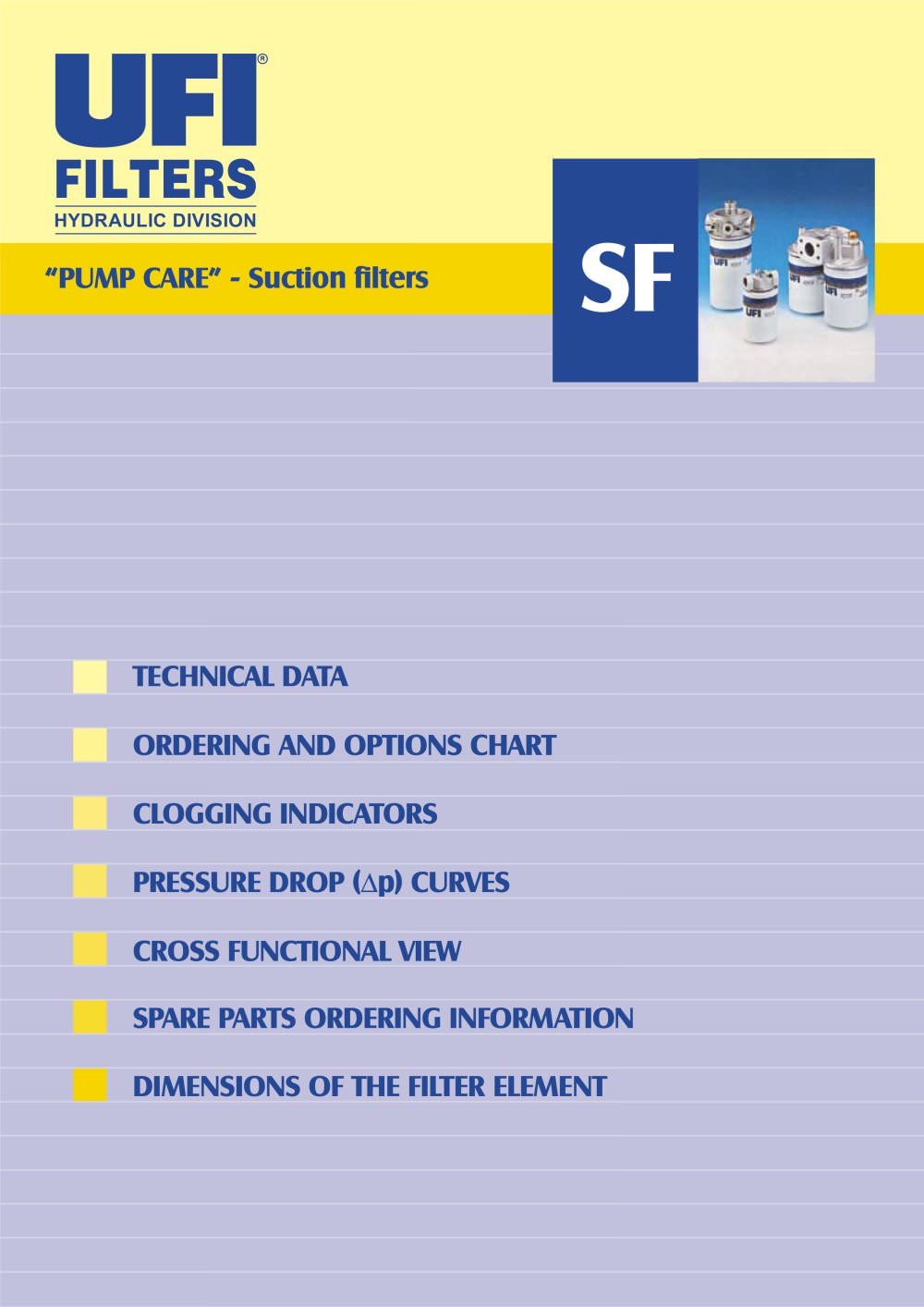

SF - PUMP CARE - suction filters
Product catalog summary
Ordering and Options Chart: The document provides a detailed chart for ordering suction filters under the 'Pump Care' series. It includes options for clogging indicators, port types, port sizes, bypass valves, seals, and filter media.
Pressure Drop (∆p) Curves: The pressure drop curves are essential for understanding the performance of the filter housing and clean filter elements. The assembly pressure drop should be less than 3 kPa (0.03 bar). The curves are based on tests conducted according to ISO 3968 standards.
Clogging Indicators: Various series of clogging indicators are available, including vacuum gauges and switches with different voltage and current specifications. Protection levels and settings are also specified.
Dimensions of the Filter Element: The document provides detailed dimensions for different filter elements, ensuring compatibility and proper fitment in hydraulic systems.
Spare Parts Ordering Information: Instructions for ordering spare parts, including seal kits and bypass valves, are provided. The document emphasizes the importance of using the correct codes for ordering.
Cross Functional View: A cross-sectional view of the filter is provided, highlighting the bypass valve and its function in retaining contaminants during bypass conditions.
Technical Data: The technical specifications include material details, pressure ratings, bypass valve settings, and working temperature ranges. The filters are compatible with various fluid types as per ISO 6743/4 standards.
Filter Construction and Maintenance: The filters are designed for easy maintenance with spin-on cartridges for quick replacement. They offer a long life due to a large filter area and strong construction, capable of withstanding pressures up to 1,200 kPa (12 bar).
See more
Catalog excerpts
PUMP CAREӔ - Suction filters > ORDERING AND OPTIONS CHARTPRESSURE DROP ( ∆ p) CURVESCLOGGING INDICATORSDIMENSIONS OF THE FILTER ELEMENTSPARE PARTS ORDERING INFORMATIONCROSS FUNCTIONAL VIEWTECHNICAL DATA >
