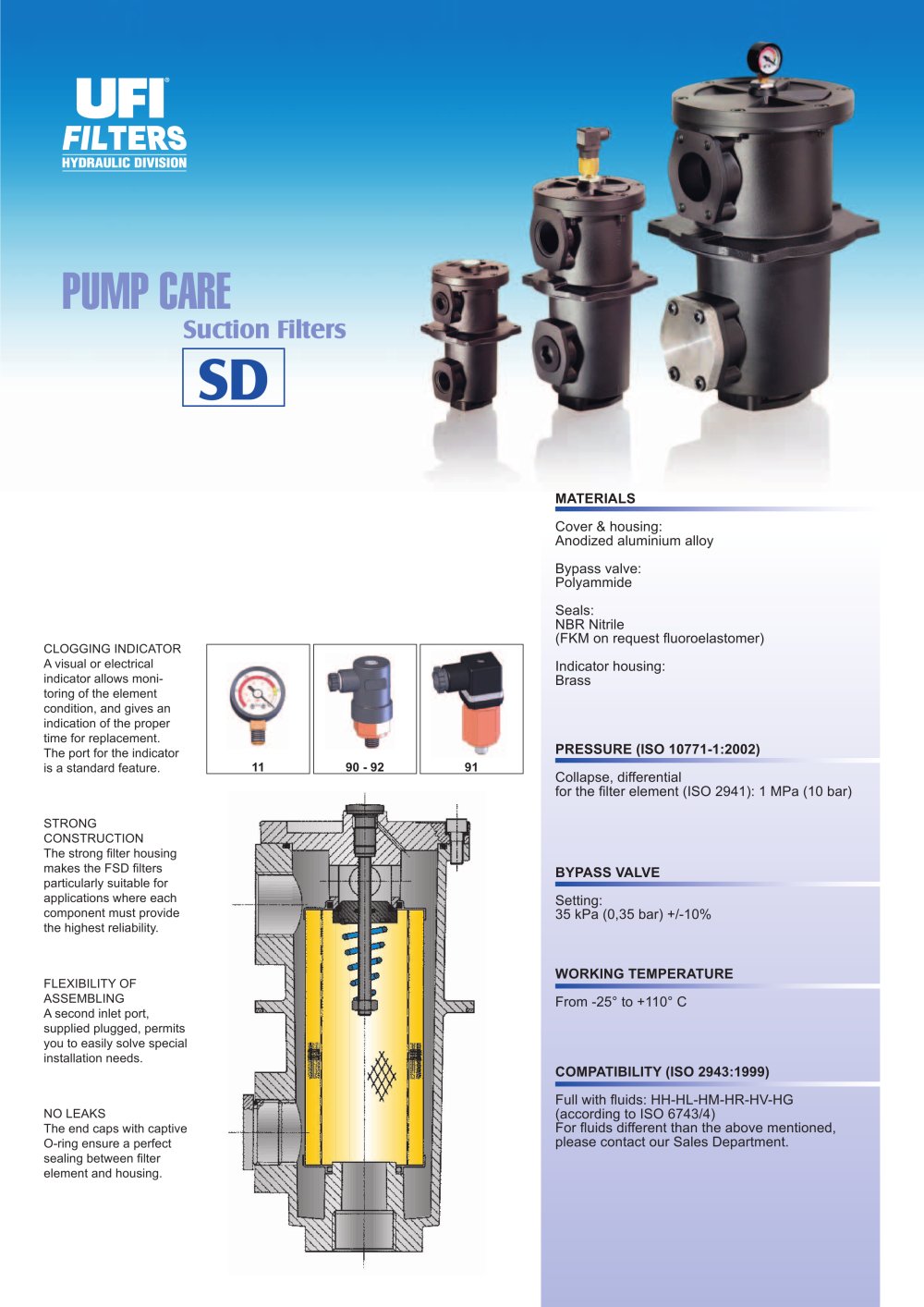

Materials and Construction:
The filter system is constructed with anodized aluminum alloy for the cover and housing, polyamide for the bypass valve, and NBR nitrile seals, with an option for FKM fluoroelastomer. The indicator housing is made of brass, ensuring durability and reliability in various applications.
Pressure Specifications:
According to ISO 10771-1:2002, the collapse differential pressure for the filter element is 1 MPa (10 bar). The bypass valve is set at 35 kPa (0.35 bar) with a tolerance of +/-10%.
Clogging Indicator:
The system includes a visual or electrical clogging indicator to monitor the filter element's condition, signaling the appropriate time for replacement. The indicator port is a standard feature.
Design Features:
The filter housing is robust, making it suitable for high-reliability applications. It includes a second inlet port for flexible installation and end caps with captive O-rings to prevent leaks.
Operating Conditions:
The working temperature range is from -25°C to +110°C. The system is compatible with fluids HH, HL, HM, HR, HV, and HG as per ISO 6743/4. For other fluids, consultation with the sales department is recommended.
Dimensions and Weights:
The document provides detailed dimensions and weights for various filter models (FSD11 to FSD61), indicating their suitability for different applications based on size and weight.
Pressure Drop Curves:
Pressure drop curves are provided for both the filter housing and clean filter element, indicating the pressure drop at various flow rates. These curves are essential for selecting the appropriate filter size, especially when considering flow peaks and bypass valve configurations.
Ordering and Options:
The document includes an ordering and options chart for selecting the appropriate filter components and configurations.
