SA-SB - PUMP CARE - suction filters
Product catalog summary

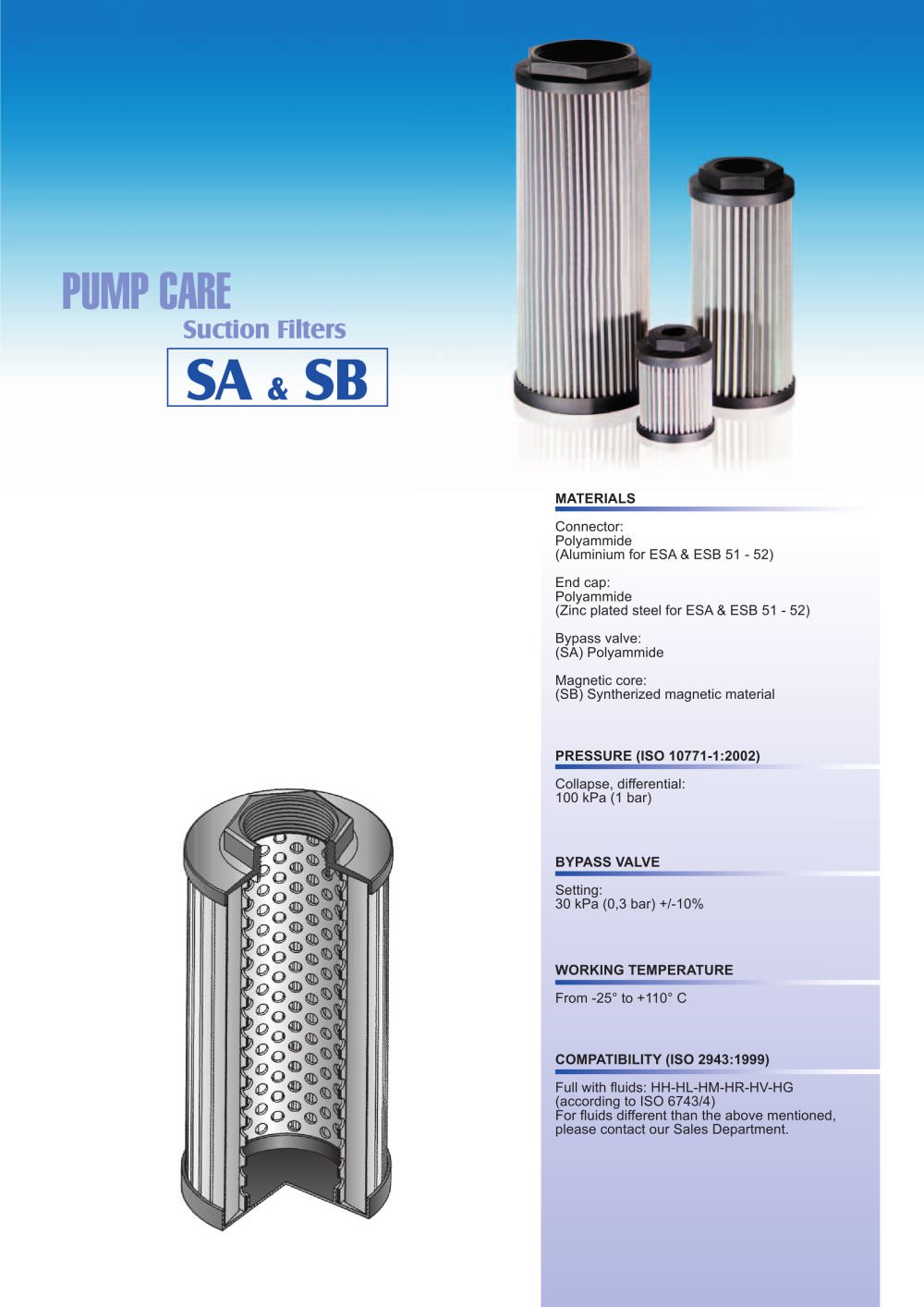

Materials
Connectors are made from Polyamide, with Aluminium used for ESA & ESB 51-52. End caps are also Polyamide, with Zinc plated steel for ESA & ESB 51-52. The bypass valve in SA is Polyamide, while the magnetic core in SB is made from syntherized magnetic material.
Connectors are made from Polyamide, with Aluminium used for ESA & ESB 51-52. End caps are also Polyamide, with Zinc plated steel for ESA & ESB 51-52. The bypass valve in SA is Polyamide, while the magnetic core in SB is made from syntherized magnetic material.
Pressure Specifications
According to ISO 10771-1:2002, the collapse differential pressure is 100 kPa (1 bar). The bypass valve setting is 30 kPa (0.3 bar) with a tolerance of +/-10%.
According to ISO 10771-1:2002, the collapse differential pressure is 100 kPa (1 bar). The bypass valve setting is 30 kPa (0.3 bar) with a tolerance of +/-10%.
Working Temperature
The operational temperature range is from -25°C to +110°C.
The operational temperature range is from -25°C to +110°C.
Fluid Compatibility
Compatible with fluids HH, HL, HM, HR, HV, HG as per ISO 2943:1999 and ISO 6743/4. For other fluids, contact the Sales Department.
Compatible with fluids HH, HL, HM, HR, HV, HG as per ISO 2943:1999 and ISO 6743/4. For other fluids, contact the Sales Department.
Dimensions and Weights
Various filter elements are listed with dimensions ranging from 3/8” to 4” and weights specified for each type.
Various filter elements are listed with dimensions ranging from 3/8” to 4” and weights specified for each type.
Pressure Drop Curves
The pressure drop must be below 3 kPa (0.03 bar). Curves are based on tests with mineral oil of 30 cSt viscosity and specific gravity of 0.9, conducted at the UFI HYDRAULIC DIVISION Laboratory according to ISO 3968:2005.
The pressure drop must be below 3 kPa (0.03 bar). Curves are based on tests with mineral oil of 30 cSt viscosity and specific gravity of 0.9, conducted at the UFI HYDRAULIC DIVISION Laboratory according to ISO 3968:2005.
Ordering and Options
Contact UFI HYDRAULIC DIVISION for ordering and options. Technical data is subject to change without notice.
Contact UFI HYDRAULIC DIVISION for ordering and options. Technical data is subject to change without notice.
