UFI HYDRAULIC

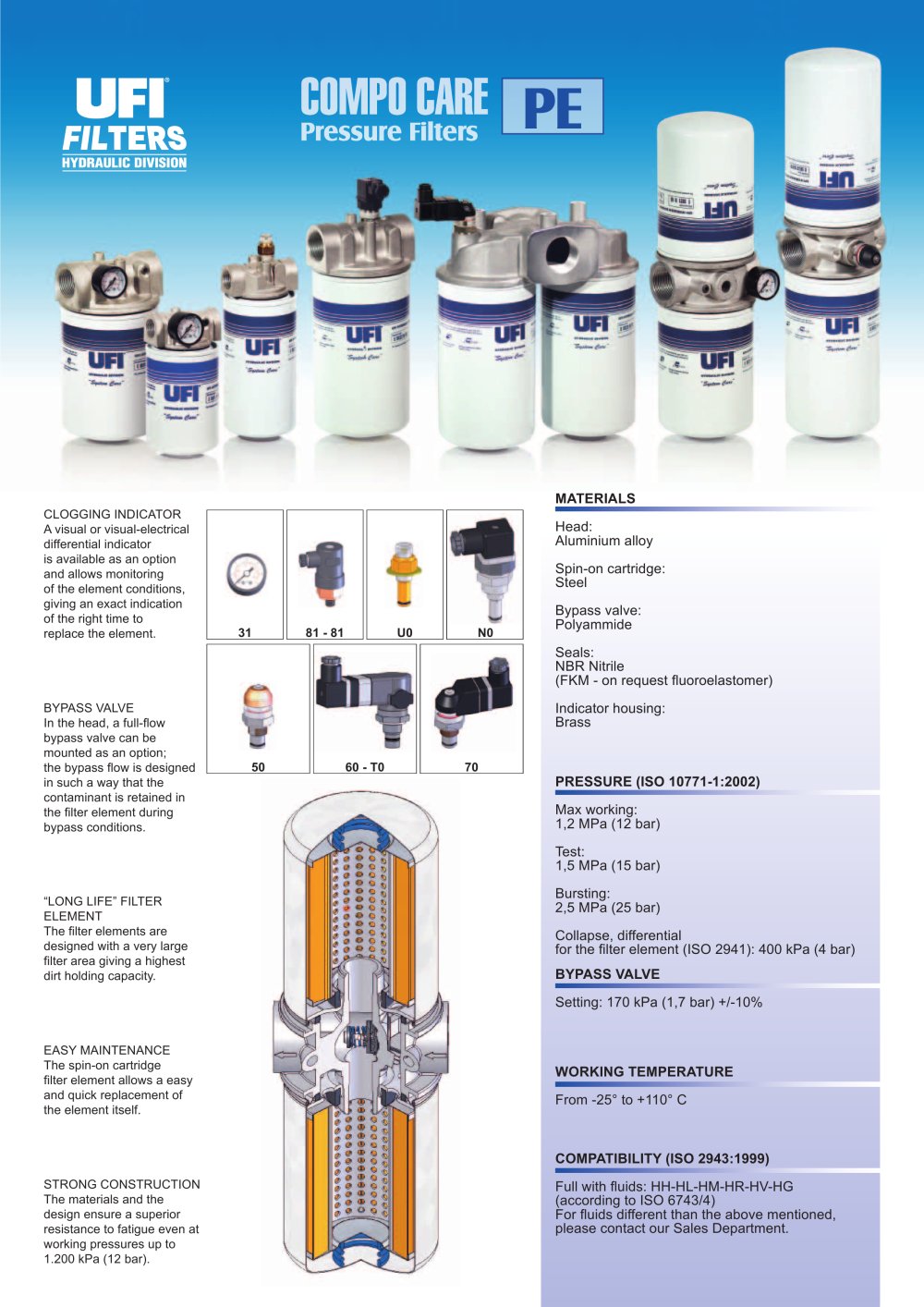

PE - COMPO CARE - pressure filters

PE - COMPO CARE - pressure filters

Product catalog summary

Materials
- Head: Aluminium alloy
- Spin-on cartridge: Steel
- Bypass valve: Polyamide
- Seals: NBR Nitrile (FKM available on request)
- Indicator housing: Brass

Pressure Specifications (ISO 10771-1:2002)
- Max working pressure: 1.2 MPa (12 bar)
- Test pressure: 1.5 MPa (15 bar)
- Bursting pressure: 2.5 MPa (25 bar)
- Collapse differential for filter element (ISO 2941): 400 kPa (4 bar)

Bypass Valve
- Setting: 170 kPa (1.7 bar) +/-10%

Working Temperature
- Range: -25°C to +110°C

Fluid Compatibility (ISO 2943:1999)
- Compatible with fluids: HH-HL-HM-HR-HV-HG (ISO 6743/4)
- For other fluids, contact Sales Department

Bypass Valve Features
- Optional full-flow bypass valve in the head
- Designed to retain contaminants in the filter element during bypass conditions

Filter Element
- "Long Life" design with large filter area for high dirt holding capacity

Maintenance
- Spin-on cartridge allows easy and quick replacement

Construction
- Strong materials and design for superior resistance to fatigue at pressures up to 1,200 kPa (12 bar)

Clogging Indicator
- Optional visual or visual-electrical differential indicator
- Provides exact indication for element replacement timing

Dimensions and Weights
- Detailed dimensions and weights for various filter models provided

Pressure Drop Curves
- Assembly pressure drop must be lower than 50 kPa (0.5 bar)
- Curves obtained with mineral oil (30 cSt viscosity, 0.9 specific gravity)
- Consider fluid features for accurate pressure drop calculations

Ordering and Options
- Detailed ordering and options chart available for different models
