Ultraprobe 9000

Product catalog summary

Overview: The Ultraprobe® 9000 is a digital ultrasonic inspection system designed for ease of use and efficiency in data collection and analysis. It is suitable for both troubleshooting and pre-planned inspection routes, offering quick data viewing and storage capabilities.

Key Features:

Calibrated decibel readout and a 16-segment bar graph for sound intensity changes.
On-board data logging with Ultratrend DMS™ for multiple data views, history tables, trend charts, and export to MS Excel.
Spin and Click™ technology for simple operation with only two controls.
Meets ASTM E1002-2005 requirements for leak detection.
Open platform software, interchangeable modules, frequency tuning, and environmentally friendly rechargeable batteries.

Applications:

Mechanical Inspection/Trending: Bearing conditions, rubbing conditions, cavitation, gears/gear boxes, pumps/motors, lack of lubrication.
Leak Detection/Energy Audits: Compressed air, gases, vacuum leaks, seals, gaskets, condenser tubes, cockpit windows, hatches, boilers, heat exchangers, valves, steam traps.
Electrical Inspection: Arcing, tracking, corona, switchgear, transformers, insulators, relays, bus bars.

Specifications:

Construction: Hand-held pistol type with coated aluminum and ABS plastic.
Circuitry: Solid-state SMD digital circuitry with temperature compensation.
Frequency: 20 kHz to 100 kHz, tunable in 1 kHz increments.
Display: 16 x 2 LCD with LED backlight.
Memory: 400 storage locations.
Battery: NiMH rechargeable.
Operating Temperature: 0°C to 50°C (32°F to 122°F).
Outputs: Calibrated heterodyned output, decibel (dB) frequency, USB data output.
Probes: Trisonic scanning module and stethoscope module.
Headset: Deluxe noise attenuating headphones for hard hat use.
Sensitivity: Detects 0.127 mm (0.005”) diameter leak at 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.).
Dimensions: 47 x 37 x 17 cm (18.5” x 14.5” x 6.5”).
Weight: Pistol unit 0.9 kg (2 lbs.), complete carrying case 6.4 kg (14 lbs.).
Warranty: 1-year parts/labor standard, 5 years with completed warranty registration card.

Additional Information: The Ultraprobe® 9000 is covered by multiple patents and is subject to continual product improvement. Specifications may change without notice. Warranty details are available upon request.

Catalog excerpts

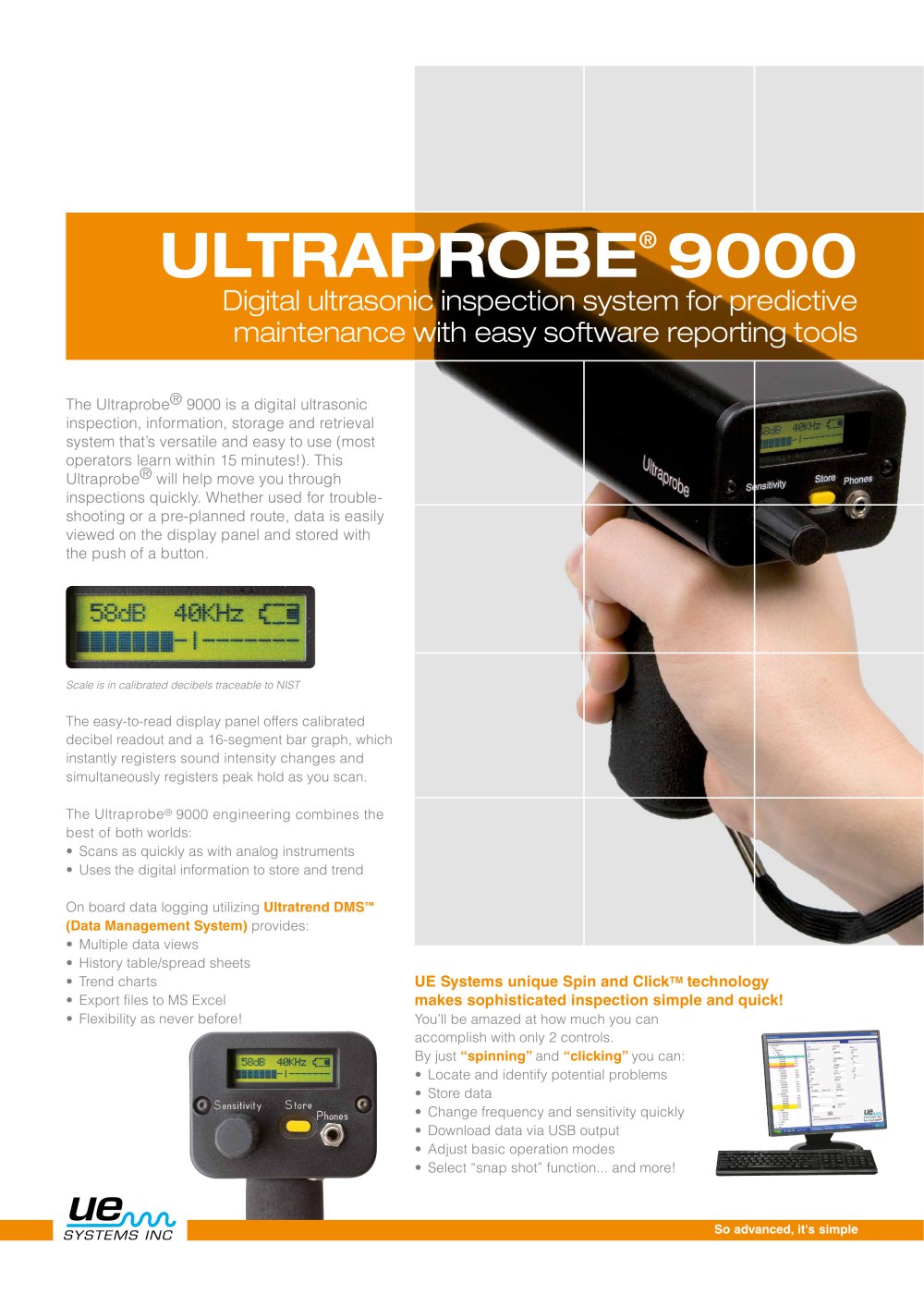

Digital ultrasonic inspection system for predictive maintenance with easy software reporting tools The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage and retrieval system that’s versatile and easy to use (most operators learn within 15 minutes!). This Ultraprobe® will help move you through inspections quickly. Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. Scale is in calibrated decibels traceable to NIST The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan. The Ultraprobe® 9000 engineering combines the best of both worlds: • Scans as quickly as with analog instruments • Uses the digital information to store and trend On board data logging utilizing Ultratrend DMS™ (Data Management System) provides: • Multiple data views • History table/spread sheets • Trend charts • Export files to MS Excel • Flexibility as never before! UE Systems unique Spin and ClickTM technology makes sophisticated inspection simple and quick! You’ll be amazed at how much you can accomplish with only 2 controls. By just “spinning” and “clicking” you can: • Locate and identify potential problems • Store data • Change frequency and sensitivity quickly • Download data via USB output • Adjust basic operation modes • Select “snap shot” function... and more!

Open the catalog to page 1

Ultraprobe® 9000 Specifications Construction Circuitry Frequency Response Time Display Memory Battery Operating Temperature Outputs Ultraprobe® 9000 features • Open Platform Software • Interchangeable Modules • Frequency Tuning • Spin and ClickTM Technology • Ultratrend Sound Filtration • 120 dB Dynamic Range • Acoustic Isolating Headphones • nvironmentally friendly rechargeable E batteries • asy interface for most Vibration E Analyzers including SKF, ENTEK, DLI, CSI, DI Probes Headset Indicators Sensitivity Threshold Dimensions Weight Warranty Display Modes Hand-held pistol type made with coated...

Open the catalog to page 2
