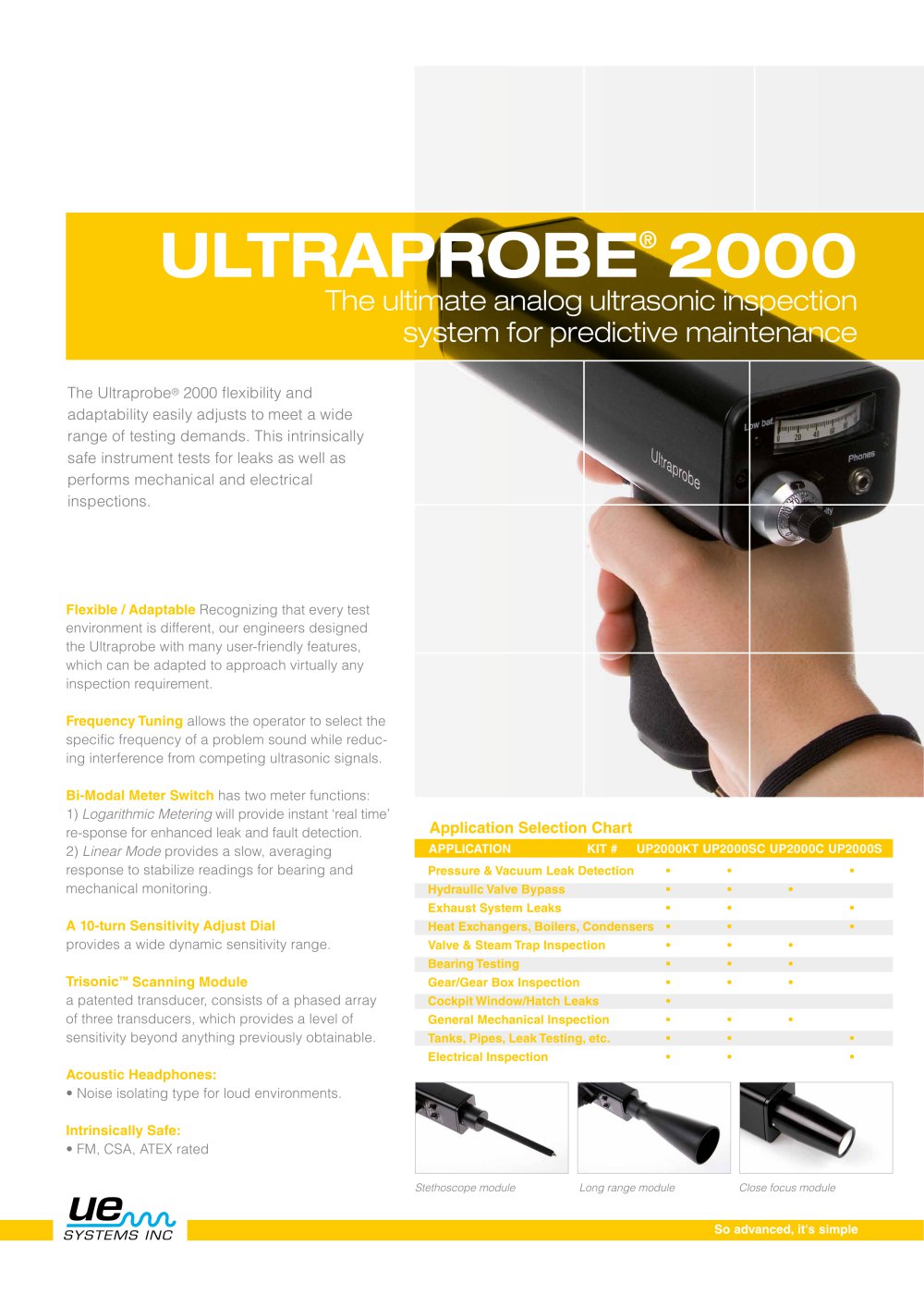

The ultimate analog ultrasonic inspection system for predictive maintenance The Ultraprobe® 2000 flexibility and adaptability easily adjusts to meet a wide range of testing demands. This intrinsically safe instrument tests for leaks as well as performs mechanical and electrical inspections. Flexible / Adaptable Recognizing that every test environment is different, our engineers designed the Ultraprobe with many user-friendly features, which can be adapted to approach virtually any inspection requirement. Frequency Tuning allows the operator to select the specific frequency of a problem sound while reducing interference from competing ultrasonic signals. Bi-Modal Meter Switch has two meter functions: 1) Logarithmic Metering will provide instant ‘real time’ re-sponse for enhanced leak and fault detection. 2) Linear Mode provides a slow, averaging response to stabilize readings for bearing and mechanical monitoring. A 10-turn Sensitivity Adjust Dial provides a wide dynamic sensitivity range. Trisonic™ Scanning Module a patented transducer, consists of a phased array of three transducers, which provides a level of sensitivity beyond anything previously obtainable. Pressure & Vacuum Leak Detection Hydraulic Valve Bypass Exhaust System Leaks Heat Exchangers, Boilers, Condensers Valve & Steam Trap Inspection Bearing Testing Gear/Gear Box Inspection Cockpit Window/Hatch Leaks General Mechanical Inspection Tanks, Pipes, Leak Testing, etc. Electrical Inspection Acoustic Headphones: • Noise isolating type for loud environments. Intrinsically Safe: • FM, CSA, ATEX rated Stethoscope module Long range module Close focus module
Open the catalog to page 1
Ultraprobe® 2000 Specifications Construction Circuitry Frequency Response Probes Kit includes: • requency Selection F (20 kHz – 100 kHz) • Precision edgewise meter • -way meter/auxiliary mode selector 3 • umerically calibrated 10-turn N sensitivity dial • echargeable battery with R lowlevel indicator light • Anodized aluminum housing • Trisonic™ Scanning Module • Stethoscope/Contact Module • Stethoscope Extension Kit • Rubber Focusing Probe • Warble Tone Generator • Deluxe noise isolating headset • ero Halliburton aluminium Z carrying case • nstruction Manual and I Multimedia Training...
