Single Pad Adapters

Single Pad Adapters

Product catalog summary

Overview: This document provides technical specifications and information about Twin Disc Pump Drive Adaptors, highlighting their advantages, applications, and safety considerations.

Advantages:

Rubber block spider-drive dampens torsionals and chatter.
Changeable drive spline adapter for flexibility.
Lightweight aluminum flywheel adapter for ease of use.

Applications: The adaptors are suitable for various equipment including farm machinery, construction machinery, airport support equipment, cranes, drilling equipment, recycling equipment, and forklifts.

Specifications:

The adaptors include a coupling to connect the pump-shaft to the engine-flywheel and an SAE-bell.
Compatible with pumps Gr. 1/2/3/3.5/4, SAE A/B/C/D, ISO, CETOP.
Maximum continuous torque transmitted by the coupling varies by size: 222 lb-ft for sizes 6.5" to 10" and 480 lb-ft for size 11.5".

Housing Dimensions:

SAE 5 to SAE 1 with varying dimensions for A, B, H, I, and F measurements.

Coupling Dimensions:

Sizes range from 6.5" to 11.5" with specific dimensions for C, D, E, and G measurements.

Safety and Compliance: Users are reminded to ensure safe operation by complying with engineering information, proper installation, operation, and maintenance. It is the user's responsibility to install necessary safety devices as per recognized standards and regulations.

Company Information: Twin Disc, Incorporated, based in Racine, Wisconsin, has a long-standing reputation for designing and manufacturing durable industrial products. They emphasize productivity, durability, and cost-effectiveness in their offerings.

Catalog excerpts

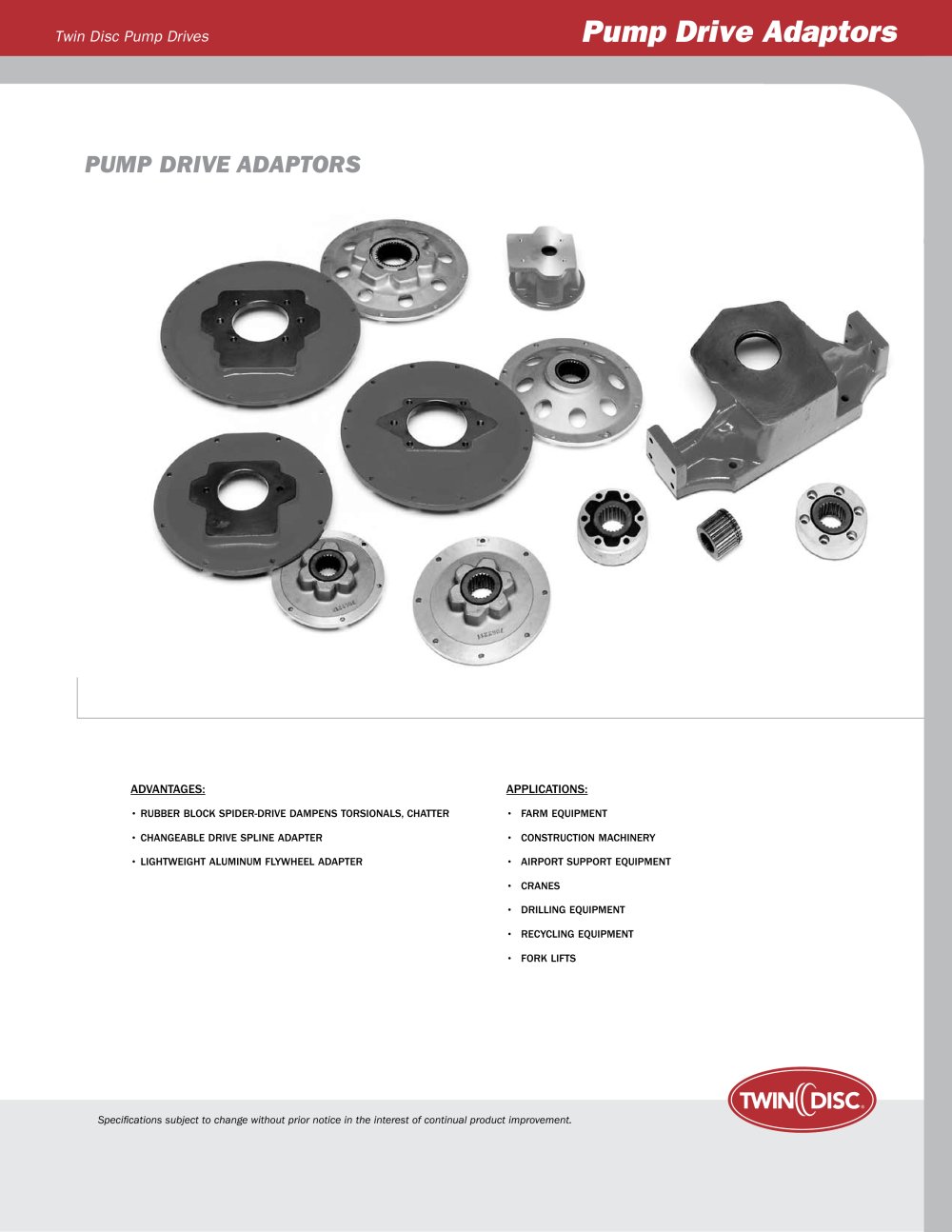

RUBBER BLOCK SPIDER-DRIVE DAMPENS TORSIONALS, CHATTERՕ CHANGEABLE DRIVE SPLINE ADAPTER LIGHTWEIGHT ALUMINUM FLYWHEEL ADAPTER Օ FARM EQUIPMENT CONSTRUCTION MACHINERY Օ AIRPORT SUPPORT EQUIPMENT CRANES Օ DRILLING EQUIPMENT RECYCLING EQUIPMENT Օ FORK LIFTS Specifications subject to change without prior notice in the interest of continual product improvement. >

Open the catalog to page 1
