Rotary Piston Vacuum Pumps
18Pages

{{requestButtons}}

Catalog excerpts

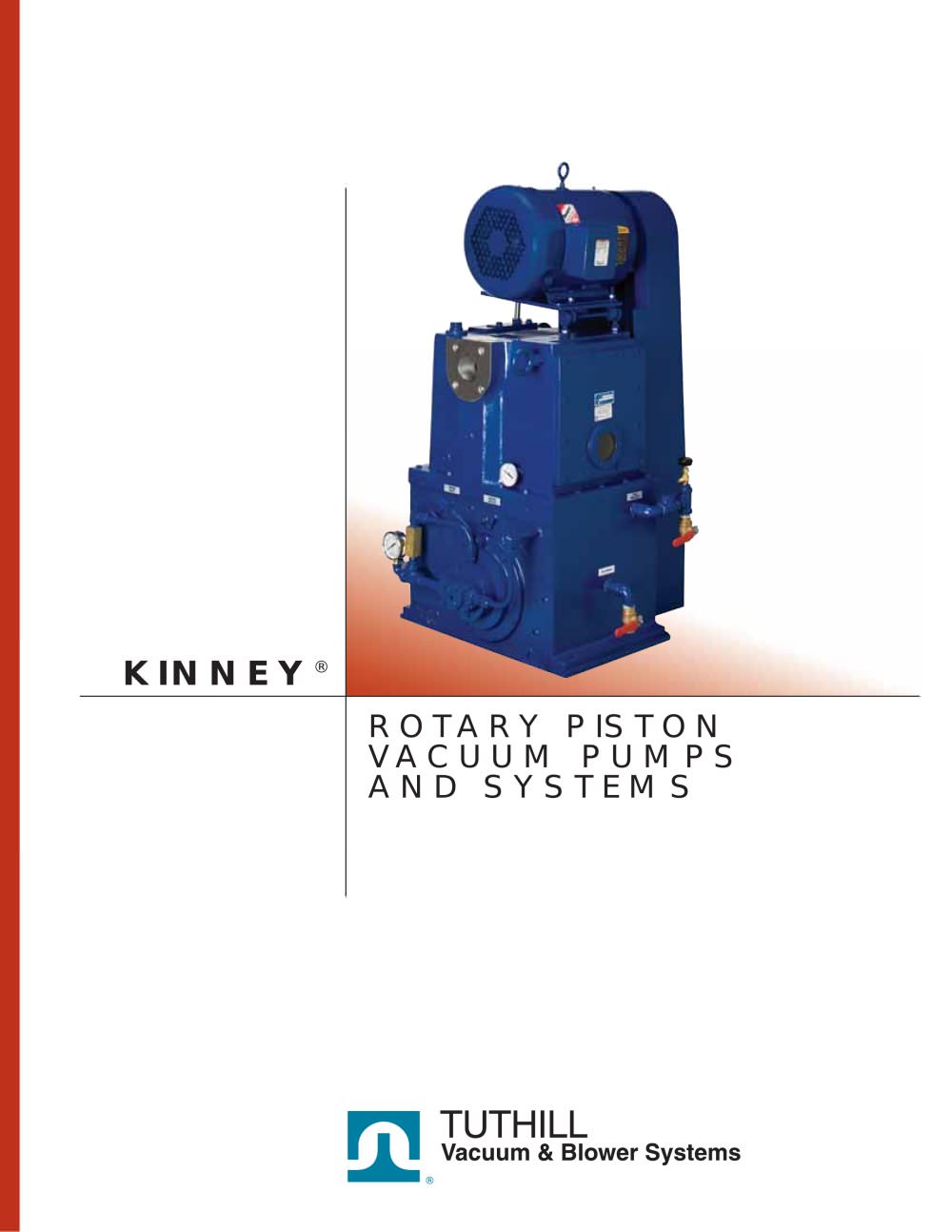

Rotary Piston Vacuum Pumps - 1

KINNEY® ROTARY PISTON VACUUM PUMPS AND SYSTEMS

Open the catalog to page 1
Rotary Piston Vacuum Pumps - 2

KINNEY® CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 KT Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 KT-LP Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 KD/KDH Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 KC Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 KTC Series . . . . . . . . . . . . . . . . . ....

Open the catalog to page 2
Rotary Piston Vacuum Pumps - 3

KINNEY® INTRODUCTION 1 PRINCIPLES OF OPERATION The Efficiency and Long-Term Reliability of the Kinney Rotary Piston Pump is the Result of the Time-Tested Design. 1. The rotary piston does not spin on its axis. It moves in a circular path within the pumping chamber. 2. As it passes top dead center, it creates a constantly increasing internal space on the inlet or suction side. 3. ...and a constantly decreasing internal space on the pressure or discharge side. 4. A high-integrity seal is maintained between the suction and pressure sides by a film of oil that is captured between the piston and...

Open the catalog to page 3
Rotary Piston Vacuum Pumps - 4

KINNEY® 2 APPLICATIONS Kinney oil-sealed vacuum pumps are widely accepted as the standard equipment for applications requiring vacuum over a wide pressure range. In research and engineering laboratories, Kinney pumps provide the versatility so essential to technological progress. In production facilities, their ruggedness and compact design permit years of continuous and dependable use. For the electric power industry, Kinney produces complete vacuum systems, both stationary and portable, air cooled and water cooled, for the evacuation, drying and filling of large transformers, for cable...

Open the catalog to page 4
Rotary Piston Vacuum Pumps - 5

KINNEY® APPLICATIONS 3 Electrical & Electronic Evacuation of incandescent bulbs, fluorescent, neon, electron and TV tubes, potting of electronic components, production of transistors and other semi-conductor devices. Vacuum coating, crystal growing and impregnation. Food Processing Vacuum sealing of bottles, cans and jars, film packaging of meats, poultry and cold cuts, deaeration of beverages, freeze drying of coffee, fruits, vegetables and other food products, vacuum evisceration. Laboratories House vacuum systems, chamber evacuation, research and development. Lasers Laser cooling and...

Open the catalog to page 5
Rotary Piston Vacuum Pumps - 6

KINNEY® 4 KT SERIES SINGLE-STAGE ROTARY PISTON VACUUM PUMPS KT-150, KT-300, KT-500, KT-850 HIGHLIGHTS • Fuel Pumping Speed Down to 1 Torr • Operate Continuously at any Pressure up to 100 Torr • Ultimate Pressure 10 Microns (McLeod Gauge) • Quiet, Vibration-Free Operation • Simple Installation. No Special Preparation Necessary • No Metal-to-Metal Contact in Pumping Chamber • Adjustable Gas Ballast Permits Handling of Condensable Vapors • Unequalled Durability Even in Dirty Applications Typical Applications: Vacuum Packaging, Vacuum Furnaces, Vacuum Coating SPECIFICATIONS MODEL Nominal...

Open the catalog to page 6
Rotary Piston Vacuum Pumps - 8

KINNEY® 6 KTLP SERIES OIL-SEALED ROTARY PISTON PUMPS KT-170 LP, KT-275 LP, KT-505 LP, KT-840VFP, KT-1350VFP HIGHLIGHTS • Quiet, Vibration Free • No Metal-to-Metal Contact • Ultimate Pressure to 10 microns • Full Pumping Speed Down to 1 Torr • Compact Design, Easy Access for Maintenance • Simple Installation Typical Applications: Vacuum Packaging, Vacuum Furnaces, Vacuum Coating SPECIFICATIONS MODEL Nominal Displacement at Rated RPM Motor HP Normal Pump Rotation Oil Capacity Cooling Water (min) @ 60°F (16°C) @45PSI (max) Weight (Complete Pump Assy) – Dry Maximum Gas Ballast Flow Typical...

Open the catalog to page 8
Rotary Piston Vacuum Pumps - 9

KINNEY® KTLP SERIES 7 DIMENSIONS KT-170 LP, KT-275 LP, KT-505 LP PERFORMANCE CURVES KT-1350VFP 700 1300 1200 PUMPING SPEED IN CFM 1100 600 1000 900 500 NEW 400 KT-840VFP 800 700 600 300 KT-505LP 500 400 200 300 200 100 100 KT-840 VFP, KT-1350 VFP 0 0.001 0.010 0.100 1 10 100 SUCTION PRESSURE, TORR MB PUMPING SPEED IN CUBIC METERS PER HOUR 800 TYPICAL PUMPING SPEED CURVE MODEL KT-505LP, KT-840VFP and KT1350VFP mBar 1000 KT-275LP 250 PUMPING SPEED IN CFM 140 DIMENSIONS (Inches/Millimeters) 120 200 100 KT-170LP 150 80 100 60 40 50 20 MODEL 24.75 629 KT-275LP 28 711 KT-505LP 35.25 895 KT-840VFP...

Open the catalog to page 9
Rotary Piston Vacuum Pumps - 10

KINNEY® 8 KD/KDH SERIES OIL-SEALED SINGLE-STAGE ROTARY PISTON VACUUM PUMPS KD-30, KD-50, KDH-130, KDH-150 HIGHLIGHTS • Can Operate at any Pressure up to Atmosphere • Absolute Pressure Down to the Low Micron Range. Ultimate Pressure of 10 Microns HG ABS or Less (McLeod Gauge) • High Resistance to Abrasion and Corrosion • No Small Orifices to Plug Up • Adjustable Gas Ballast Permits Handling of Condensable Vapors Typical Applications: Drying Chambers, Degassifiers, Filling Machines, Evacuating Process Chambers Models KD and KDH are single stage vacuum pumps of "duplex" design. Each has a...

Open the catalog to page 10
Rotary Piston Vacuum Pumps - 11

KINNEY® KD/KDH SERIES 9 DIMENSIONS KD-30, KD-50 A NPT DISCHARGE F 1/2" NPT OIL FILL (1 GALLON OIL CAPACITY) SEPARATOR TANK WITH FILTER ELEMENT & OIL RESERVE VIEW PORT SOLENOID VALVE GAS BALLAST VALVE 1 1/2" NPT SUCTION B DRAIN VALVES BELT GUARD D 7/16 DIA. HOLES E C NPT DISCHARGE OIL SIGHT GUAGE KDH-130, KDH-150 1/2" NPT OIL FILL F 3" 150# ASA FLANGE NPT WATER OUTLET B SOLENOID VALVE 3/4 GAS BALLAST VALVE NPT DRAIN VALVE D NPT WATER INLET BELT GUARD C E A DIMENSIONS (Inches/Millimeters) MODEL A B C D E F KD-30 27 7/8 518 27 686 24 1/2 432 12 7/8 327 17 3/8 400 20 508 KD-50 28 5/8 727 32 1/2...

Open the catalog to page 11
Rotary Piston Vacuum Pumps - 12

KINNEY® 10 KC SERIES OIL SEALED TWO-STAGE ROTARY PISTON VACUUM PUMPS KC-5, KC-8, KC-15 HIGHLIGHTS • Pumping Speed at Pressures Below 10 Microns. Lower than Attainable with Single-Stage Pumps • Ultimate Pressure: .2 Microns (McLeod Gauge) • Can Operate at Any Pressure up to Atmosphere • Adjustable Gas Ballast Permits Handling of Condensable Vapors • No Metal-to-Metal Contact in Pumping Chamber • Unequaled Durability, Even in Dirty Applications • Air-Cooled Typical Applications: Refrigeration Systems, Liquid Gas Storage, Automotive Applications, Leak Detection Kinney Series, two-stage vacuum...

Open the catalog to page 12
