CC Series Close Coupled Pumps

CC Series Close Coupled Pumps
2Pages

Catalog excerpts

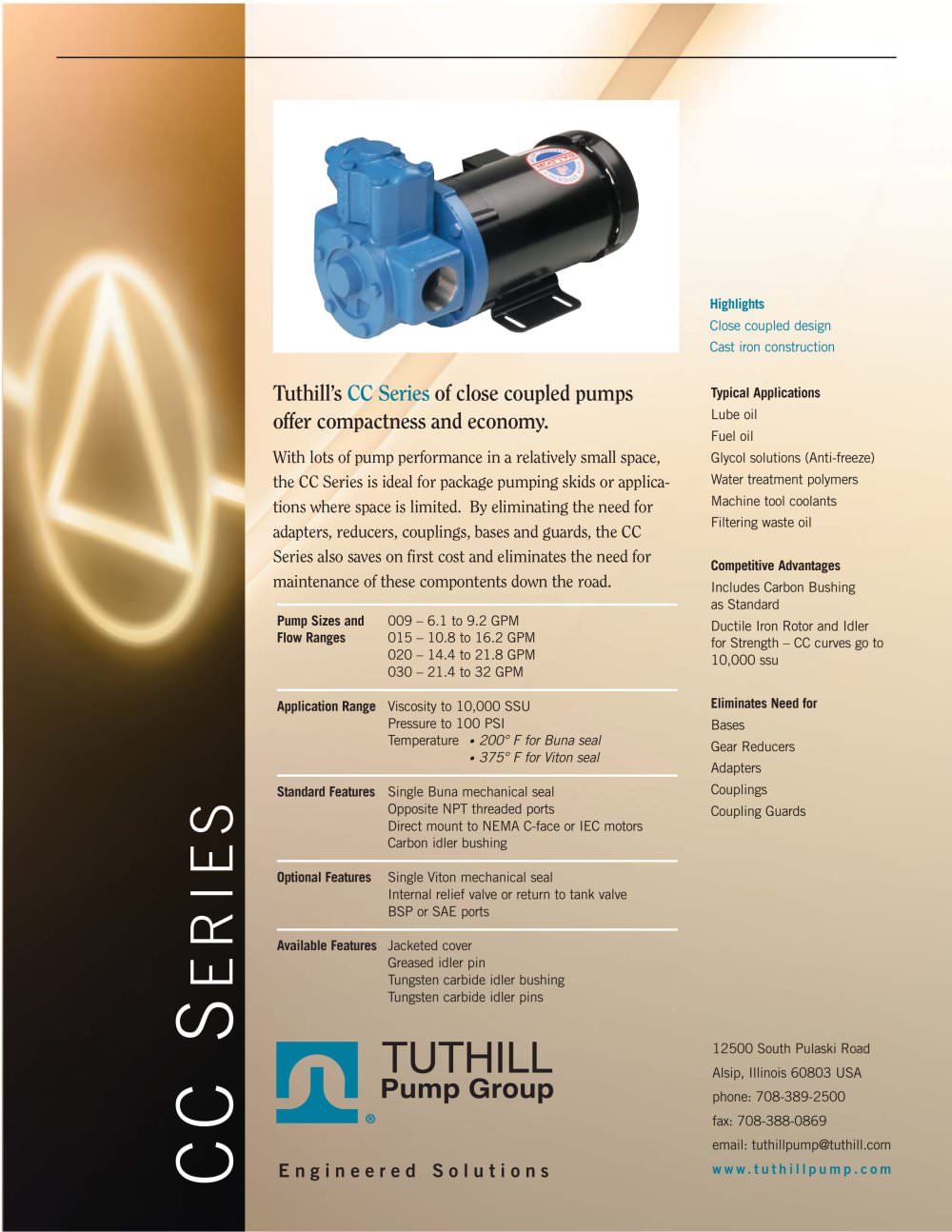

Highlights Close coupled design Cast iron construction Tuthill’s CC Series of close coupled pumps offer compactness and economy. Typical Applications With lots of pump performance in a relatively small space, the CC Series is ideal for package pumping skids or applications where space is limited. By eliminating the need for adapters, reducers, couplings, bases and guards, the CC Series also saves on first cost and eliminates the need for maintenance of these compontents down the road. Glycol solutions (Anti-freeze) Pump Sizes and Flow Ranges Ductile Iron Rotor and Idler for Strength – CC curves go to 10,000 ssu 009 – 6.1 to 9.2 GPM 015 – 10.8 to 16.2 GPM 020 – 14.4 to 21.8 GPM 030 – 21.4 to 32 GPM Lube oil Fuel oil Water treatment polymers Machine tool coolants Filtering waste oil Competitive Advantages Includes Carbon Bushing as Standard CC SERIES Application Range Viscosity to 10,000 SSU Pressure to 100 PSI Temperature • 200° F for Buna seal • 375° F for Viton seal Eliminates Need for Standard Features Single Buna mechanical seal Opposite NPT threaded ports Direct mount to NEMA C-face or IEC motors Carbon idler bushing Couplings Optional Features Bases Gear Reducers Adapters Coupling Guards Single Viton mechanical seal Internal relief valve or return to tank valve BSP or SAE ports Available Features Jacketed cover Greased idler pin Tungsten carbide idler bushing Tungsten carbide idler pins 12500 South Pulaski Road Alsip, Illinois 60803 USA phone: 708-389-2500 fax: 708-388-0869 email: tuthillpump@tuthill.com Engineered Solutions w w w. t u t h i l l p u m p . c o m
