1000 Series Lubrication Pumps

1000 Series Lubrication Pumps
6Pages

Catalog excerpts

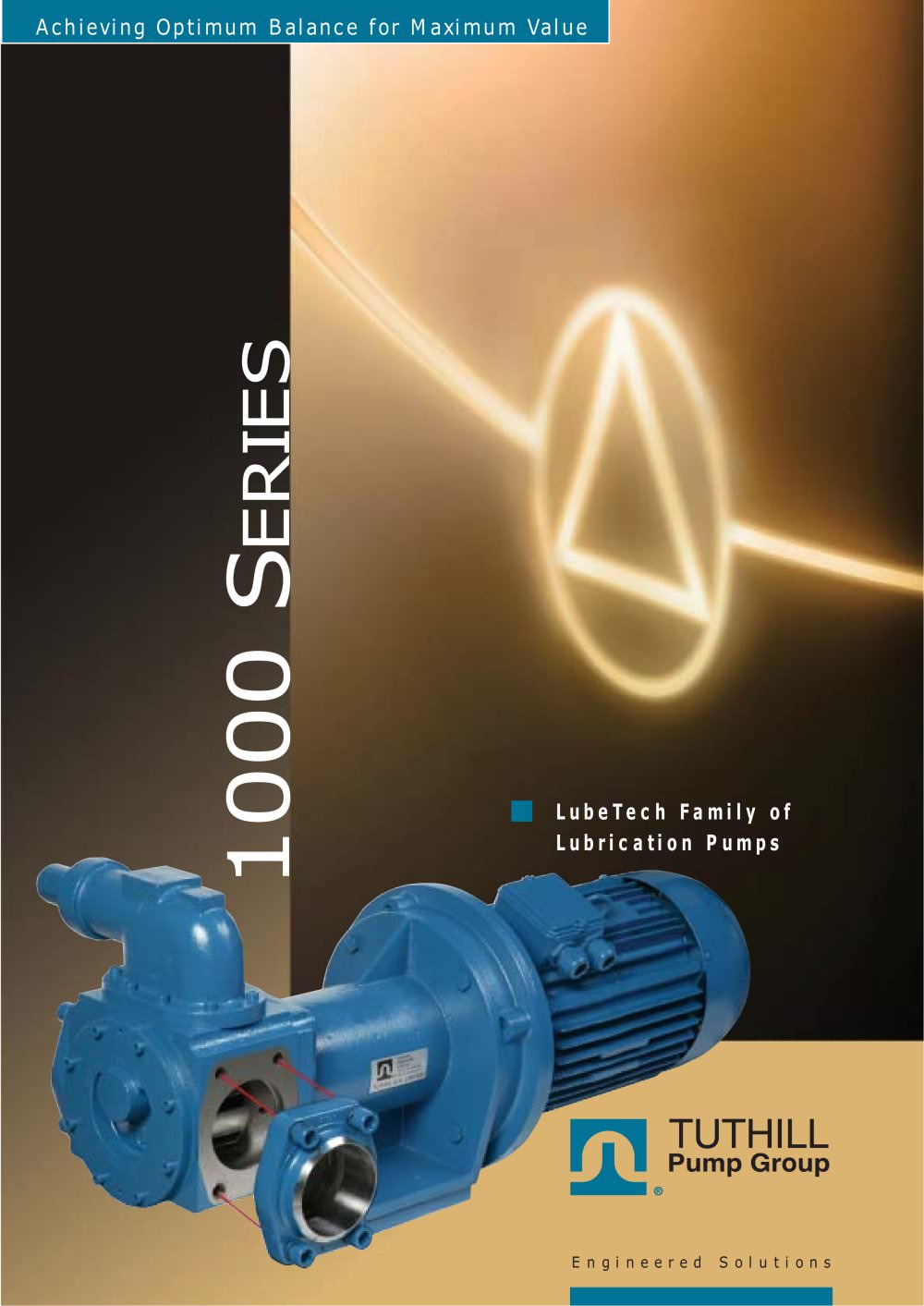

1000 SERIES Achieving Optimum Balance for Maximum Value L u b e Te c h F a m i l y o f Lubrication Pumps Engineered Solutions

Open the catalog to page 1

Our manufacturing expertise and knowledge of applications enable us to not only provide you with an engineered solution, but we ensure your satisfaction with post-sales service. We pride ourselves on properly servicing you with specification, installation, operation and troubleshooting. The pump was originally designed to meet and exceed the exacting requirements of the refrigeration compressor market. The design has so many inherent features and benefits that our traditional customers are also seeing the advantages. The excellent performance of the 1000 series pumps are solving problems in...

Open the catalog to page 2

1000 Series Mounting 1000 series pumps can be coupled to either IEC or NEMA standard motors via an aluminium adaptor. Models 1008-1022 are usually supplied fitted to C face motors, however the 1024 pump is too heavy to fit on a C face motor so we supply this model on an adaptor which utilises a D flange motor. The 1020 & 1022 will also fit on this D flange adaptor. All pumps are designed to be suitable for vertical mounting with the pump facing down. This is usually a requirement in the refrigeration industry. It is recommended that if the pumps are to be mounted in this manner, it is...

Open the catalog to page 3

1000 Series Porting The pumps are fitted with SAE/DIN flanged ports which enable Tuthill to offer various port options. We have the ability to build your pump with threaded, butt weld or socket weld ports or a blank flange. The blank flange can be tapped to your specific requirement. Butt weld Socket weld Threaded 1000 Series Relief Valves All pumps can be fitted with safety relief valves which can be configured for either a ‘return to tank’ or ‘return to suction’ feature. The valve caps have either an O ring seal (integrated relief valve), or PTFE or fibre gaskets (bolt-on relief valve...

Open the catalog to page 4

Assembly 1012-1017 1 Cover 5 Bearing 9 Seal Housing 2 “O” Ring 6 Mechanical Seal 10 Gasket 3 Idler Gear 7 Bearing 11 Gasket 4 Body 8 Rotor 12 Idler Pin

Open the catalog to page 5

Tuthill Pump Group UK Birkdale Close, Manners Industrial Estate Ilkeston, Derbyshire DE7 8YA Tel: +44 (0)115 932 5226 Fax: +44(0)115 932 4816 email: tuthillpumpuk@tuthill.com Tuthill Pump Group USA 12500 South Pulaski Road, Alsip, Illinois 30803 USA Tel: 708 389-2500 Fax: 708 388-0869 email: tuthillpump@tuthill.com Tuthill Pump Group 5143 Port Chicago Highway, Concord, California 94520 USA Tel: 925 676-8000 Fax: 925 676-8151 Tuthill Europe Parc Industriel Wavre Nord Avenue Vésale, 30-1300, Wavre - Belgium Tel: 32 10 22 83 34 Fax: 32 10 22 83 38 email: tld@tuthill.com Tuthill Pump Group...
