Custom Threaded Inline

Product catalog summary

Overview
The HT Threaded Inline Heaters are designed for high-temperature applications, capable of reaching temperatures up to 1652°F (900°C). They are suitable for demanding environments such as fuel cell operations, R&D labs, automotive, and aerospace testing.

Product Specifications

Maximum Static Pressure: 100 PSI (10 BAR) for Style A, 45 PSI (3 BAR) for Style B.
Maximum Inlet Air Temperature: 1000°F (538°C) for Style A, 120°F (50°C) for Style B.
Maximum Exit Air Temperature: 1652°F (900°C).
Minimum Air Flow for Best Control: 3 SCFM (85 SLPM).

Style A Threaded In-line

Part No.: F076619
Max Exit Temperature: 1652°F (900°C)
Max Inlet Temperature: 1000°F (538°C)
Max Static Pressure: 100 PSI (7 Bar)
Inlet/Exit Fitting: 1.25” MNPT (Male) thread
TC Probe: Included, Duplex “K” Type 1/8” Dia.
Overall Length: 22” (559mm)
Material: 316 Stainless Steel

Style B Threaded In-line

Part No.: F076525
Max Exit Temperature: 1652°F (900°C)
Max Inlet Temperature: 120°F (50°C)
Max Static Pressure: 45 PSI (3 Bar)
Inlet Fitting: 1.25” FNPT (Female) thread
Exit Fitting: 1.25” MNPT (Male) thread
TC Probe: Not included, customer supplied
Overall Length: 20” (508mm)
Material: 316 Stainless Steel

Performance and Usage
Both styles are designed for use with air or inert gases only, with an average pressure drop of 1.6 PSI at 900°C and 10 SCFM. The heaters are equipped with internal 'K' T/C sensors for temperature measurement, and operating above 1400°F (760°C) with the supplied sensor will void the warranty.

Contact Information
TUTCO Heating Solutions Group, 500 Gould Drive, Cookeville, TN 38506. Visit www.tutcosureheat.com for more information.

Catalog excerpts

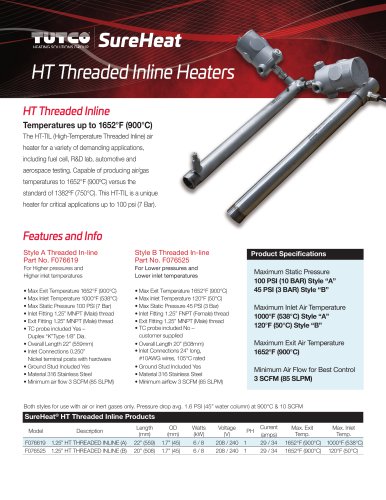

The HT-TIL (High-Temperature Threaded Inline) air heater for a variety of demanding applications, including fuel cell, R&D lab, automotive and aerospace testing. Capable of producing air/gas temperatures to 1652°F (9000C) versus the standard of 1382°F (750°C). This HT-TIL is a unique heater for critical applications up to 100 psi (7 Bar). Style A Thread ed In-line Part No. F076619 For Higher pressures and Higher inlet temperatures • Inlet Fitting 1.25” MNPT (Male) thread • Exit Fitting 1.25” MNPT (Male) thread • TC probe included Yes -Duplex “K”Type 1/8” Dia. Nickel terminal posts with hardware • Ground Stud Included Yes • Material 316 Stainless Steel • Minimum air flow 3 SCFM (85 SLPM) Style B Threaded In-line Part No. F076525 For Lower pressures and Lower inlet temperatures • Inlet Fitting 1.25” FNPT (Female) thread • Exit Fitting 1.25” MNPT (Male) thread • TC probe included No -customer supplied • Inlet Connections 24” long, • Ground Stud Included Yes • Material 316 Stainless Steel • Minimum airflow 3 SCFM (85 SLPM) Maximum Static Pressure100 PSI (10 BAR) Style “A”45 PSI (3 BAR) Style “B”Maximum Inlet Air Temperature1000°F (538°C) Style “A”120°F (50°C) Style “B”Maximum Exit Air Temperature1652°F (900°C)Minimum Air Flow for Best Control3 SCFM (85 SLPM) Both styles for use with air or inert gases only. Pressure drop avg. 1.6 PSI (45” water column) at 900°C & 10 SCFM Model Description F076619 1.25” HT THREADED INLINE (A) F076525 1.25” HT THREADED INLINE (B) Watts Voltage ph Current Max. Exit Max. Inlet (kW)_(V)_(amps) Temp._Temp.

Open the catalog to page 1

Both styles for use with air or inert gases only Pressure drop avg. 1.6 PSI (45” water column) at 900°C & 10 SCFM HT Threaded Inline Heaters Performance Curves Performance Chart • Temperatures are measured by internal ‘K’ T/C sensors. Use of other sensor types and / or locations can result in heater damage. • Minimum airﬂ ow for accurate control is 3 SCFM (85 SLPM) • Maximum air temperature is 1400°F (760°C) with supplied “K” T/C. Operating above this curve will void the product warranty. 129 Portsmouth Avenue Exeter, NH 03833 USA Tel: 603-418-7662 Fax: 603-778-4554 Specifications subject to...

Open the catalog to page 2
