MZF-T06

MZF-T06
1 / 1 PageView full catalog

MZF-T06

Product catalog summary
Technical Specifications
  • Flowrate: 1 to 30 LPM
  • Medium: Oil and Emulsion
  • PH Range: 6.5 to 9.5
  • Temperature: Up to 60°C
  • Quality of Cleanliness: Down to 5 µm
  • Material: Housing made of Steel/Stainless Steel, Rotor made of Aluminium
  • Rotor Capacity: 5.2 dm³
  • Sludge Volume: 2 to 3 kg
  • Type of Cleaning: 2 phase
  • Rotor Speed: 2850 RPM at 50 Hz, 3400 RPM at 60 Hz
  • Separating Factor: 900 g to 1180 g
  • Noise Emission: Less than 70 dBa
  • Drive: Directdrive with 0.8 kW power
  • Solids Discharge: Manual
  • Liquid Return: In free descent
  • Control Panel: Included
  • Inlet Dimension: Greater than 585 mm
  • Overall Dimensions: 640 x 450 x 585 mm
  • Weight: Greater than 75 kg
Options
  • Clean Liquid Tank
  • Pumps
  • Chiller
See more

Catalog excerpts

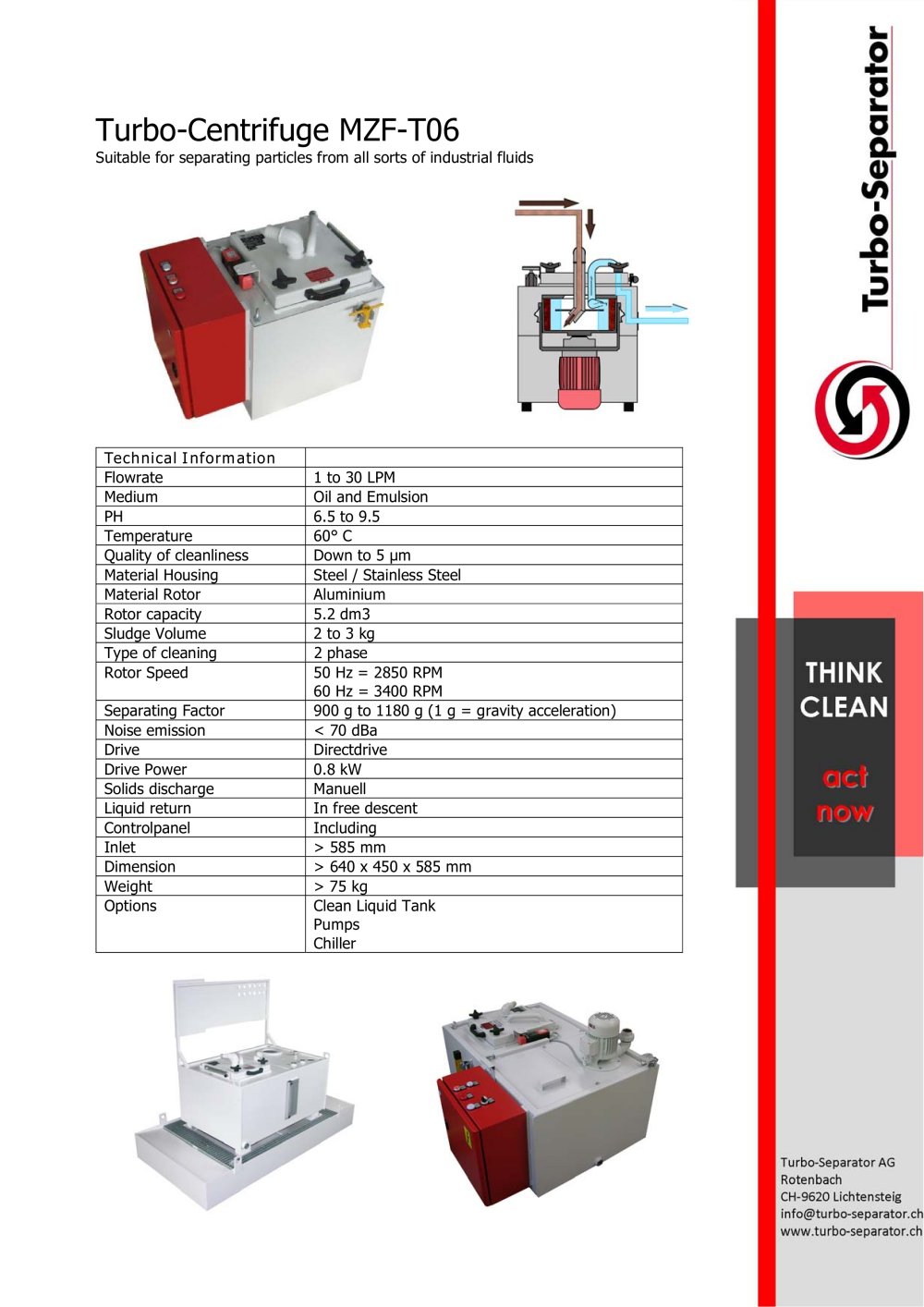

MZF-T06-1

Turbo-Centrifuge MZF-T06 Suitable for separating particles from all sorts of industrial fluids Technical Information Flowrate Medium PH Temperature Quality of cleanliness Material Housing Material Rotor Rotor capacity Sludge Volume Type of cleaning Rotor Speed Separating Factor Noise emission Drive Drive Power Solids discharge Liquid return Controlpanel Inlet Dimension Weight Options 1 to 30 LPM Oil and Emulsion 6.5 to 9.5 60° C Down to 5 µm Steel / Stainless Steel Aluminium 5.2 dm3 2 to 3 kg 2 phase 50 Hz = 2850 RPM 60 Hz = 3400 RPM 900 g to 1180 g (1 g = gravity acceleration) < 70 dBa Directdrive 0.8 kW Manuell In free descent Including > 585 mm > 640 x 450 x 585 mm > 75 kg Clean Liquid Tank Pumps Chiller

 Open the catalog to page 1
