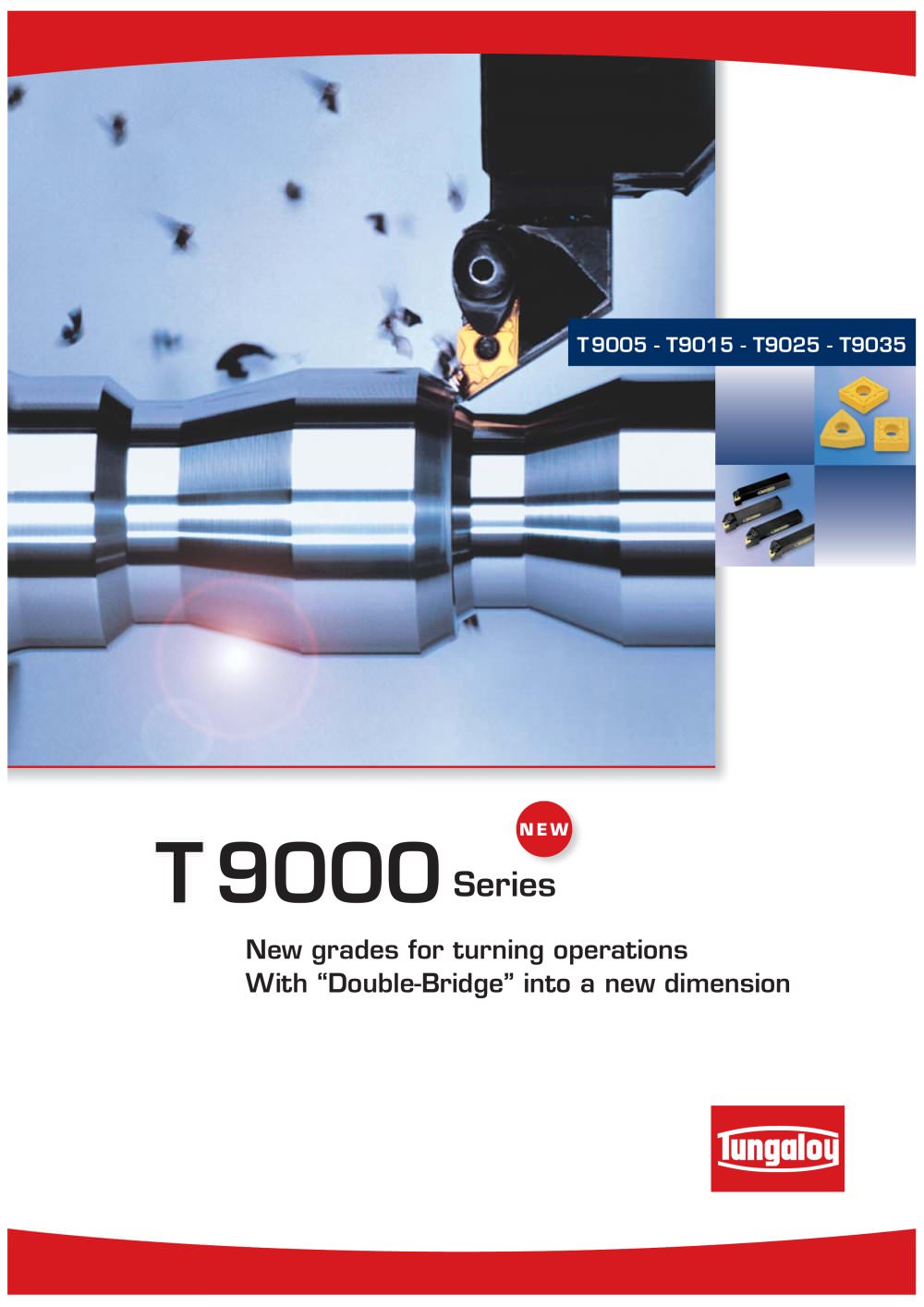

New grades for turning operations With Double-BridgeӔ into a new dimension >

To meet the continuously growingdemands of modern tool concepts as to economic efficiency and productivity, Tungaloy designed the new T9000 series. The result of our intensive research and development is a modern cutting grade series, which stands for increased tool lifeat higher cutting speeds in machiningoperations of steel. Compared to traditio- nal cutting materials, the new MT-CVD coated substrate has a unique design of each single coating layer. The patented new Double-BridgeӔ coating technology stands for extremely increased adhesion of each single layer. Thus thicker coatings can be...

Open the catalog to page 2

Work materials Mild steels ApplicationChipbreakerShapeCuttingdepthap (mm)Feedf (mm/rev) T9005T9015T9025T9035 >

Open the catalog to page 4

External and face turning Face turning at interrupted cut Work material:20NiCrMo2 Toolholder: ACLNR2525M12 Insert: CNMG120408-TM Grade: T9025 Machine:N/C machine Cutting speed:Vc = 180 m/minFeed: f = 0.3 mm/rev Cutting depth:ap= 2.0 mmCoolant:Emulsion External and face turning at interrupted cut Work material:20CrMo5 Toolholder: DWLNR2525M08 Insert: WNMG080412-TM Grade: T9025 Machine:N/C machine Cutting speed:Vc = 200 m/minFeed: f = 0.3 bis 0.4 mm/rev Cutting depth:ap= 2 bis 3 mmCoolant:Emulsion Work material:USt42-2 Toolholder: PTFNR2525M3 Insert: TNMG160408-TMGrade: T9025Machine:N/C...

Open the catalog to page 19
