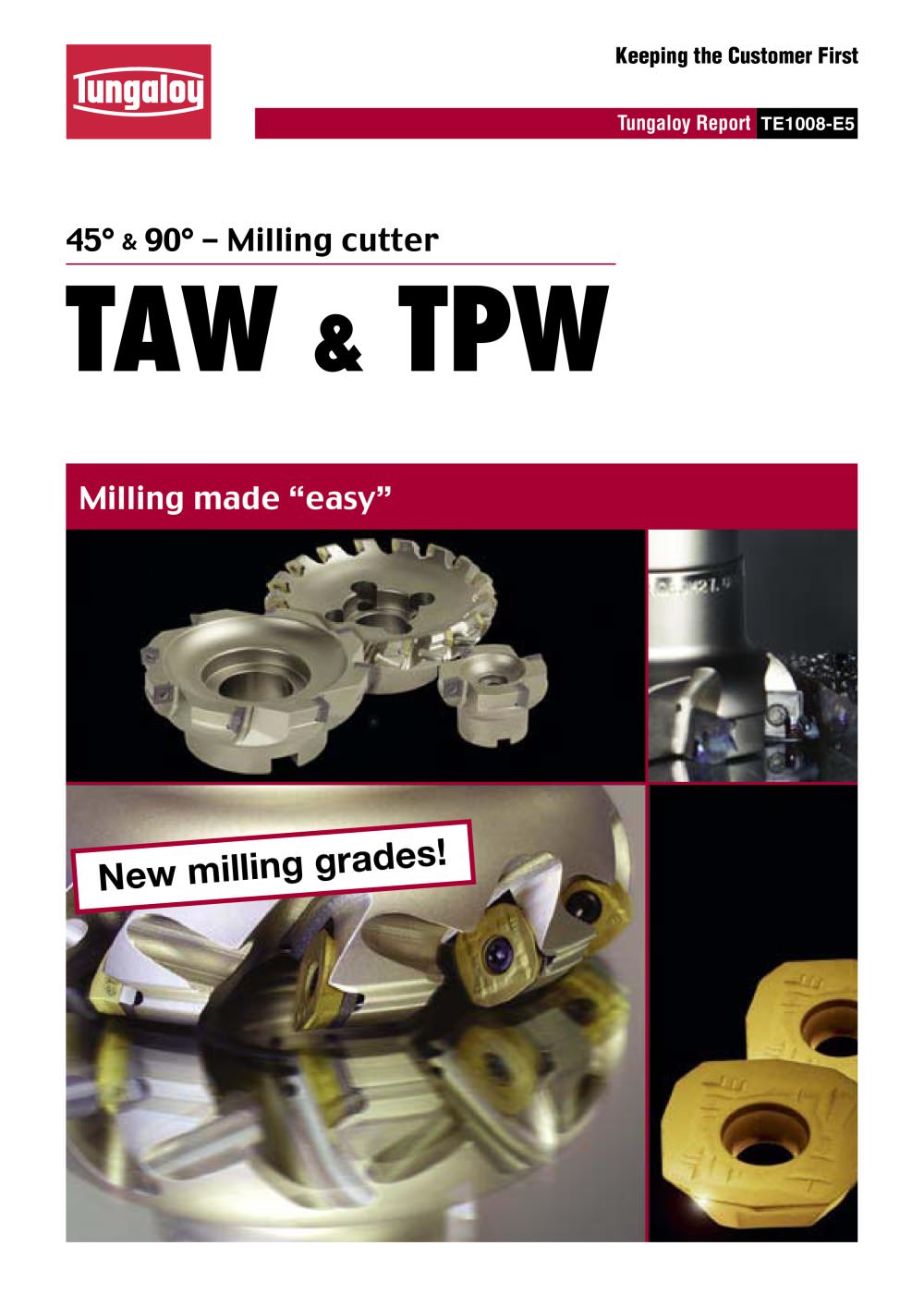

45° & 90° Milling cutter
12Pages

Keeping the Customer First Tungaloy Report TE1008-E5 45 > & 90а - Milling cutter > Milling made easyӔ >

With the newly developed tool system forface and square shoulder milling Tungaloy strikes out in a new direction in precision and design. This modern tool concept convinces in various application fields and enables productive and flexible utilisation on all different machining centres. Due to two different versions (standard pitch and close pitch type) this tool system offers optimal adaptation to a great variety ofworking materials. All tools dispose of an inner coolant system directed precisely oneach insert. Thanks to the highly positive rake angle and the application oriented...

Specifications Wiper edge (Standard) W1:2.0 ~ 2.3 mm Wiping flat (Wiper) W2:7.8 mmExcess length:0.12 mmWiper:R500 0.12 mmW2W1 First recommendation for excellentsurface qualities at high feed rates for the machining of steels, stainlesssteels, cast iron materials and alumi-nium alloys. As a rule the application of one wiper insert is sufficient. >

-Coated fine grain carbide for milling of steels, alloy steels and cast irons- The TiAlN-PVD coating provides for application in medium to high cutting speed operations. -High toughness for medium finishing and roughing of stainless steels at low cutting speeds - MT-CVD coated grade for general milling operations of cast irons at medium cutting speeds - High wear-resistance and toughness- Uncoated Cermet with extreme wear-resistance and well balanced tough- ness - For universal application in milling operations of steel and cast iron materials at medium cutting speeds - Best surface quality...

Face millingMilling cutter: > Insert: SWMT13T3AFPR-HJ Grade: AH120 Work material: C45 (1.0503) Machine: Milling machine Cutting speed: V > c =250m/min No. of revolutions: n=800rpm Feed: V > f =4000mm/min Feed per tooth: f > t =0.5mm/t Cutting depth: a > p =2.0mm Cutting width: a > e =80mm > Face millingMilling cutter: TAW13R080M27.0E08( 80, t = 8) Insert: SWMT13T3AFPR-HJ Grade: AH130 Work material: X2CrNiMo17-13-2(1.4404) Machine: Milling machine Cutting speed: V > c =180m/min No. of revolutions: n=716rpm Feed: V > f =2577mm/min Feed per tooth: f > t =0.45mm/t > Cutting width: a > e =52mm...
